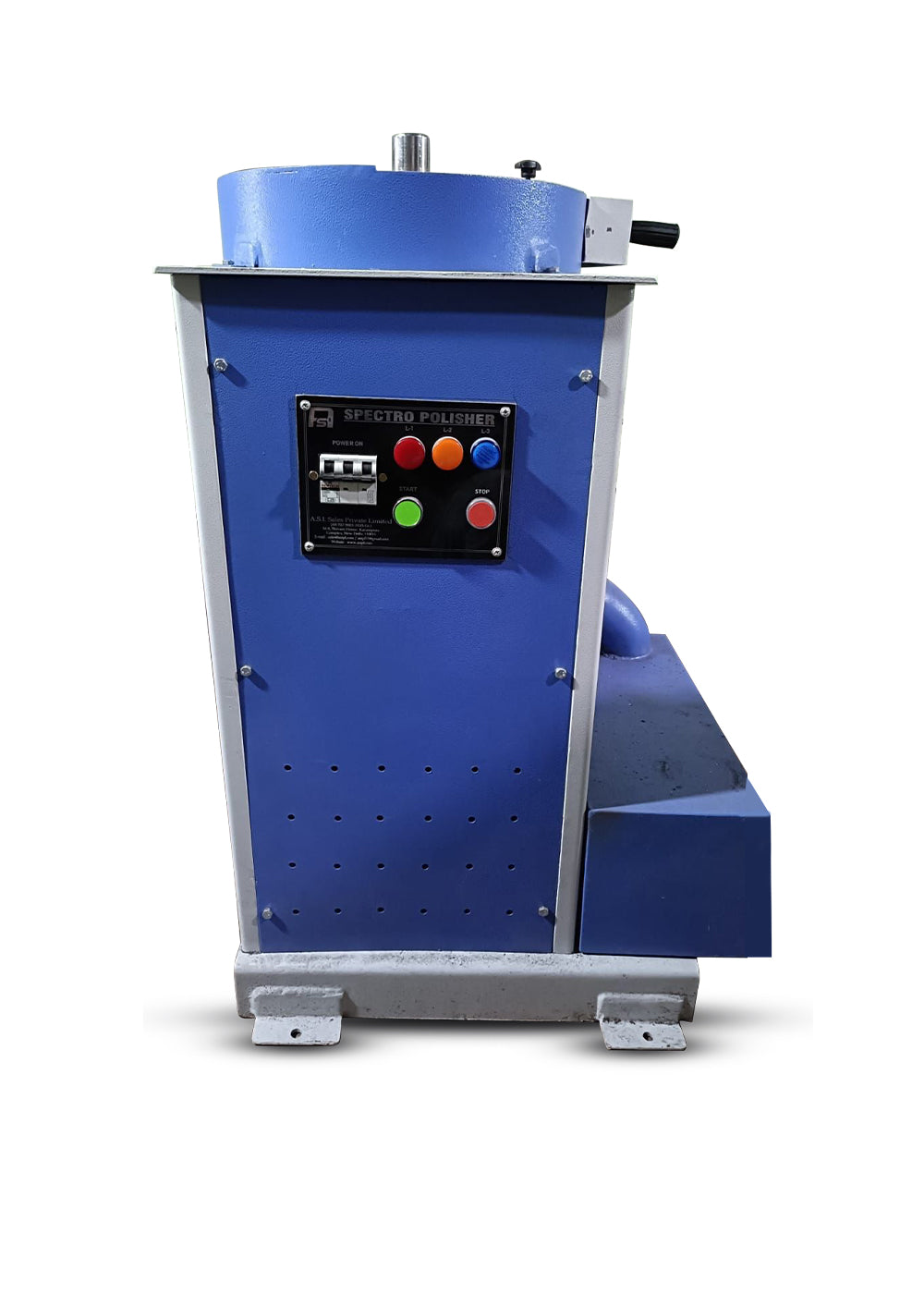

ASI Spectro Sample Polisher

This Spectro Sample Polishing Machine is Used for Flat, coarse grinding and is ideal for surface preparation for emission spectrometers.

Features:

• The Machine Consists of a heavy-duty frame. • Abrasive Polishing Paper Mounted on a polishing disc is used to Polish the samples. • Rotating Disc with vacuum-clamped abrasive disc • Abrasive Paper Disc (355 MM Diameter, 40 MM Bore), 40, 40,60 & 80 Grit • Vacuum Abrasive Paper Disc Clamping • Dynamically Balanced Disc • Quick Paper Change (Single Bolt) • Compact In Size & Floor Model

Technical Specification:

• Disc Diameter: 355 MM • Disc Bore: 40 MM • Single Speed: 2800 RPM (Variable Speed Also Available on Extra Cost) • Disc Motor: 2 HP, 2800 Rpm, 50 Hz, 440 V AC Supply • Vacuum Suction Motor: 1 HP, 2800 Rpm, 440 V Ac • Machine Size “LXWXH”: 710X710X1010 mm • Weight: 150 kg
