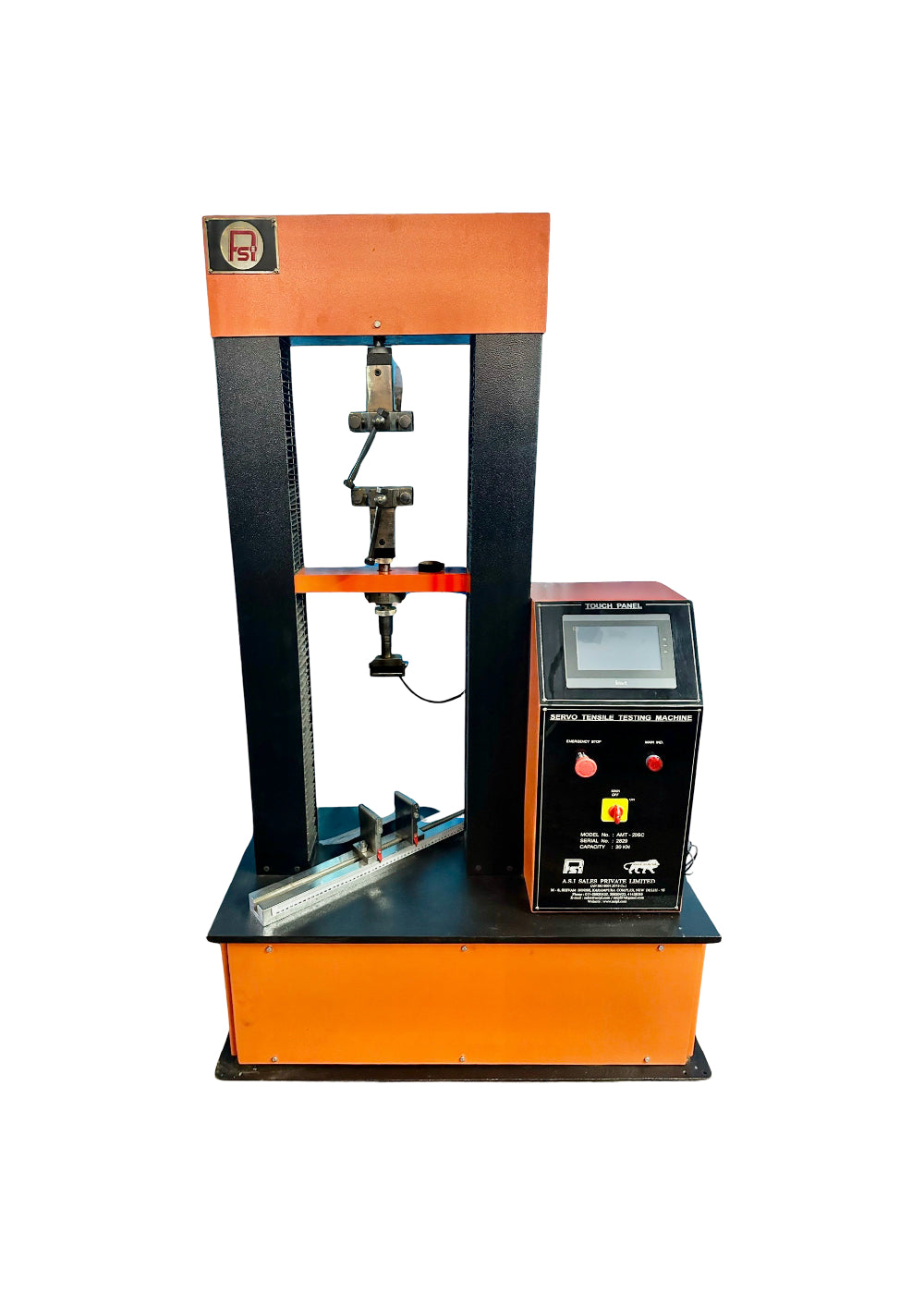

| Particular | Specification |
|---|---|
| Load capacity | 50 KN (50000N) |
| No. of load cell | One |
| Operation mode | Automatic and computerised with data kept in computer |
| Cross Travel | 950 mm |
| Crosshead resolution mm | 0.001 mm |
| Speed | Variable between 1 mm/minute to 500 mm/minute through Ball Screw and touch screen panel |
| Measuring Range | 0–50 KN |
| Least count | 0.01 KN |
| Vertical space mm | 1500 mm |
| Speed accuracy | 0.1% to 1% under stable condition |
| Speed at full load mm/min | 500 mm |
| Overall height mm | 1585 mm |
| Overall Width mm | 760 mm |
| Overall depth mm | 505 mm |
| Machine configuration | Floor standing |
| Number of columns | 2 |
| Power | 230 volts, 50Hz. Single phase |
| Accessories | i7 12th Gen PC with 8GB RAM and 512GB SSD and compatible laser printer with online UPS of 2KVA with 30 minutes minimum backup |
| Grips | For various specimen shapes like flat, circular etc. |
| Testing material | Metal, rope, wire, cable, textiles, rubber, plastic etc. |
| Note: All results such as Peak load, Elongation at Peak load, Break load, Elongation at Break load, % of elongation at Peak, % of elongation at Break, Tensile test at Peak, Tensile test at Break, Flexural stress, Compression Strength and any other test as per customer requirement can be added on our existing software. | |
| Result display | Touch Screen as well as through PC |
| Position control | Highly accurate position control with high range of Speed |
| Result calculation | Automatic calculation of results Selectable |
| Display units | Kg, Pound, Newton, mm, cm — inch selectable |
| Overload protection | Safety norms of overload in auto/manual mode |
| Calibration | Data lock for calibration |
| Material compatibility | Suitable for checking all types of material as per customer requirement |
|
Additional Note: Speed can be controlled through servo motor/servo drive. Variable speed is provided from 1 mm/min to 500 mm/minute via touch screen panel. Enter desired speed on panel (e.g., 1 mm/min or 500 mm/min) and the machine will operate accordingly. Accuracy of the machine should be within its tolerance limit of ±1%. Machine has TFT Touch Screen display unit/computerized interface showing Load, Elongation, Maximum Load, and Breaking Load. |
|
