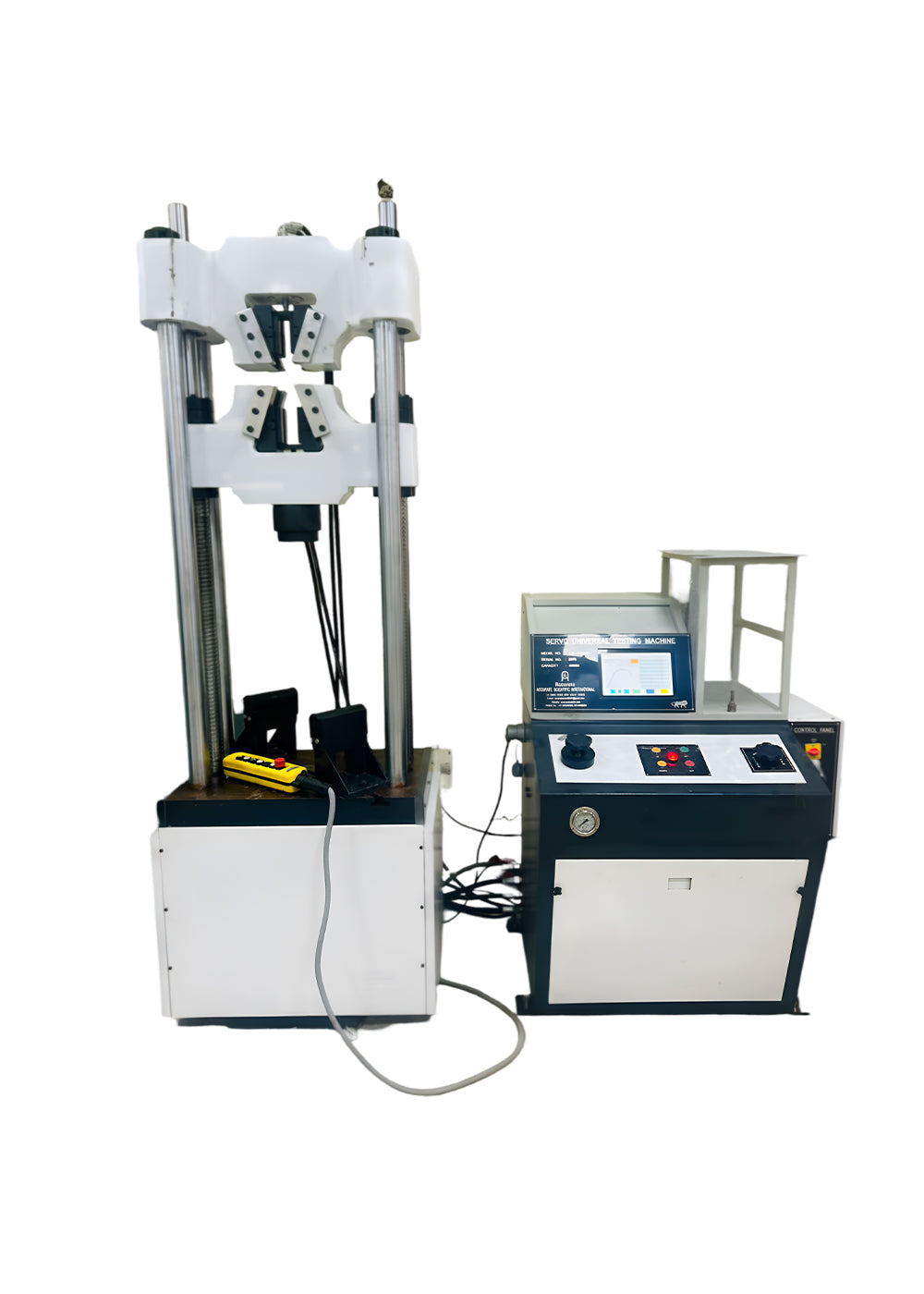

ASI Servo Control Computerized Universal Testing Machine Capacity-1000 KN 6 Pillar Type AMT-100SC

Product Overview

The ASI AMT-100SC is a high-capacity, servo-controlled universal testing machine designed for precise testing of ferrous and non-ferrous materials. With a robust 6-pillar construction and advanced touchscreen interface, it supports a wide range of mechanical tests with exceptional accuracy.

Key Features

• High Load Capacity: Supports up to 1000 kN with a least count of 0.01 kN and ±1% accuracy, ideal for tension, compression, bending, shear, and hardness tests.
• Servo-Controlled System: Features a servo-hydraulic loading mechanism with multiple control modes (manual, load rate, elongation rate, load hold) for versatile testing.
• Robust Design: 6-pillar frame with 700 mm column distance, chrome-plated columns, and a double-acting piston with 250 mm stroke for durability and precision.
• Advanced Software: Windows-compatible software with real-time data display, customizable reports, and data export in PDF, Excel, and CSV formats.
• Precision Grips: Hydraulic wedge-action grips (optional) for rods (10–75 mm) and flats (5–60 mm thick, up to 90 mm wide), ensuring secure sample holding.
• Safety Features: Includes emergency stop switches, overload/overtravel limiters, and a fully enclosed pressure transducer for secure operation.

Applications

Ideal for testing metals, composites, and construction materials in industries like aerospace, automotive, and civil engineering, the AMT-100SC supports quality control and research with tests like pull-out, double shear, and 180° bend.
