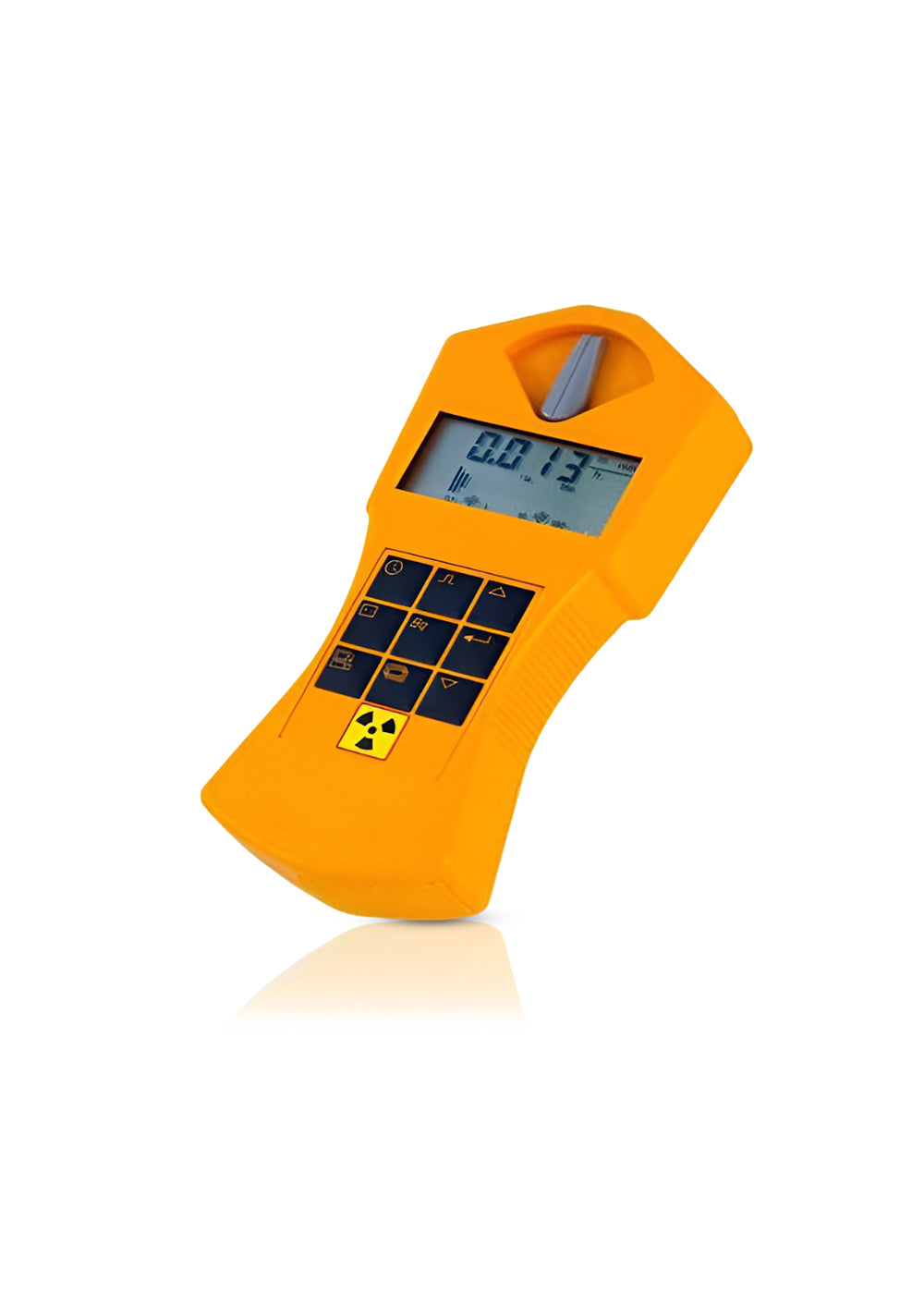

ASI Radiation Survey Meter For Alpha, Beta, Gamma & X-RAYS, ASI-SM230

ASI Radiation Survey Meter For Alpha, Beta, Gamma & X-RAYS, ASI-SM230

Product Overview

The ASI-SM230 is a professional, precise radiation survey meter designed to measure Alpha, Beta, Gamma, and X-Ray radioactivity easily and reliably. With a wide measuring range and certified accuracy, it is ideal for environmental monitoring, safety inspections, and quality control in various industries.

Applications

Suitable for residual radioactivity checks in scrap metal and components at foundries, steel plants, and NDT labs; pre-shipment inspections; import controls; background radiation monitoring in hospitals, research institutes, universities, embassies, and security forces; nuclear power stations; irradiated food measurement; natural radiation near seas; and building/scrap material control.

Read more

View full details
Technical Specifications

Technical Specifications

Specification Details
Display Liquid Crystal Display (LCD), 4 digit, numeric with dimension, quasi-analog logarithmic with bar chart, operating mode indicators.
Measuring Principle / Radiation Detector Geiger-Muller Counting Tube, Auto Shut-off, Stainless Steel Case with Halogen Filler
- Measurement Length = 38.1mm
- Measurement Diameter = 9.1mm
- Window = 1.5 - 2.5 mg/m²
Radiation Type - Alpha Radiation from 4 MeV
- Beta Radiation from 0.2 MeV
- Gamma Radiation from 30 KeV
Alpha + Beta + Gamma (Without Shielding)
Beta + Gamma - Al Foil Approx. 0.1mm shields off alpha completely
Gamma - Al Foil Shielding approx. 3mm, shields Alpha completely and Beta radiation to 2 MeV, weakens Gamma less than 7% (Cs-137).
Gamma Sensitivity 95.0 Impulses/min for Co60 radioisotope
Null Quota < 10 Impulses/minute
Calibrated Measurement Ranges 0.01 µSv/h – 1,000 µSv/h
Measurement of the Impulses 1-99 sec, 1-99 minutes, 1-99 hours. Mean value of the day (24 hours – 12am to 12am)
Internal saving of Impulses in Memory Selectable intervals: 1 min, 10 min, 1 hr, 1 day, 7 days
Memory 2 KB
Software & Data Cable Included in Delivery
Power for Instrument Internal Battery
Battery Life Under 10 µA on avg, > 117,000 hrs × 20 impulses/min (~10 years)
Housing of Instrument Impact Resistant Plastic
Dimensions 163mm (L) × 72mm (W) × 30mm (H)
Weight 153 gms
Certification With Delivery every instrument certified as per its serial number.
European Standard CE / USA Standard FCC15
