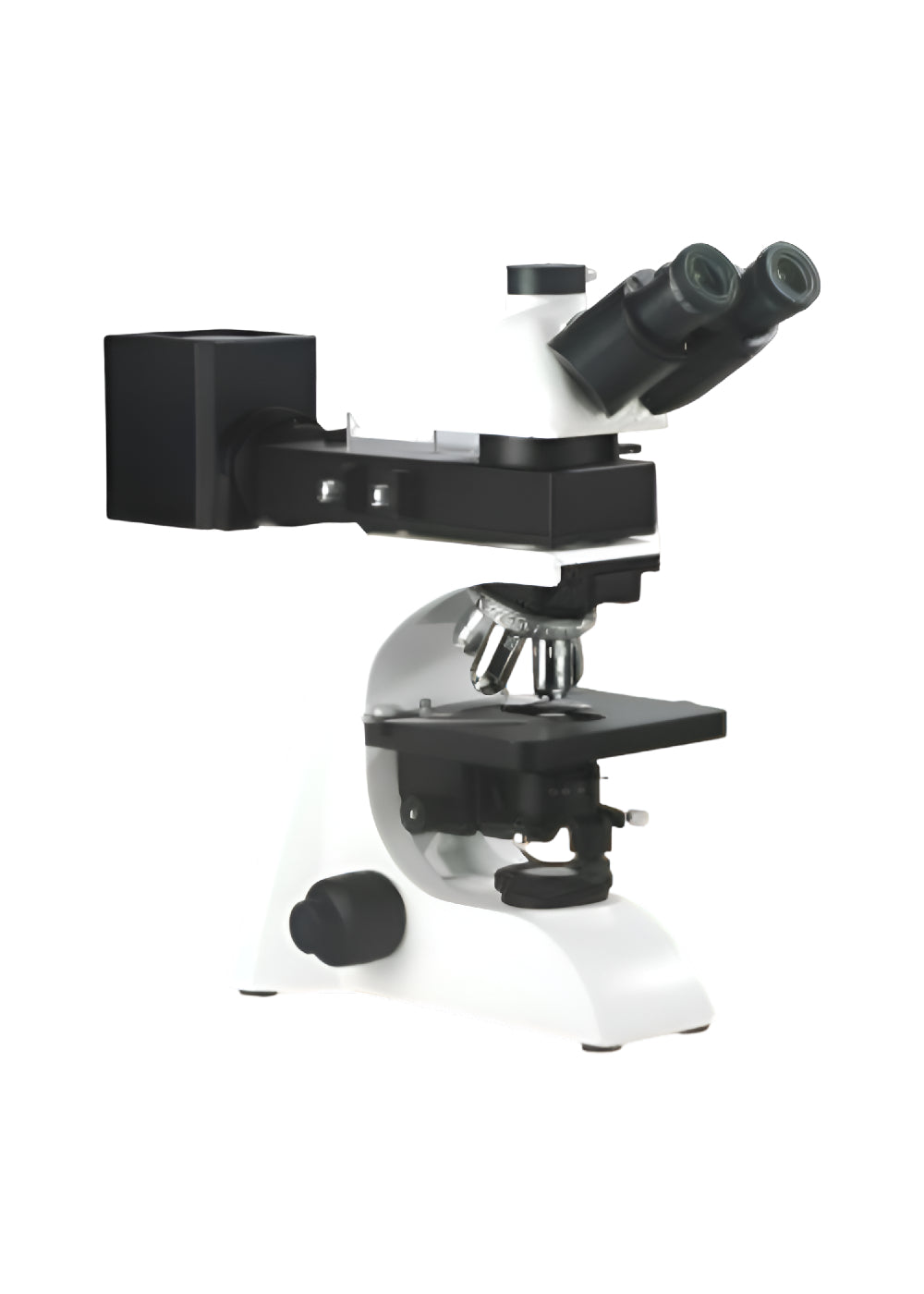

ASI MIT500 Series Upright Metallurgical Microscope

ASI MIT500 Series Upright Metallurgical Microscope

Application

  1. Long Working Distance Infinity Plan Objective (no cover glass).
  2. Magnification 50X,100X,200X,500X Available.
  3. Reflect Light 12V50W Halogen Lamp, Kohler lumination With Fild Diaphragm.
  4. Transmit Light, 6V20W Halogen Lamp,Kohler lumination With Field Diaphragm Center Adjustable.

Head: Trinocular Head With Switch Light Split Between E100:P0/E20:P80 The Eyepiece Tube Has Fix Screw To Prevent Eyepiece Faling Damage During Move Super Wide Field 10x22mm Eyepiece Dia.30mm Diopter Adjustable

MIT500 MIT500D Ilumination

A. Analyzer slider B. Ground glass slider

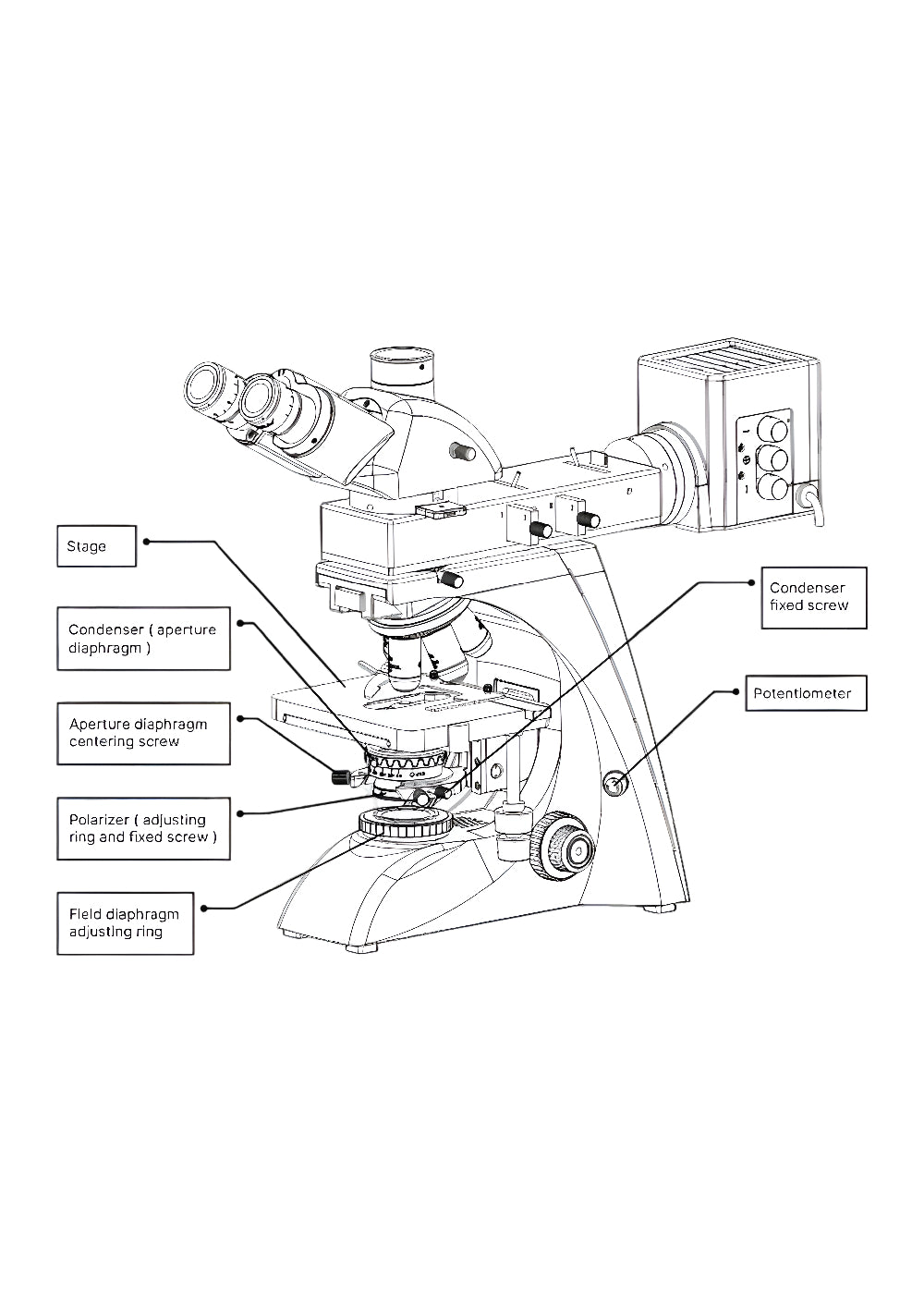

1. Polarizer slider 2. Filter slider 3. Field Diaphrgm 4. Aperture Diaphragm

MIT500 LED Ilumination
 1. Analyzer 2. Polarizer 3. Filter 4. ND filter 5.Ground Glass Slider

Nosepiece &Objective: High Precision Reserved Quadruple, Backward Nosepiece,Metalurgical LMPlanSemi-APO FLObjectives: 5x,10x,20x,50x; Optional 80x,100x

Working Stage: Three-layer Mechanical Stage Size 182×140mm. Travel Range 77×52mm, scale 0.1mm. Speedy Lifting function, Glass plate

Focus & Transmit Light: Coaxia lMoving Adjustment Knob For Stage, Coaxial Coarse & Fine Focusing System Built-in Transmitted Kohler Halogen I lumination 6V30W(LED option)

Read more
View Catalogue Get Latest Price

View full details
Microscope Table

Metallurgical Microscope Specification

Items Specification MIT500 MIT500D MIT500 LED Parts No.
Head Seidentopf Trinocular Head Inclined 30°, Rotatable 360°, Interpupillary Distance 48–76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm ● ● ● ST05
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable ● ● ● Epa10b
Eyepiece WF10x/22mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable ● ● ● EPra10b
Nosepiece Quintuple, Backward ● ● ● O-N01
Quadples (Specially for bright/dark field objectives M26x1/36") ● ● ● O-N924
Working Stage Stage size: 200mmx150mm, Travel range: 77mmx52mm ● ● ● O-S01+TY91-6+TY91-4
Coaxial Coarse And Fine Focusing Knobs, Travel Range: 25mm, Scale: 2µm ● ● ● -
Abbe N.A.1.25, with Iris Diaphragm ● ● ● C01d
