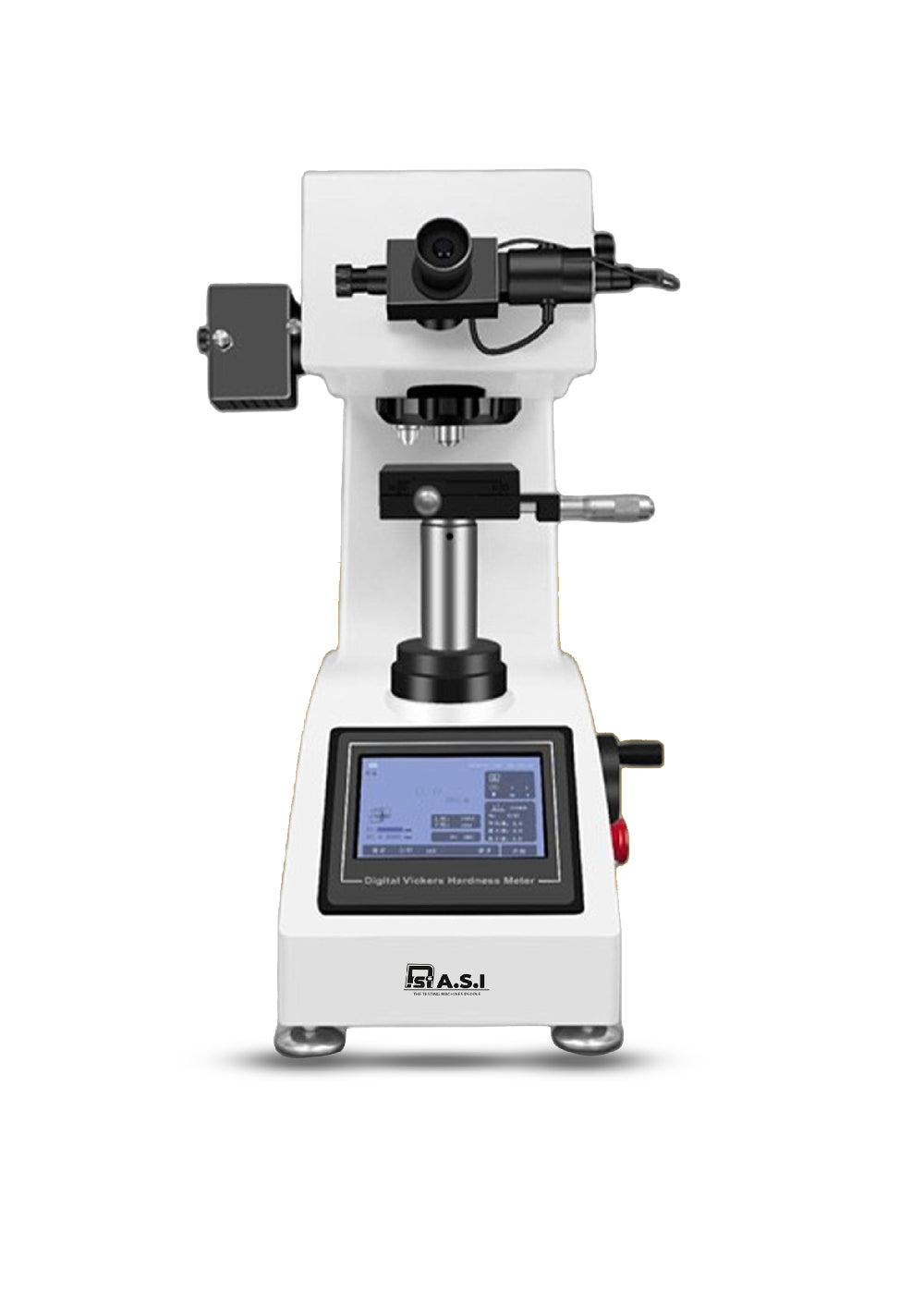

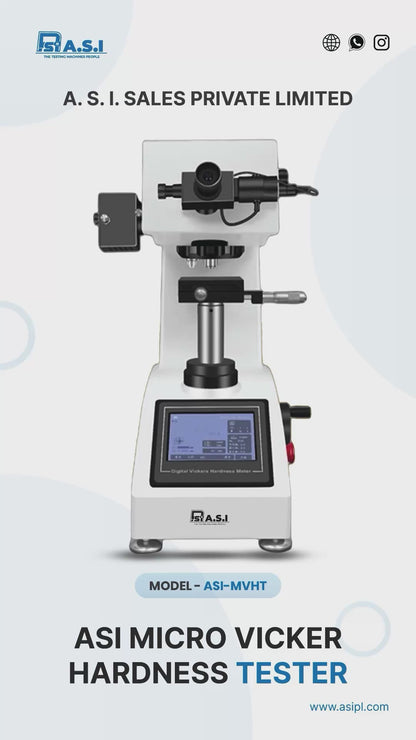

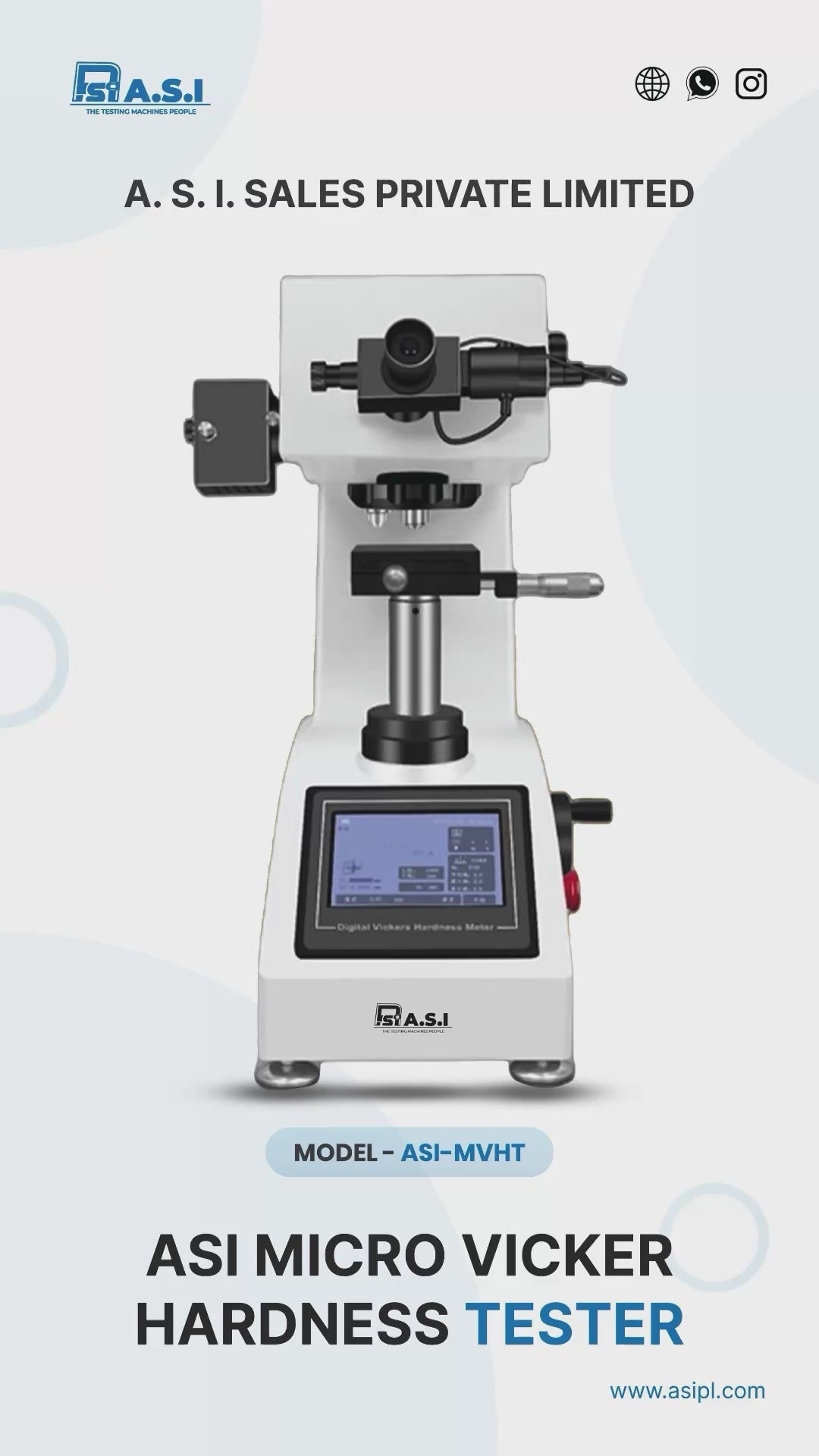

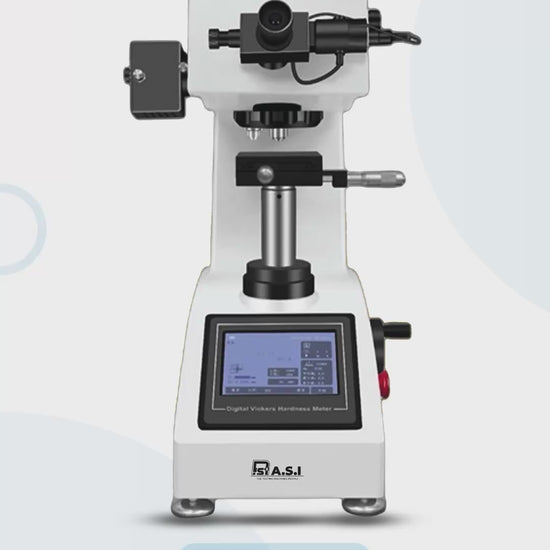

ASI Micro Vicker Hardness Tester - ASI-MVHT

Name: ASI Micro Vicker Hardness Tester - ASI-MVHT
Brand: asisales
SKU: ASI-MVHT
Availability: InStock

SPECIFICATION

1. One-time casting aluminum machine body with car painting technology, structure more stable and appearance more decent.
2. Digital 10X eyepiece with inbuilt encoder, click the encoder machine will automatic get indentation diagonal length data D1 & D2, no need manual input data into machine, greatly improved testing accuracy and working efficiency.
3. With large touch screen digital display, directly display hardness value, dwell time, conversion hardness value, etc.
4. Menu structure interface, easy operation.
5. With HV / HK test function (if need HK test function, optional purchase Knoop diamond indenter and standard Knoop hardness blocks).
6. With built-in printer, test result can be printed out directly.
7. With RS232 communication port, machine can upgrade to semi-automatic or fully automatic type easily if needed in future
8. Double optical path design. Reserved photo camera port, can add camera and work with hardness tester analysis and measuring software system (camera & software system for optional purchase).

View Catalogue Get Latest Price

View full details

Model Specification - ASI-MVHT
Model	ASI-MVHT
Turret	Automatic turret
Test force	10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N)
Hardness scale	HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Conversion Scale	HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HBS, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Hardness range	5–3000HV
Min. measuring unit	0.025μm (maximum resolution 0.01μm)
Data display	5.6” touch screen
Data output	built-in printer
Sample Height	Maximum sample height: 175mm, Throat depth: 125mm
X-Y Testing table	Dimension: 100×100mm, Max movement: 25×25mm
Force loading type	Automatic (Loading, Dwell, Unloading)
Magnification	Eyepiece: 10X electronic eyepiece with encoder; Objective: 10X (observation); 40X (measuring) Total: 100X (observation); 400X (measuring)
Duration time	1~60s
Power supply	AC220V±5%, 50–60Hz
Package size	680×470×750mm; Gross weight: 90kg
Standard	ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
Standard Packing List
Weight Shaft	1
Weights	6
X-Y Cross clamping testing table	1
Electronic eyepiece with encoder 10X	1
Flat clamping testing table	1
Thin Specimen Testing Table	1
Printer Paper	1
Level Adjustment screw	4
Micro Vickers hardness block	2
Objective 10X, 40X	1+1
Dust-proof cover	1
Screw driver	2
Power Cable	1
Fuse (2A)	2
Manual	1
Product Certificate	1
