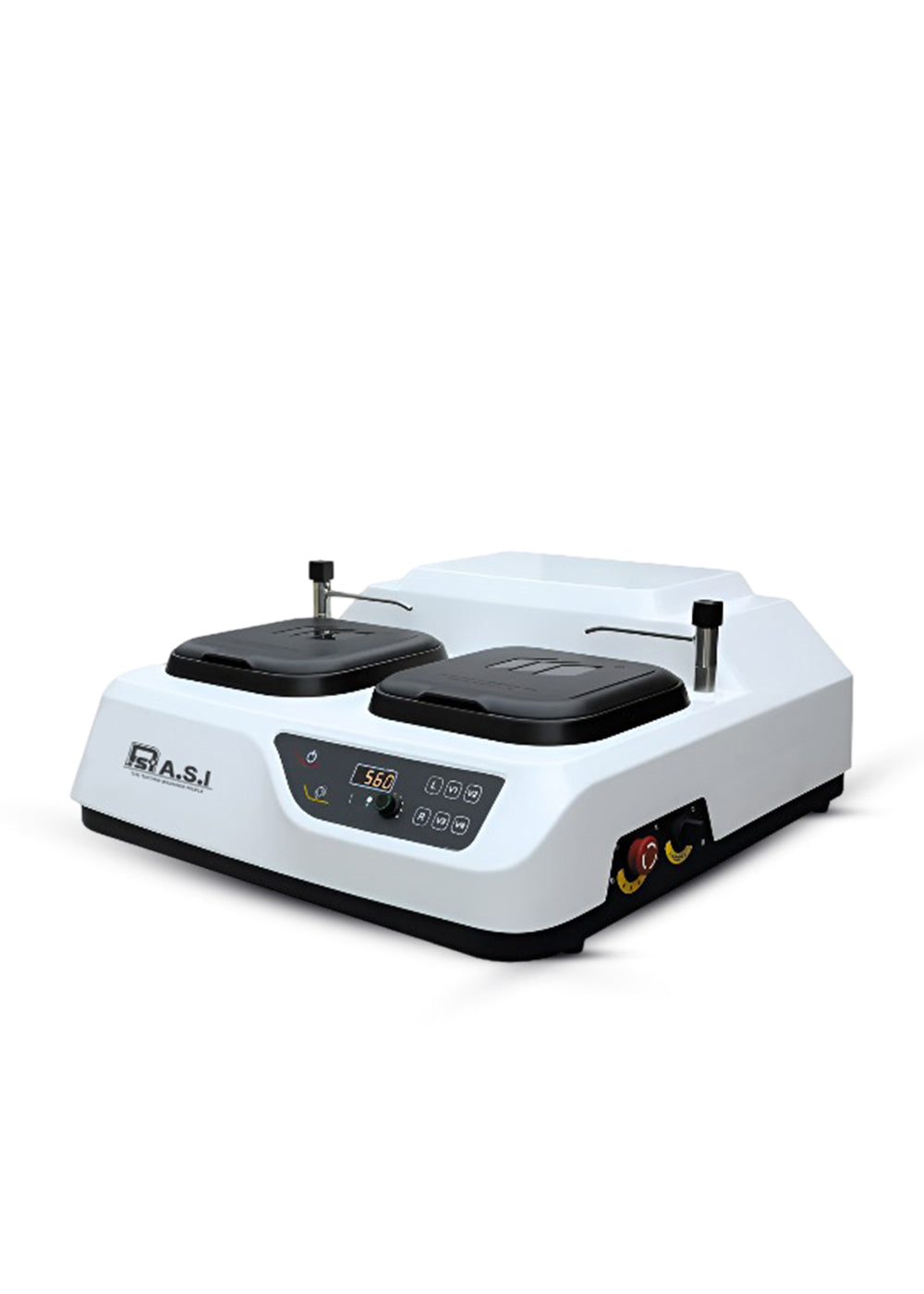

ASI Metallographic Grinding/Polishing Machine, ASI PM200DE/250DE

ASI Metallographic Grinding/Polishing Machine, ASI PM200DE/250DE

APPLICATIONS
This grinder-polisher is single-plate. It is suitable for pre-grinding, grinding and polishing.
metallographic specimens. Since the machine is speed-adjusted by microprocessor,
it can run at a revolution of  0 to 1000rpm/1400rpm,which favors the machine with wide
applications. The machine is equipped with cooling system that can cool down the
specimen during pre-grinding so as to prevent overheating and damage the metallographic
structure. Featuring easy operation and reliable performance, it is an indispensable device.
for the factories, research institutions and college labs to prepare metallographic specimen

Read more

View full details
Technical Parameters
Technical Parameters
Model ASI-PM-200DE ASI-PM-250DE
Wheel diameter Φ203 mm Φ250 mm
Rotational speed 0 – 1400 r/min 0 – 1000 r/min
Constant speed 150, 300, 600, 1000 r/min
Emergency stop YES
Rotational direction Clockwise or anticlockwise
Input voltage AC 220V, 50 Hz
Wheel quantity 2 PC
Input power 1.5 kW
Dimension 758 × 785 × 310 mm
Net weight 50 kg
Standards Supplies
Item Name Unit Qty Mark
1 Sand paper PC Each 5 250 mm (240#, 400#, 800#, 1200#)
2 Polishing cloth PC 3 Velvet
3 Diamond polishing liquid PC 1 W 2.5, 500 ml
