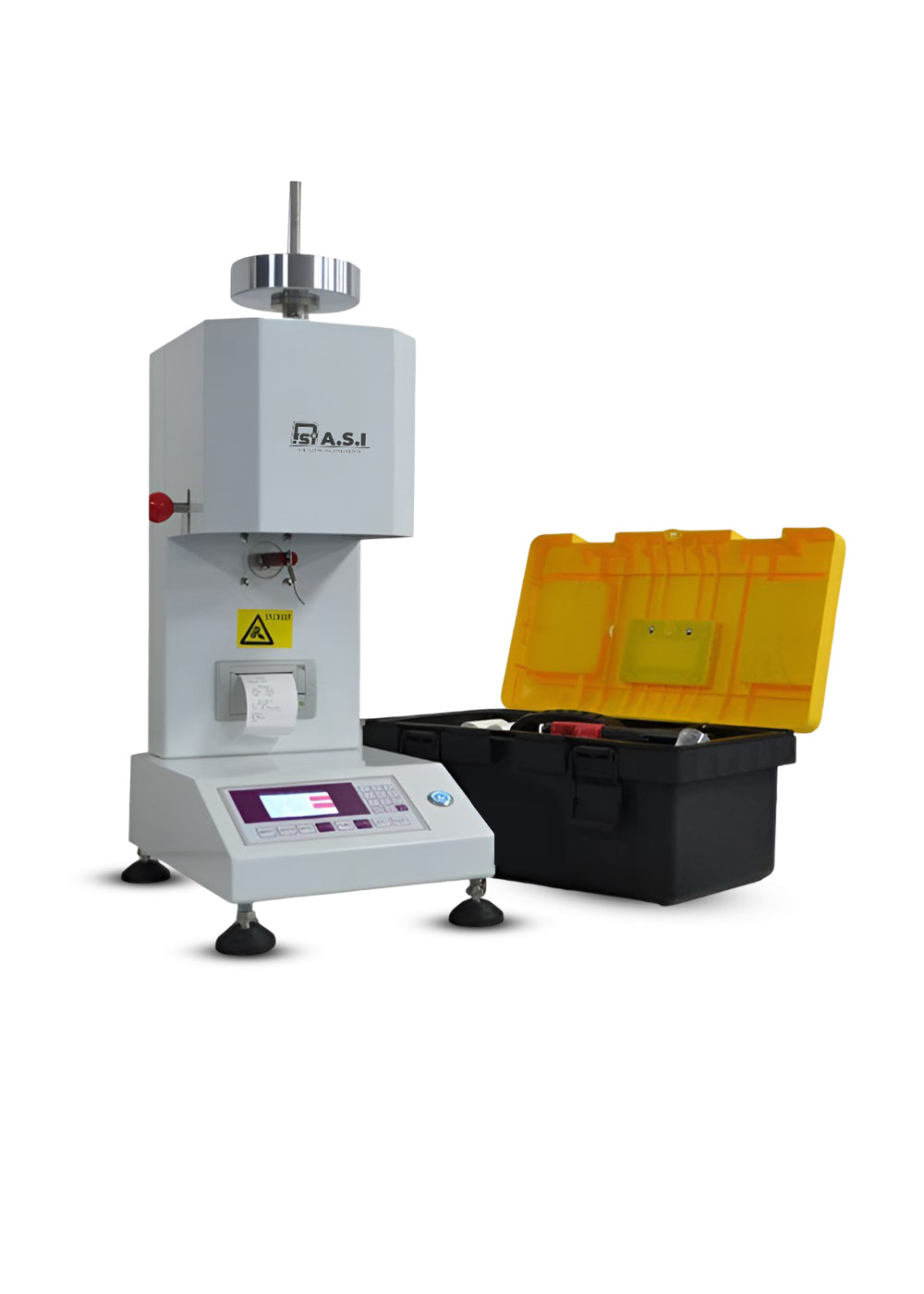

ASI Melt Flow Index Tester, ASI-101-1

ASI Melt Flow Index Tester, ASI-101-1

Description:

The melt flow rate testing instrument can be used for ABS, polystyrene, polyethylene, polypropylene, polyamide, fiber resin, acrylate, POM, fluorine plastic, polycarbonate, and other plastic materials, with the melt flow rate (MFR) or the melt volume flow rate (MVR) to be determined.

Standard:

GB/T3682, 2018, ISO1133, 2011, ASTM D1238

Product Character:

1.       English LCD Touch Screen.

2.       Hand automatic cutting material.

3.       Double temperature control system: temperature control precision is more accurate, higher heating efficiency is higher.

4.       Double imported sensors, a more accurate temperature gradient from top to bottom, can be used independently and improve the service life.

5.       Cylinder for imports, Hartz alloying, nitriding treatment, opening mold for carbon tungsten steel material, material reality.

6.       Insulation barrels of SUS304 stainless steel material for the whole, long-term high temperature do not rust.

Read more

View full details
Machine Specifications

Weight Parameters

Weight accuracy ±1 °C
Basic configuration A. 0.325kg
B. 1.2kg
C. 2.16kg
D. 3.8kg
E. 5kg
F. 10kg
G. 12.5kg
H. 21.6kg

Position Detection

Loop distance from up and down30mm
Control precision±0.1mm
Loop distance from up and down30mm

Test Flow Control

Times of cutting the material0~10 times
Material cutting interval0~999s (set reference Table 2)

Control Flow (Temperature Stability)

Barrel temperature time15 min
Material be installed1 min
Material sample temperature recovery time4 min
When binder set1 min
Output modeMicro-automatic print output

Other Specifications

Cut material methodsThe hand automatic cut into one body
Test loadEight sets of weights
PowerAC 220V ± 10% | 50/60HZ
