ASI Manual Grinding and Polshing Machine Series, ASI-M-1Pro

Product Overview

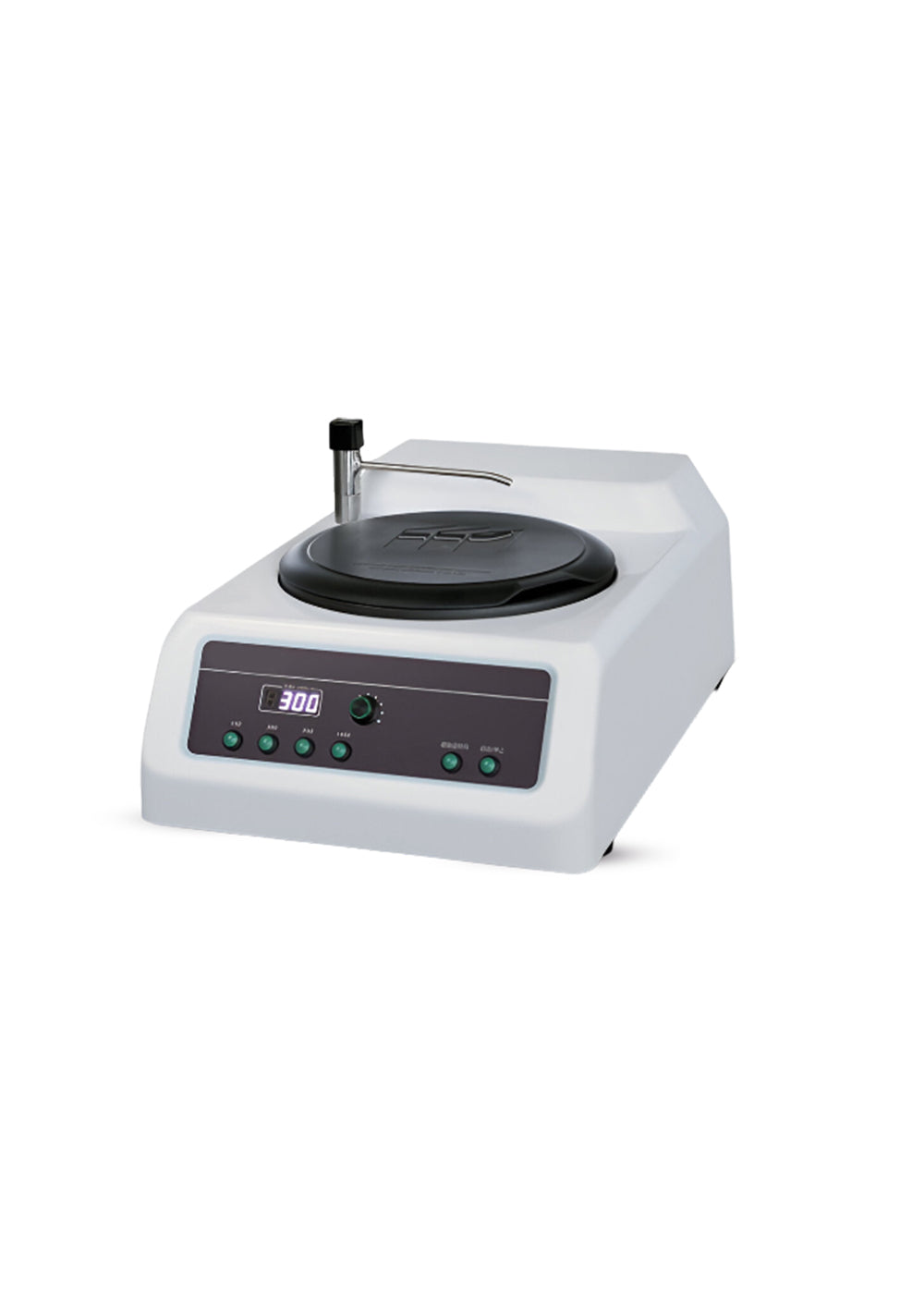

The ASI-M-1Pro Manual Grinding and Polishing Machine is a compact, user-friendly solution for metallographic sample preparation. Designed to enhance efficiency and precision, it offers advanced pressure visualization and flexible speed control for optimal grinding and polishing results.

Key Features

• Versatile Speed Control: Stepless speed adjustment from 0 to 1400 r/min, plus four constant speeds (150, 300, 700, and 1400 r/min) for precise grinding and polishing.
• Pressure Visualization: Features a real-time pressure value display with a two-color progress bar (green for safe, red for overpressure) and upper/lower limit settings to prevent errors.
• Flexible Operation: Supports clockwise and counterclockwise rotation to suit various operator preferences and sample requirements.
• Enhanced Efficiency: Reduces consumable waste (e.g., sandpaper descanting, polishing cloth degumming) and improves grinding/polishing consistency with intuitive pressure control.
• User-Friendly Design: Includes one-click clearing and calibration for stable pressure settings, ideal for beginners and experienced users alike.
• Compact and Durable: Lightweight at 22 kg with a robust design, measuring 400 x 622 x 295 mm, and a 203 mm wheel diameter.
