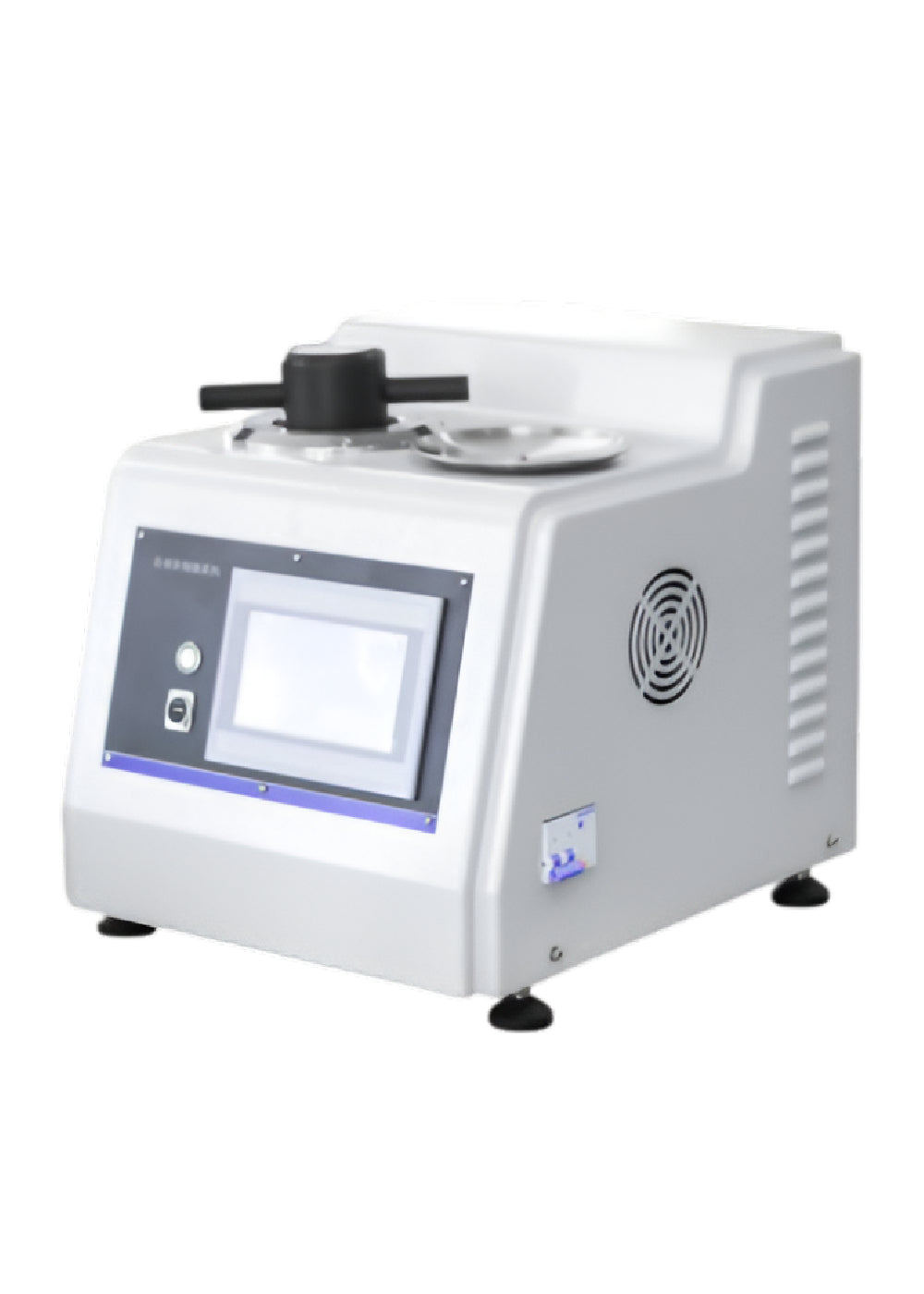

ASI LHM-2000W Automatic Mounting Press - ASI LHM-2000W

Product features

Man-machine interface and PLC control, the system is stable and reliable.
Adopts motor closed loop control to pressure the inlaid material, the pressure is stable and reliable, and the noise is low.
Efficient heating/cooling system maximizes heat transfer and cooling for fast circulation.Preheatingfunction to maintain constant standby temperature, reduce heating time, shorten sample preparationtime.
Touch screen display operation interface, simple operation, convenient and intuitive parameter setting.
One-click start to complete the sample preparation process automatically.

Item	Specifications
The mold diameter	φ30mm (optional φ22mm, 45mm)
Heater Power	560 w
Temperature range	0 ~ 200°C adjustable
Time range	0 ~ 30 min
Pressure mode	Automatic (motor loading)
Cooling way	Water cooling (optional chiller)
Operation and display mode	Touch screen
Mounting application	Editable mounting process library, can store 99 sets of mounting process
Program input/output	U disk
Working mode	Automatic and manual can be switched
Total power	1000W
Power supply	AC220V 50HZ
Overall dimensions	530 × 430 × 410 mm
Weight	66Kg

Item	Quantity	Item	Quantity
Mounting press (HM1 black)	1 bottle (500 g)	Throat hoop (13-19)	1
Inlet pipe	1	Teflon tape	Volume 1
Outlet pipe	1	Spoon	1
Funnel 1.5 cm	1	Product certificate	1
Product specification	1
