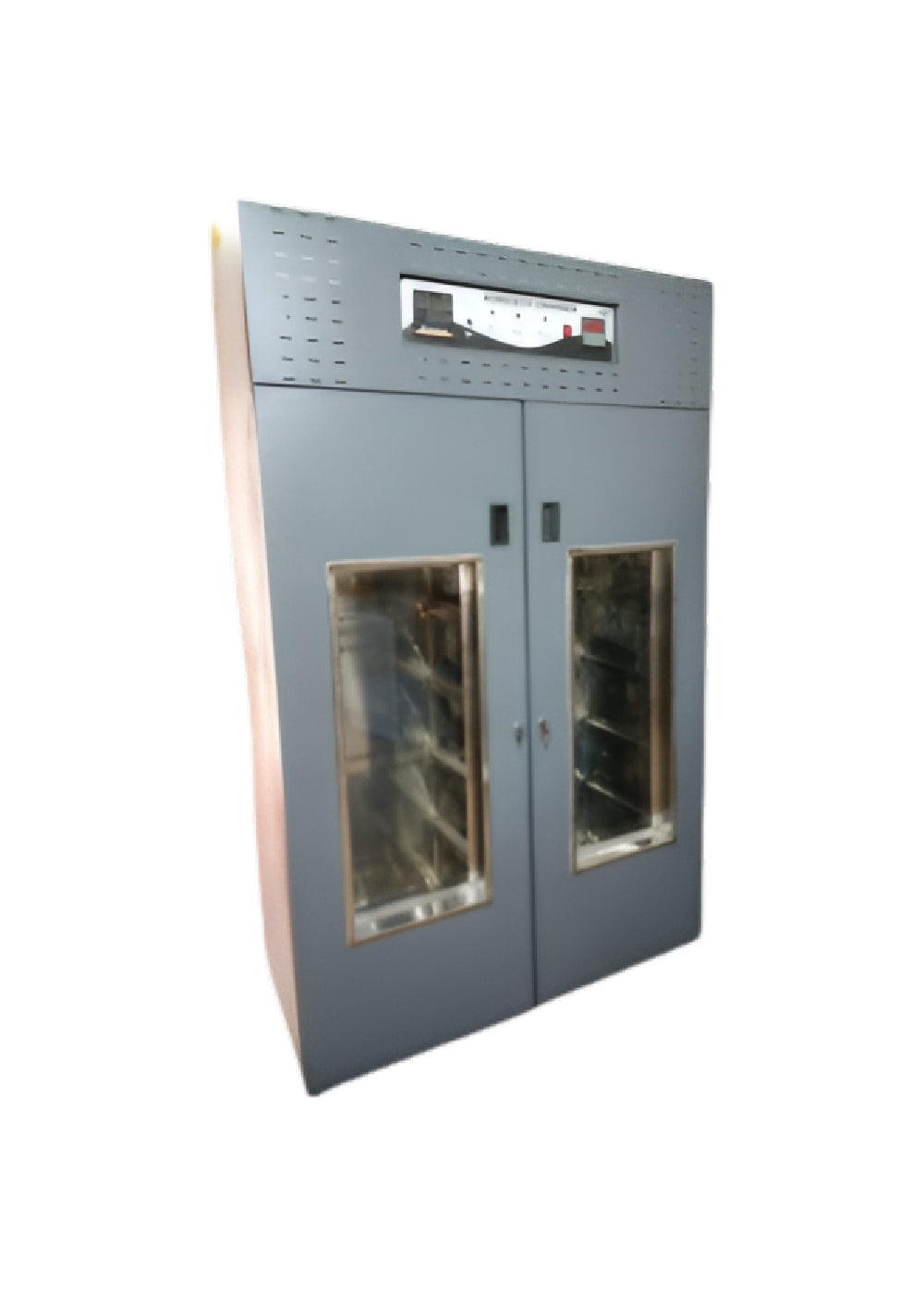

ASI Humidity Chamber - ASI-HC

Measured with high accuracy data-logger at sample storage area with standard Set Point
Standard Chamber Features Provisions:
Construction: PCGI/SS 304/SS 316 Tongue Groove Type Panels of 80 mm thick with PUF
Density of 40Kg/m3
Sample Storage:
1. Racks: Heavy Duty SS 304 Frame secured strongly to chamber walls for strength.
2. Trays: Perforated types (CNC punched).Strengthened with support rails to prevent
deformations.
Door: PUF Insulated external doors mounted with imported hinges locks, Inner glass doors
with latches. Door frame is secured with silicone rubber gasket on entire perimeter to ensure
air tight, leak tight chamber.
Door Operation: Passcode protected door operation - from software HМІ
Control System:
1. Ergonomically designed control panel.
2. Ferrule printed wiring.
3. Advanced PLC program with built in processor-based Auto Tuning.
4. 4.3" HMI color LCD display.
5. Built in Redundancy Safety.
6. Advanced High Accuracy "Transmitter bas sensors" with output of 4-20 mA.
