| Specification | |
|---|---|
| Measuring range | 10–60 MPa |
| Impact energy | 2.207±0.1 (0.225 Kgf.m) |
| Length of spring stretch | 75±0.3 mm |
| The static friction of pointer slider | 0.65N~0.15N |
| Radius of spherical tip | 25 mm ±1 mm |
| The average rebound values on steel anvil | 80±2 |
| Material of the body | Aluminum |
| Working humidity | ≤ 90% RH |
| Working temperature | –10 ℃ ~ +50 ℃ |

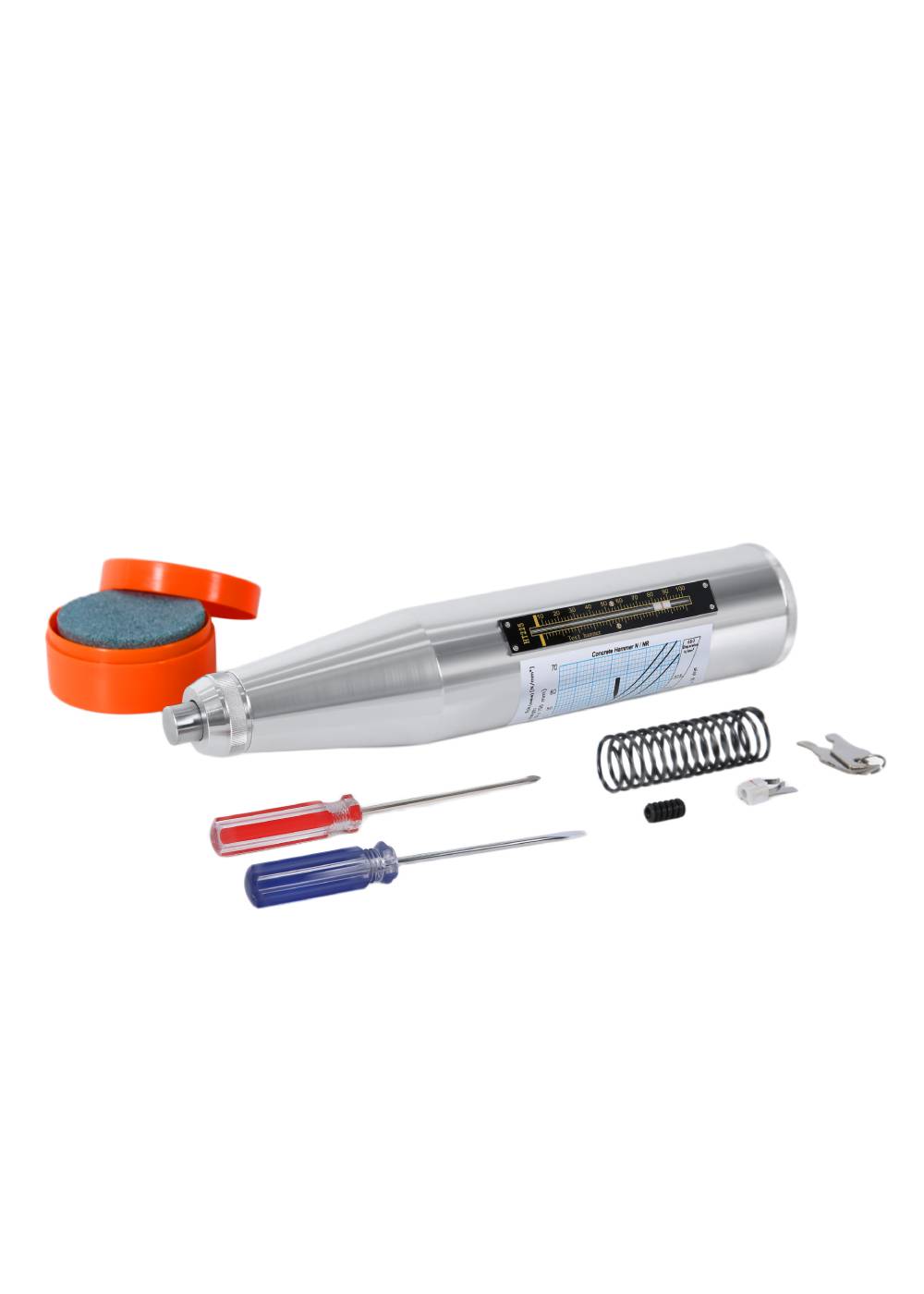

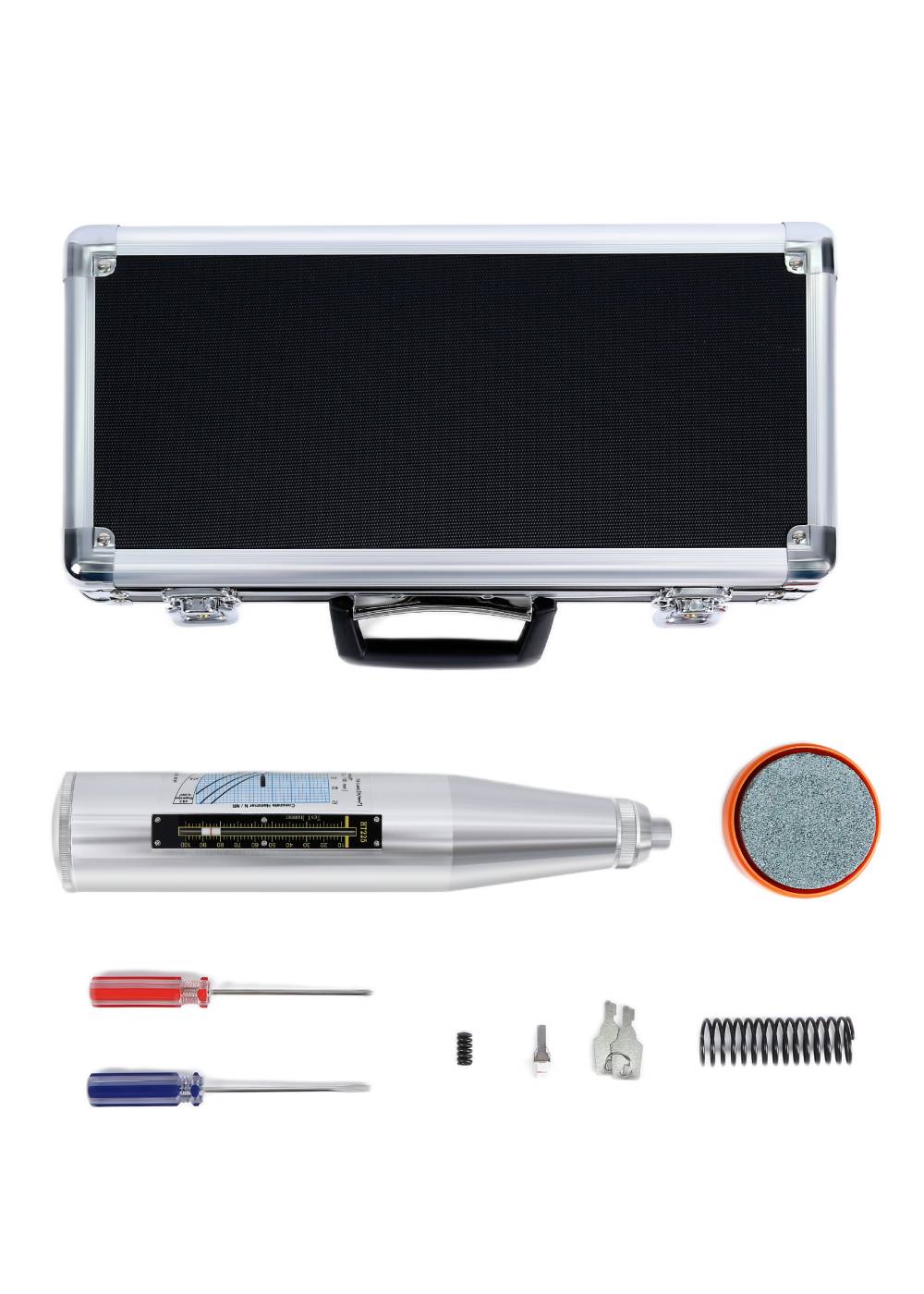

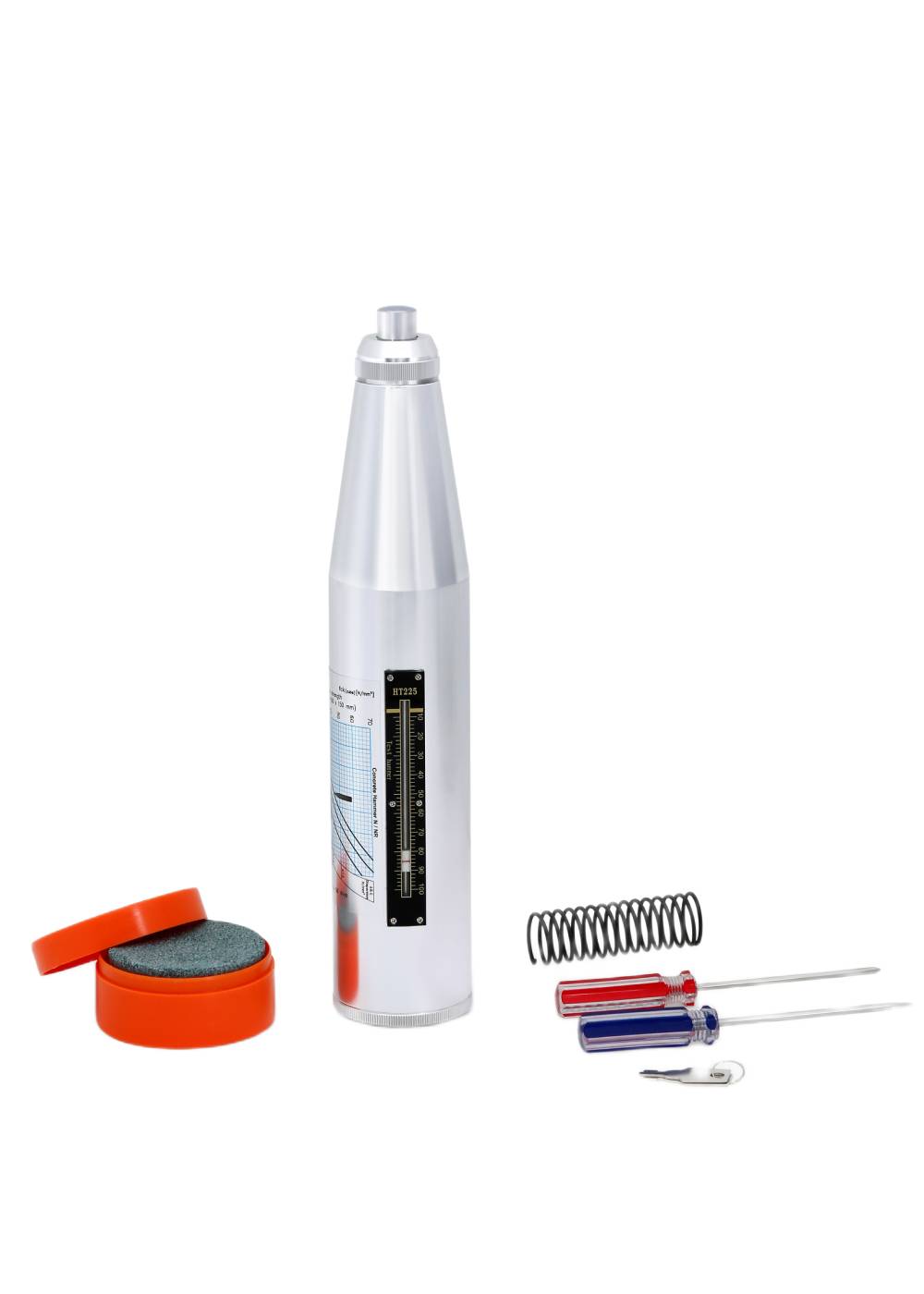

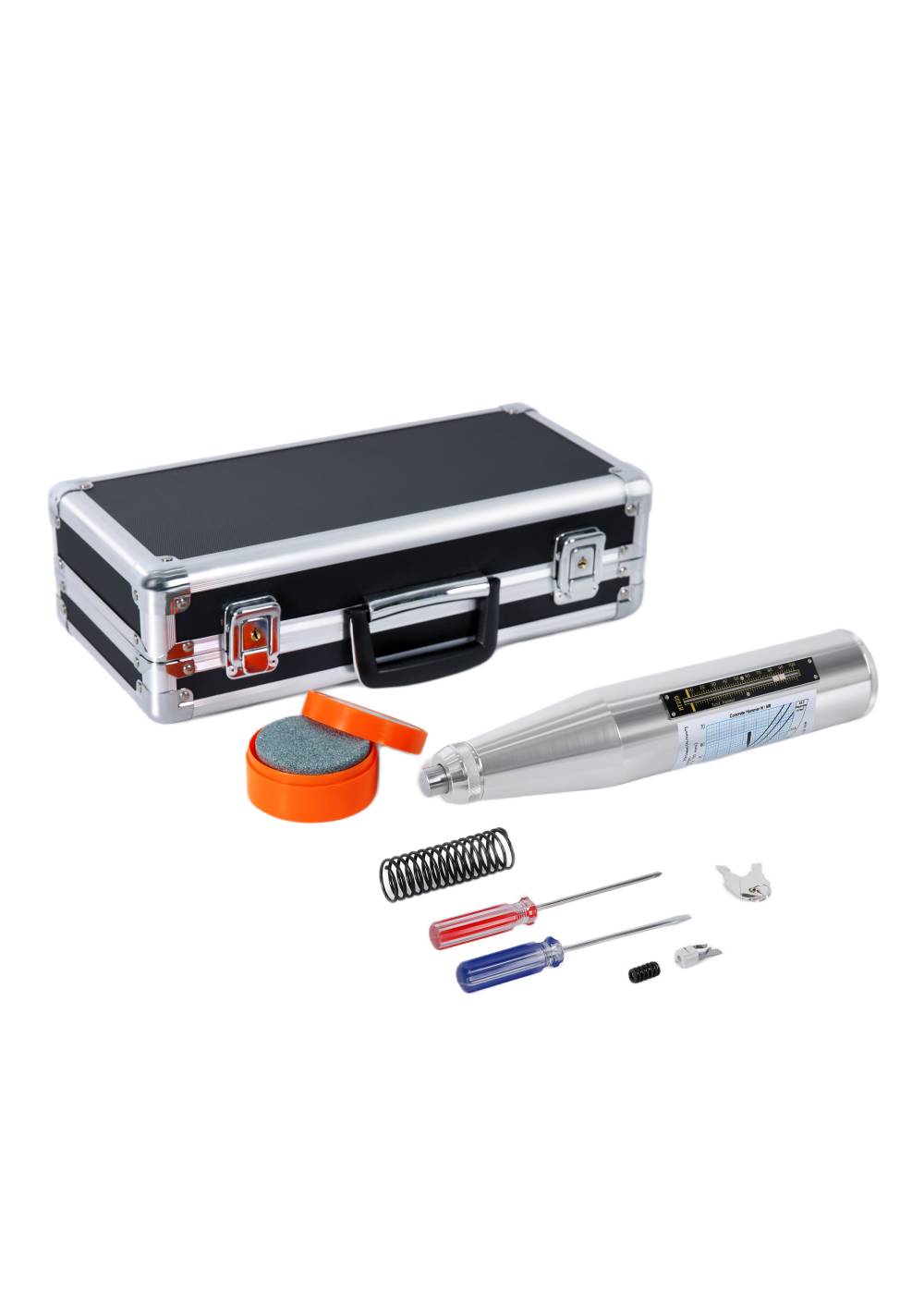

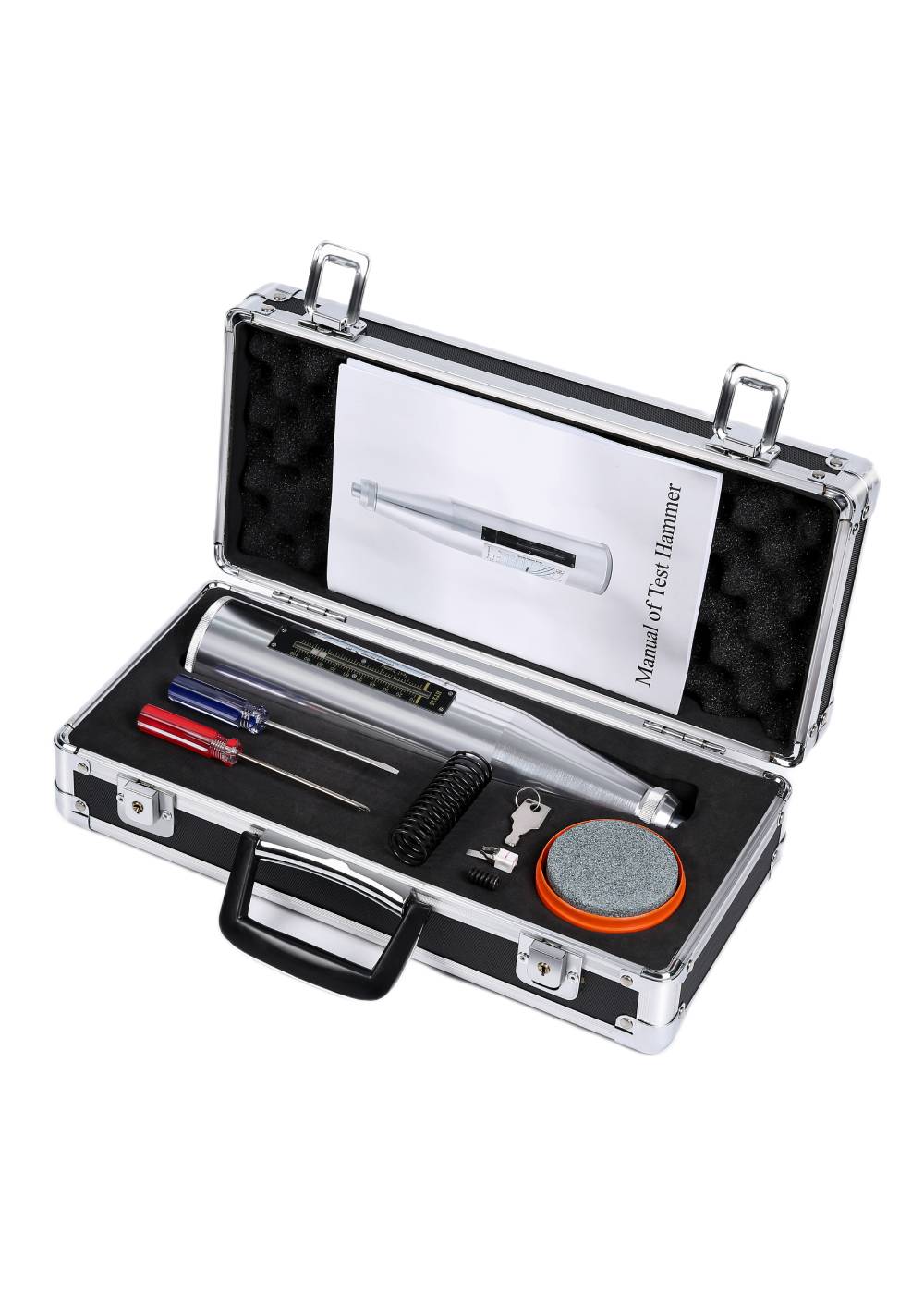

| Standard Accessories | Optional Accessories |
|---|---|
| Concrete rebound hammer | Test hammer calibration anvil |
| Grindstone | Digital carbonation depth gauge |
| Spring | |
| Screwdriver | |
| User manual | |
| Aluminum carrying case |
