ASI High-Temperature Viscometer, ASI-RV-SSR-H

Name: ASI High-Temperature Viscometer, ASI-RV-SSR-H
Brand: Asisales
SKU: ASI-RV-SSR-H
Availability: InStock

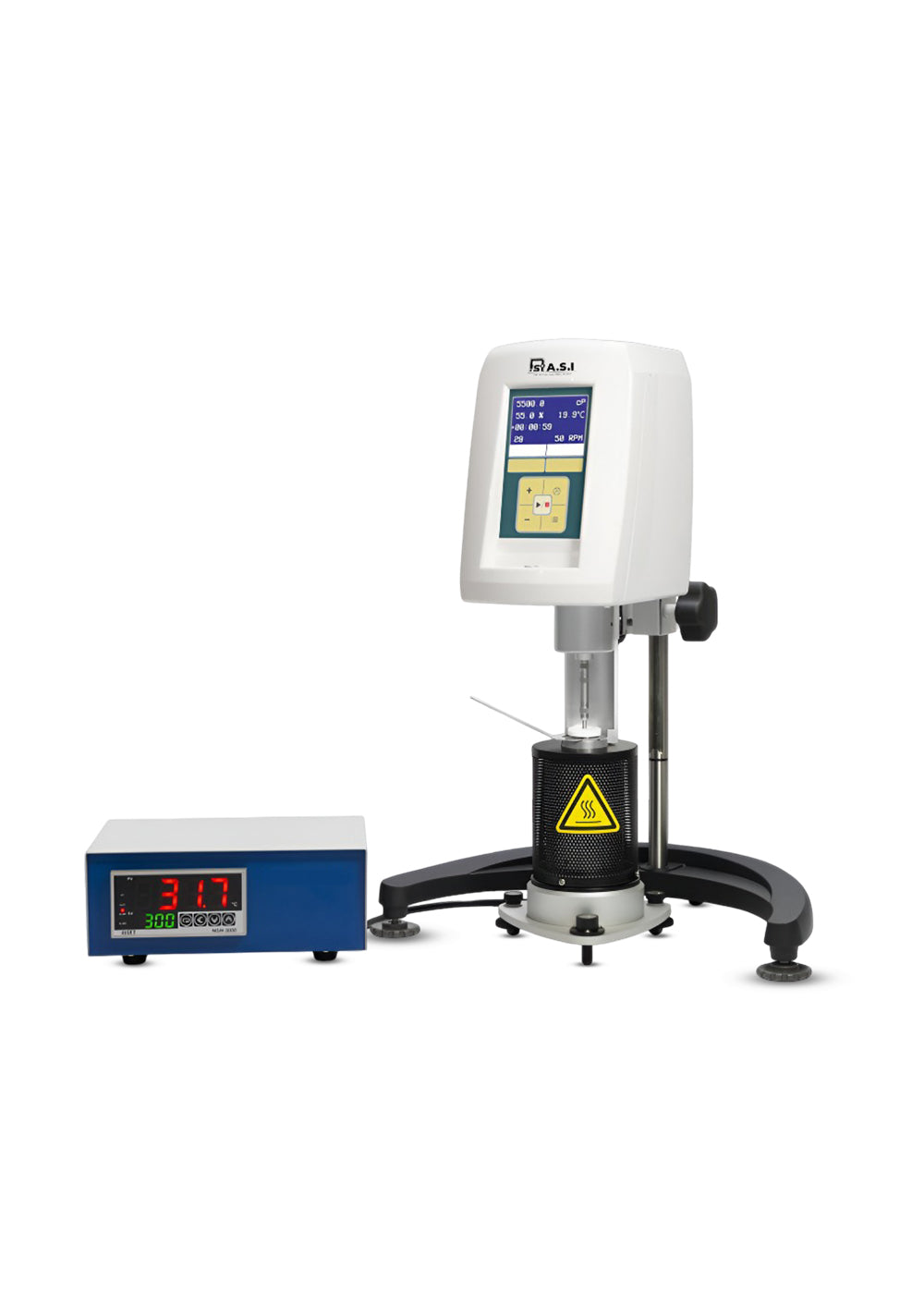

The high-temperature viscometer adopts a coaxial center structure, requiring only 8-13ml of sample and providing rapid and precise temperature control. The full range and linearity of each gear are calibrated through a PC interface using standard samples of different viscosities, ensuring high precision and repeatability of the instrument. With a wide measurement range, it is suitable for testing different materials.

View Catalogue Get Latest Price

View full details

Model	ASI-RV-SSR-H
Display mode	Liquid crystal display
Rotational speed	0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 RPM (37 types in total)
Spindle	21, 27, 28, 29 # (Standard configuration)
Range (mPa.s)	50 – 3.3M 21#: 50–167K 27#: 250–834K 28#: 500–1.7M 29#: 1K–3.3M K = 1000; M = 1,000,000
Sample size	21#: 7.8ml 27#: 11.3ml 28#: 12.6ml 29#: 11.5ml
Test deviation	±2% (Newtonian fluid)
Repetitive deviation	±1% (Newtonian fluid)
Temperature Control Range	RT+10°C – 250°C (300°C optional configuration)
Precision	0.1°C
Print Interface	Standard configuration (The printer requires a dedicated printer, which can be optionally selected as needed.)
External dimensions	300 × 300 × 450 mm
