Performance Parameter

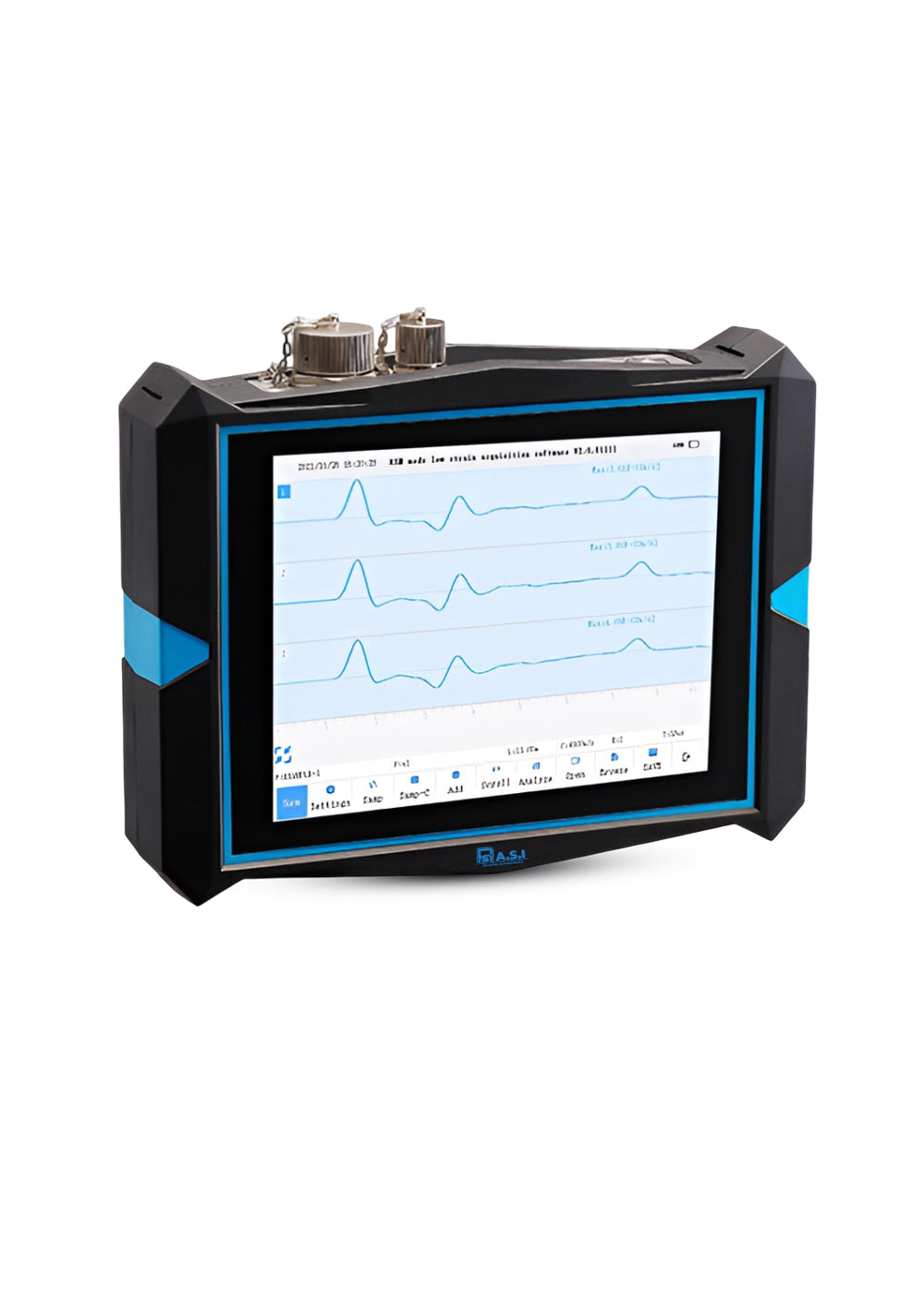

| Model | ASI – PDT (D) |
|---|---|
| Display method | 8.4-inch true-color LCD screen Resolution: 800×600 (adjustable backlight) |
| Operation mode | Capacitive touch |
| Storage capacity | 16G electronic hard disk |
| Signal acquisition method | Wired |
| Data export method | USB |
| Sampling interval | PDA: 50~500µs adjustable in stages PIT: 5~1000µs continuously adjustable |
| Master control sysASI | Low power embedded sysASI Basic frequency ≥ 1GHz Memory: 512M |
| Floating point magnification | 1~256 |
| Recording length | 1k |
| A/D conversion accuracy | 24-bit instantaneous floating point |
| SysASI noise voltage | < 20µV |
| Dynamic range | ≥ 100 dB |
| Frequency bandwidth | Speed channel: 2~12000Hz Strain channel: 0~12000Hz |
| Trigger level | Four-level selectable |
| Sampling mode | PDA: four channels PIT: one channel |
| Sensor | Piezoelectric accelerometer, strain transducer |
| Protection level | IP65 |
| Power supply mode | Removable lithium battery Capacity: 12000mAh Thickness: 9mm Battery life: ≥10h |
| Shell | Engineering Plastic: ABS+PC |
| Operating temperature | 20°C ~ +55°C |
| Dimensions | 265 × 200 × 56 mm |
| Weight | 2.0 kg (including lithium battery) |
