| CERTIFICATIONS |
OUR ASI Flash Point Apparatus ARE “CE” Certified Chambers. Our company is ISO 9001:2008 Certified. |
| MODEL & FEATURES |

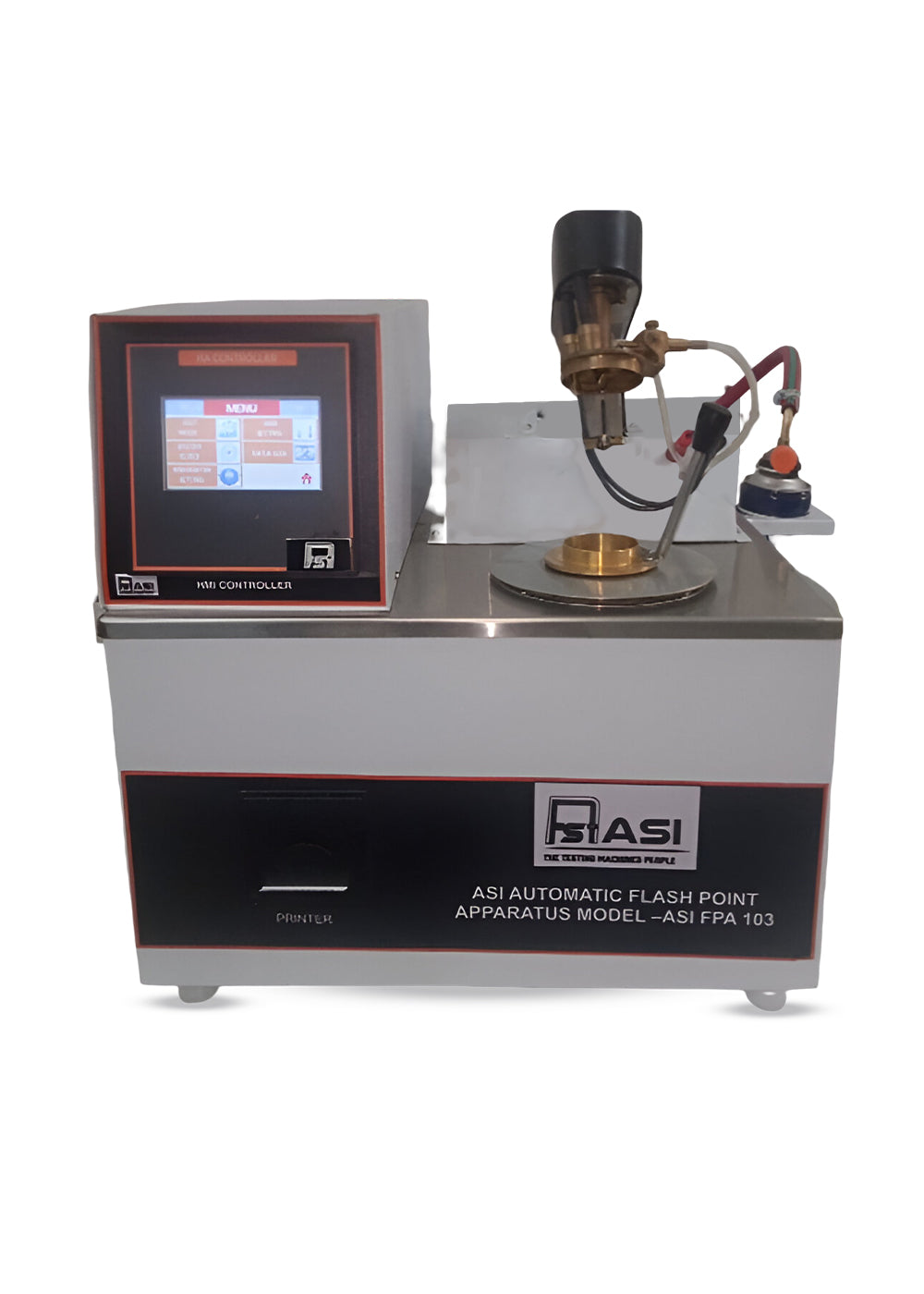

ASI 30D Automatic ASI Flash Point Apparatus. Fully Automatic Operation, only need to put sample, select method and press Start. Can perform Rapid Test (Unknown Sample), Method A, B, or C as per ASTM Procedure in closed Cup Test. |
| TEST METHOD |
Our ASI Flash Point Apparatus ARE “CE” Certified Chambers. We as company is ISO 9001:2008 Certified Company. |
| STANDARD |
ASTM D93; IP 34; ISO 2719 |
| TEMP RANGE |
40 to 370°C |
| IGNITION SOURCE |
Electrical ignitor with LPG gas connection. Auto Ignition. |
| CONSTRUCTION GMP MODEL |
Double walled, Outer Body GI Duly powder. ASI cup & Lid made of Brass. |
| TEMPERATURE SENSOR |
PT-100 in stainless steel sheath |
| FLASH DETECTOR |
CRC Thermocouple |
| STIRRER |
Motorised Stirrer. Automatic selection of stirrer speed as per method elected. |
| CONTROLLER |
Touch Screen, Colour Display with PLC with audio visual alarm to check the machine. 3-wire RTD emperature
sensor, free potential flame detector sensor as i/p. with automatic barometric reading correction. Having Inbuilt Memory of 400 Data Reading. Inbuilt thermal printer to Print the data on completiotion of test. Software for Data Management. |
| HEATING |
Consealed Heater With Ceramic Board &Sindhania
Insulation. Consealed Heater Not Open coil type with high
durability. Our Consealed heater provide energy
efficiency with Long life. Heater Rating 800 W |
| COOLING FAN |
Forced air cooling to normalize within 10-15 min |
| FLAME-SAMPLING ARRANGEMENT |
10 Rpm, D.C. 12 v or 24V DC, gear motor, vertical
movement reciprocating to & fro motion. |
| FLAME REGULATOR |
Gas Regulator Valve for Adjusting the flame. |
| FEATURES |
Single Action Setting: - The Flash Detection sensor and temperature sensor are permanently mounted on a lid, which allows easy setting of the specimen.
Easy Operation: - Select a Test Mode and enter the
expected flash Point. While instrument executes the
test, you are free to do other lab work. The tester
follows the exact procedures prescribed in the test
method and the completion of the test cycle is signalled
by buzzer. The test result is brightly shown in VFD and
same will be stored in the HMI. |
| SAFETY |
Automatically Shut The Machine And Horn The Buzzer In The Case: EFP+30oC or at 370oC is reached
Temperature sensor is found defective LPG solenoid is working Flash detector is found defective Stirrer not working Heater has gone Side Ignition coil/solenoid has gone |
| ACCESSORIES SUPPLIED ALONG WITH THE INSTRUMENTS |
Pensky Martene Cup & Lid -- 1 No (Cat NoASI30ac1)
Electrical Ignitor -1 No. ( Cat No ASI30S3)
Thermal Printer Roll -- 1 No (Cat NoASI30ac8)
Pc Interface Cable – 1 No. (Cat No ASI30ac9)
Software For Above-- 1 No. (Cat No ASI30ac10)
Thermal Fuse – 1 No. (Cat NoASI30ac5) |
| SPARES REQUIRED FOR 5 YEAR ROUBLE FREE OPERATION (AT EXTRA COST. NOT INCLUDED IN PRICE) |
Ceramic Heater -- 2 Nos.(Cat No ASI30s1)
Electrical Ignitor -- 2 No.(Cat No ASI30s2)
ASI Cup With Lid -- 2 No.(Cat No ASI30ac1)
Ignitor Coil – 3 No Each (Cat No ASI30s3)
Cooling Fan – 1 No.(Cat No ASI30s4)
Thermal Printer Roll – 5 No ( Cat No ASI30ac8) |
| UTILITIES (PREINSTALLATION
REQUISITE) AT BUYER SCOPE |
Temperature: 0 to 45 degree C, Humidity: Less Than
90% (No condensation).
GAS Supply (LP Gas or Natural Gas Pressure Less than
9.8 Kpa)
Sample at least 100 ml
Washing solvent
Power supply 230V AC 50HZ |
| POWER SUPPLY |
230V AC, 15 Amp, 50/60 Hz |
