Standards
- The touch screen sets parameters and displays voltage-time and current-time curves.
- Current and voltage scanning, automatic measurement of polarization curve: used to confirm the specific voltage and current of electrolysis or polishing. After the curve is generated, it is used to obtain the best parameters for corrosion and polishing suitable for the material (optional).
- Realize constant current and constant voltage working mode;
- Dc 0~100V / 0~6A, current/voltage value can be customized;
- Accurately and stably set the voltage value, voltage regulation, display accuracy to two decimal places, voltage accuracy: 0.01V
- Accurately and stably set the current value, current adjustment, display accuracy three decimal places, current accuracy : 0.001A;6) Low ripple and high stability of electrical signal;
- The working voltage and current can be input into the computer for further data analysis and research (optional: RS232, RS485, wireless connection three connection methods are optional to communicate with the computer).
- Power supply overvoltage, overheating and mains input over-voltage and under-voltage protection;
- The polishing/corrosion area of the sample can be controlled (the opening diameter of the sample hood is 15mm, 20mm, 30mm);
- Control polishing/corrosion working time;
- The stirring device ensures uniform polishing/etching medium and consistent sample surface environment;
Specification:

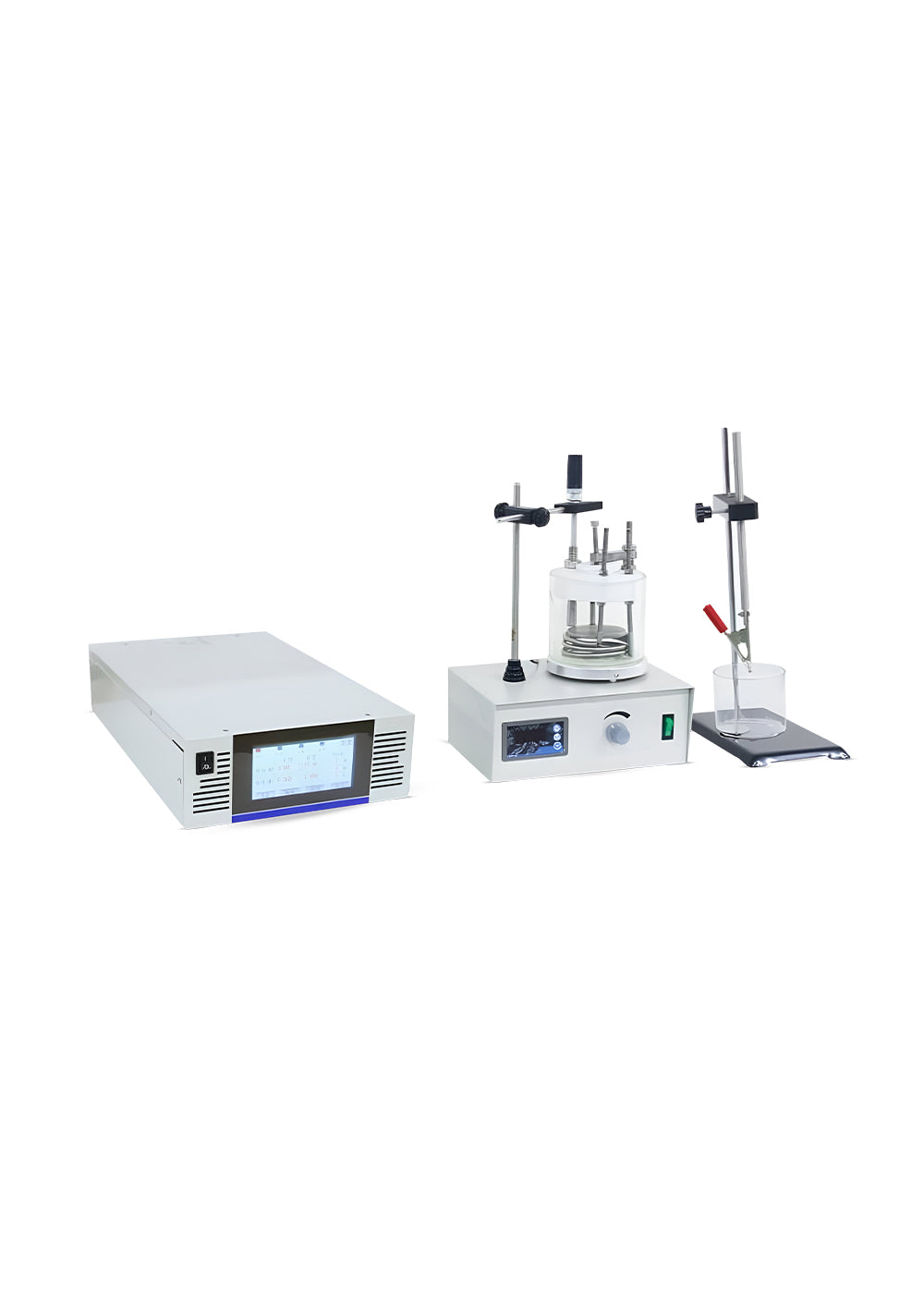

| Model | ASI EPC800 |
| Working voltage | AC220V 50 hz |
| Electrolytic output | DC 0~100V / 0~6A(other voltages or currents are optional), continuously adjustable, digital display; |
| Voltage and current regulation, display accuracy | Voltage 0.01V/ current 0.001A |
| Constant temperature range | At room temperature to 100 ℃ + / - 1 ℃ |
| Working hours | 0~99 hours |
| Container capacity | 800 ml |
| Cooling system | Cooling coil, external tap water cooling |
| Electric box size | 292 * 380 * 120 mm |
| Magnetic agitator size | 240 * 190 * 130 mm |
| Total power | 900 w |
| Total weight | 15 kg |
Standard delivery:
| Power supply | 1 |
| Standard polished/corroded components: Including: cooling coil, cathode and other hose Sample cover: control the polishing area of the sample with diameters of 15, 20 and 30mm | 1 Set |
| Simple polishing/corrosion components (iron stand, anode support plate, anode clamp, cathode, etc.) | 1 Set |
| Agitator and heating control unit | 1 |
| Instructions | 1 |
| Certificate of approval | 1 |
Optional purchase items:
| Polarization curve test software | 1 Set | Contains computer, software USB flash drive. |
Customized:
| Serial number | 1 | 2 | 3 | 4 |
| Voltage range | 0 ~ 12 v | 0 ~ 20 v | 0 ~ 300 v | 0 ~ 500 v |
| Current range | 0 ~ 50 a | 0 ~ 30 a | 0 ~ 2 a | 0 ~ 1.2 A |
| Serial number | 1 | 2 | 3 | 4 |
| Current | 0~6A | 0~12A | 0~30A | 0~60A |
| Voltage | 0 ~ 200V | 0~100V | 0~40V | 0~20 V |
