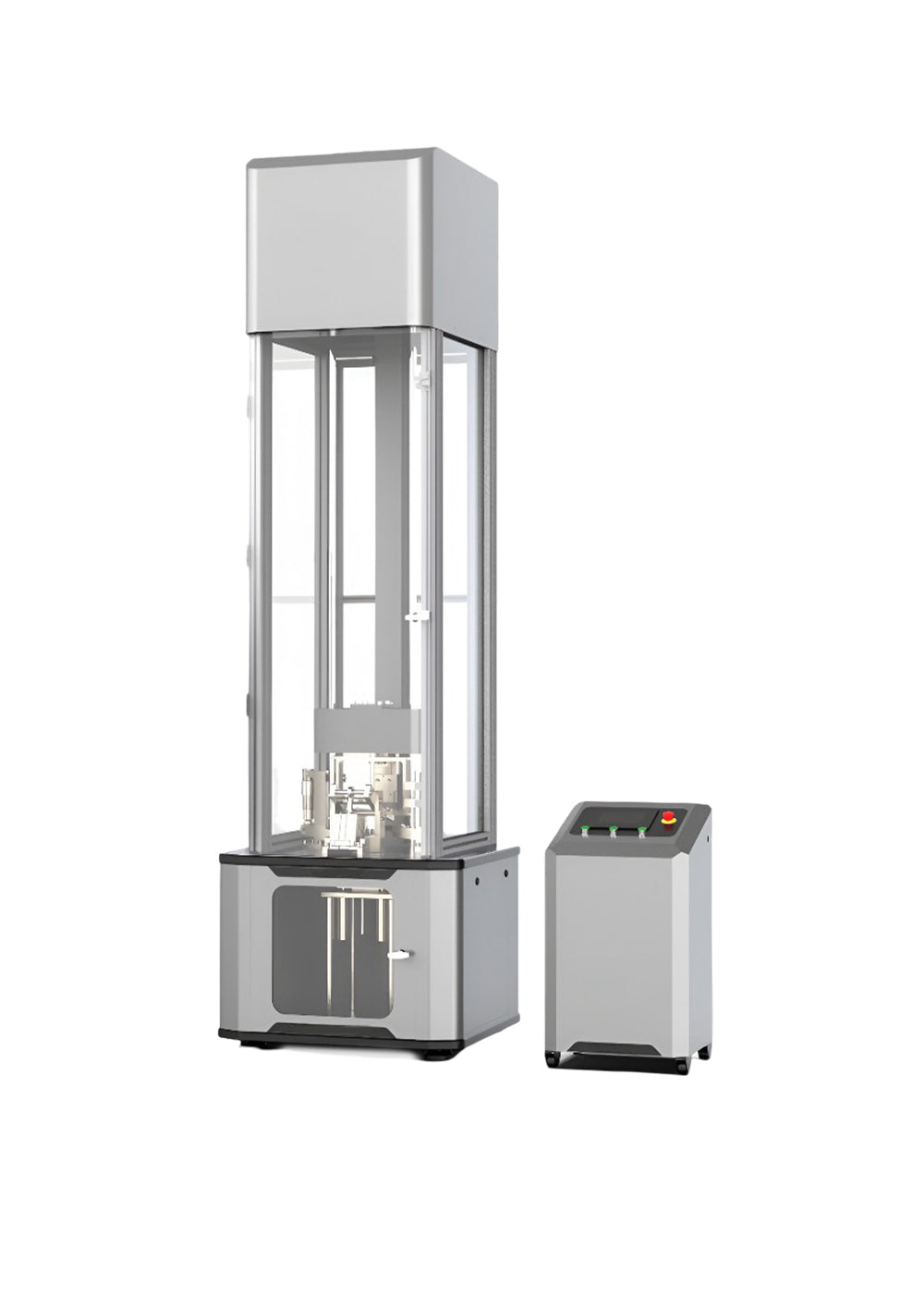

Instrumented System
| Name | Description |
|---|---|
| Impact energy | 0.59 ~ 1800 J |
| Impact velocity | 0.77 ~ 20 m/s |
| Drop height | 0.03 ~ 1.2 m (simulated up to 29.4 m) |
| Maximum impact velocity | 7 m/s ~ 20 m/s (70 kg ~ 2 kg) |
| Striker lifting speed | 1 m/min ~ 3 m/min (adjustable) |
| Striker positioning accuracy | 0.1 mm |
| Force transducer range | 1 kN ~ 100 kN (made to order) |
| Force transducer static linearity accuracy |
±1% of full scale (10% ~ 50% FS) ±2% of reading (50% ~ 100% FS) |
| A/D sampling resolution | 16 bits |
| Sample frequency | 2 MHz |
| Frequency response | 500 kHz |
| Channel storage capacity | 60,000 points |
| Dynamic error | < 2% |
| Test space | 720 mm × 720 mm × 630 mm |
| Dimensions | 850 × 850 × 3500 mm |
| Weight | 1200 kg |
| Power supply | 220 V ±10%, 50 Hz ±10%, 3 kW |
