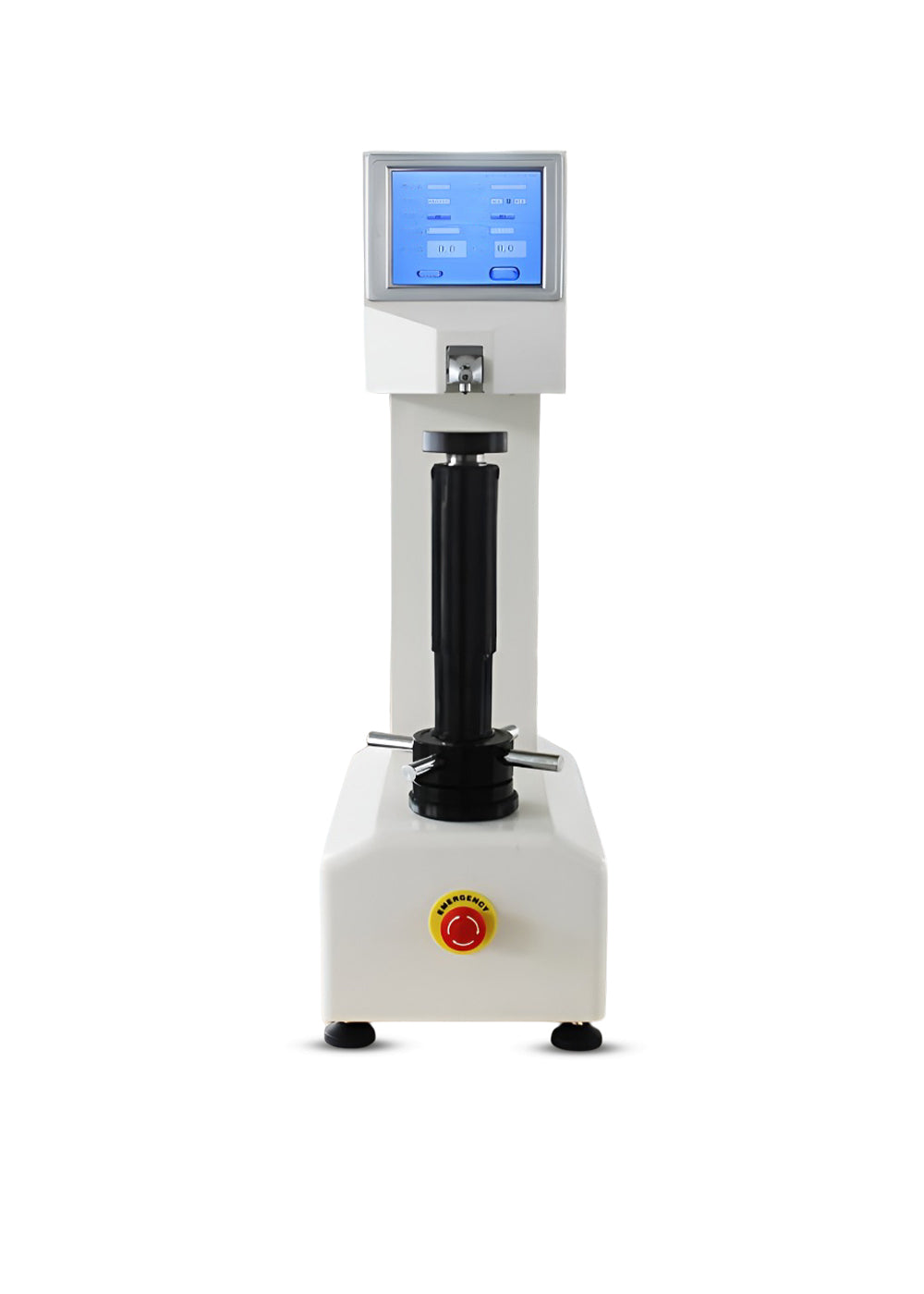

ASI Dolphin Nose Indenter Digital Touch Screen Twin Rockwell Hardness Tester, ASI-RSR-150NT

ASI Dolphin Nose Indenter Digital Touch Screen Twin Rockwell Hardness Tester, ASI-RSR-150NT

Product Overview

The ASI-RSR-150NT is a versatile digital Rockwell hardness tester featuring a dolphin nose indenter for accessing hard-to-reach areas. With touch screen control and closed-loop load cell technology, it supports both standard and superficial Rockwell scales, offering precise hardness measurements without dead weights.

Key Features

·         Dolphin Nose Indenter: Enables testing in awkward locations like ring shapes, tubular materials, screw corners, and bearing edges, ideal for inner surfaces of cardan shafts, bearings, screws, and gearboxes.

·         Touch Screen Interface: Intuitive LCD touch screen for direct selection of test forces and scales, with hardness conversion to HV, HK, HBW, and more.

·         Automatic Load Cell System: Closed-loop structure for easy installation; test forces from 15–150 kgf with <0.5% error and 0.1 HR accuracy.

·         Data Management: USB port for saving test data directly to flash disk in Excel format; dwell time adjustable from 0–99 seconds.

·         Standards Compliance: Meets BSEN 6508, ISO 6508, ASTM E18, GB/T230 for reliable results.

·         Generous Test Space: Max specimen height 300 mm, throat depth 250 mm for accommodating larger samples.

Applications

Suitable for quality control in machinery manufacturing, metallurgy, and laboratories; ideal for testing ferrous/nonferrous metals, hardened/tempered/annealed steel, carbide, powder metallurgy, and thermal spray coatings in industrial and research settings.

Read more

View full details
ASI-RSR-150NT Technical Specification
Technical Specification: ASI-RSR-150NT
Model Name ASI-RSR-150NT
Test force (error < 0.5%) Rockwell Initial force: 10kgf (98N), main force: 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N);
Superficial Rockwell Initial force: 3kgf (29.4N), main test force: 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)
Rockwell Scale HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
Superficial Rockwell scale 15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45X, 45Y
Conversion scales HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Rockwell Testing range HRA: 20–88    HRB: 20–100    HRC: 20–70    HRD: 40–77
HRE: 70–100    HRF: 60–100    HRG: 30–94    HRH: 80–100
HRK: 40–100    HRL: 100–120    HRM: 85–115    HRR: 114–125
Dwell time 0–99s
Display Touch LCD screen
Test accuracy 0.1HR
Executive standard BSEN 6508, ISO 6508, ASTM E18, GB/T230
Data output USB flash disk (Excel format)
Power supply AC220±5%, 50–60Hz
Test space Max. Height: 300mm; Throat depth: 250mm
Machine size 720 × 260 × 840mm
Net weight 80kg
