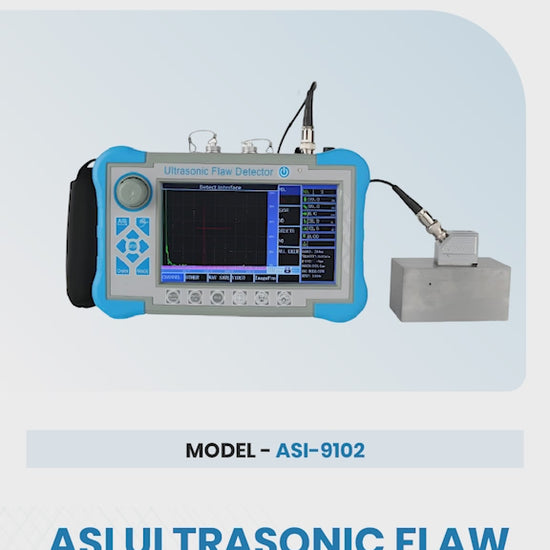

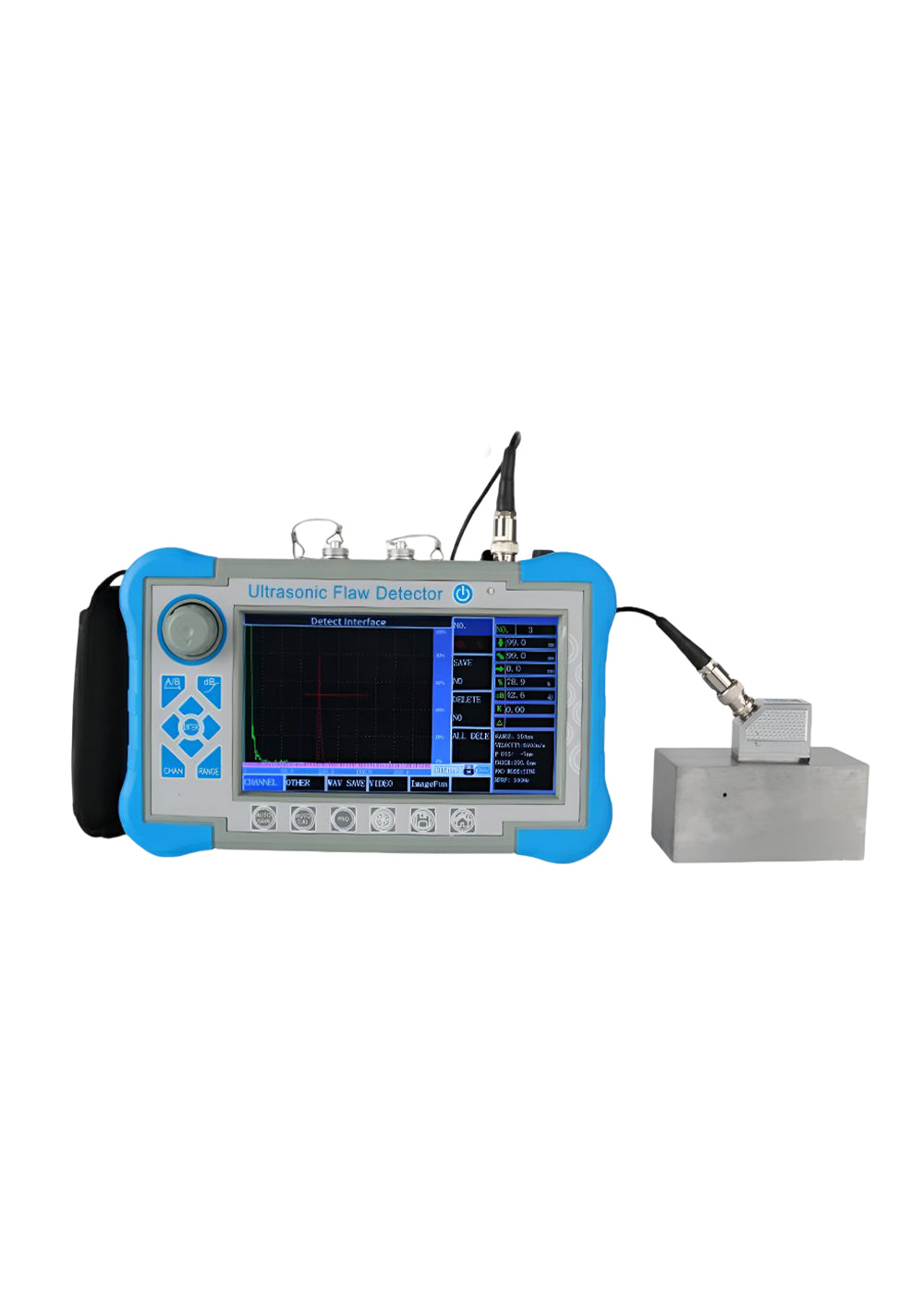

ASI Digital Ultrasonic Flaw Detector, ASI-9102

Introduction

A digital ultrasonic flaw detector is advanced type, can quickly, easily and without damage,
accurately detect, locate, evaluate and diagnose various defects inside the work-piece such
as cracks, welds, pores, sand holes, inclusions, folding, etc. It has been applied for electric
power, petrochemical, boiler and pressure vessel, steel structure, military, aerospace, railway
transportation, automobile, machinery, and other fields. It is an essential instrument for the
non-destructive testing industry.

Features

•     High-precision quantification and positioning to meet the requirements of near and far
       distance detection
•     The near-field blind zone is small, can meet the detecting requirements for small-iameter
        and thin-walled pipe.
•     Auto calibration function:one-button auto calibration,easy to operate, automatic test
       probe “P Delay”,”K value”,”X value” and the velocity
•     Automatic display the defect echo position(Depth:d, Horizontal:p,Distance:s, Amplitude,         dB,ф )
•     Switch three scales freely(Depth:d, Horizontal:p,Distance:s)
