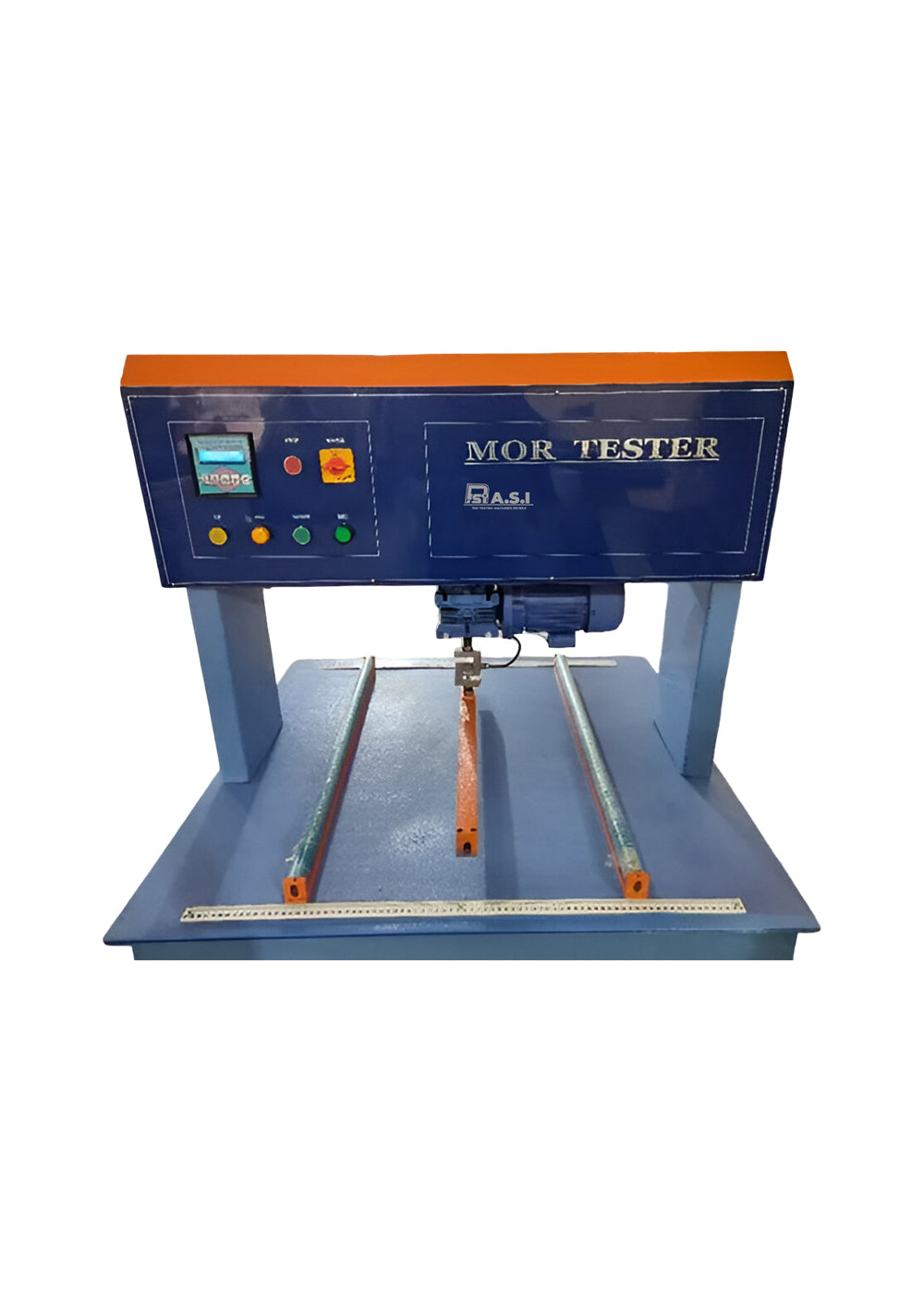

ASI Digital Tile Testing Machine, ASI-MOR

Name: ASI Digital Tile Testing Machine, ASI-MOR
Brand: Asisales
SKU: ASI-DMOR
Availability: InStock

Product Overview

The ASIMOR Tile Testing Machine is designed for precision testing of ceramic, vitrified, and flooring tiles. and industrial tiles of up to 600 • 600 mm size. The system measures the modulus of rupture. MOR and breaking load digitally, ensuring accurate performance as per industry standards.

View Catalogue Get Latest Price

View full details

Technical Specifications

Type	Digital Tile Testing Machine
Maximum Tile Size	Up to 600 × 600 mm
Capacity	20 kN
Display Type	Digital
Least Count / Resolution	0.5 kN
Test Output	Modulus of Rupture (MOR) & Breaking Load
Structure	Heavy Duty MS Fabrication with Load Bearing Frame
Loading Mechanism	Motorized, smooth loading application
Indicator System	Digital Force Display
