Specifications

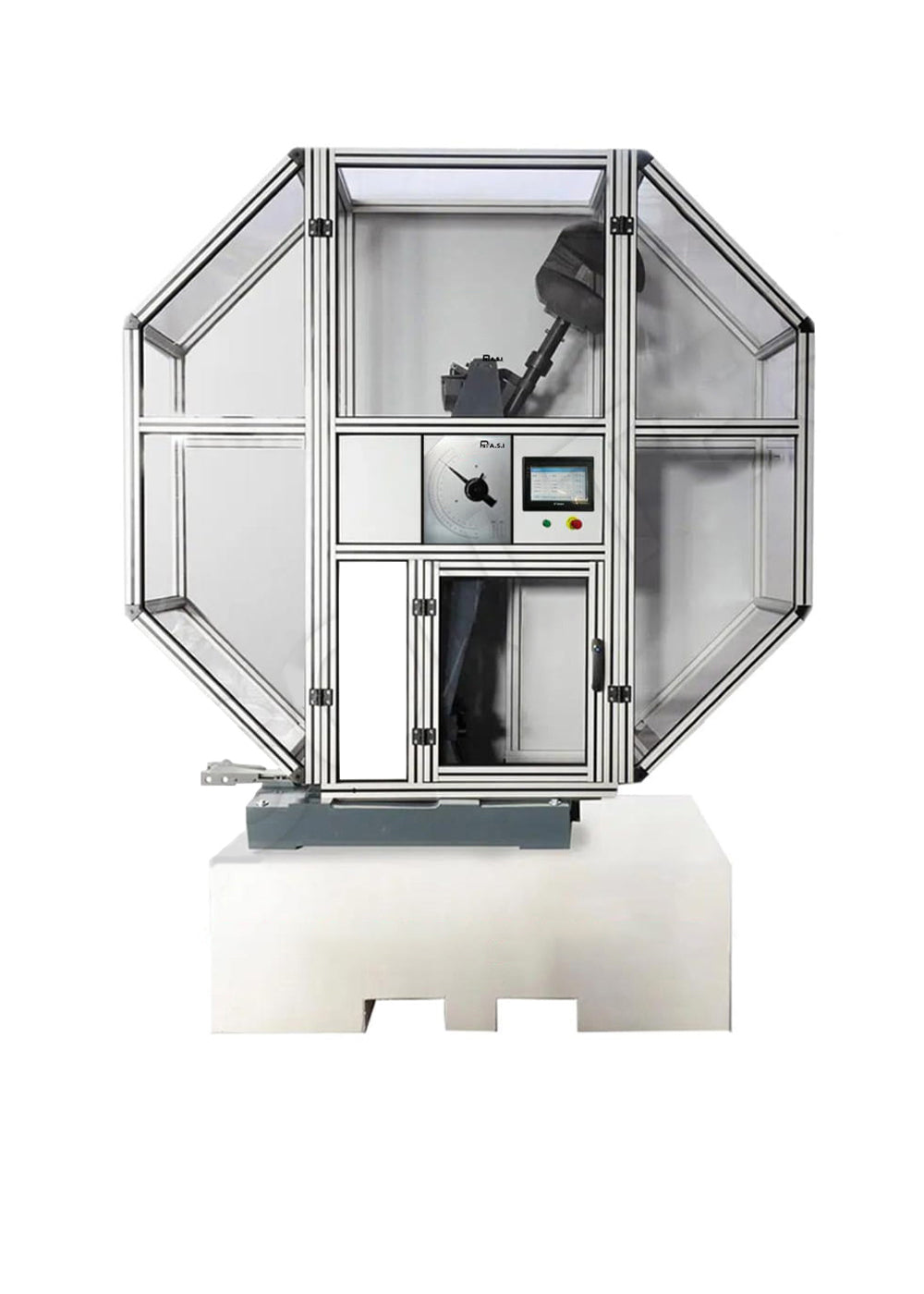

| MODEL | AMT-8D |
|---|---|
| Machine type | Type C |
| Display type | with dial gauge and touch screen display |
| Max. impact energy | 450J |
| Optional pendulum | 150J, 300J |
| Pendulum moment 150J | 80.3848 Nm |
| Pendulum moment 300J | 150.7695 Nm |
| Pendulum moment 450J | 241.1543 Nm |
| The distance between the pendulum shaft and impact point | 750mm |
| Impact speed | 5.24 m/s |
| Angle resolution | 0.025° |
| Striking angle | 150° ±1 |
| Support span | 40 ±0.2mm |
| Radius of support curvature | R1~1.5mm |
| Angle of support taper | 11 ±1° |
| Striking edge radius | 2 (R2) or 8 (R8) mm |
| Striking thickness | 16 mm |
| Striking tip angle | 30° |
| Standard specimen dimension |
55×10×10mm, 55×10×7.5mm, 55×10×5mm according to customer sample size |
| Power supply | 3 phase, AC380V±10%, 50Hz |
| Dimensions | 2220×900×2220mm |
| Net Weight | 1000KG |
