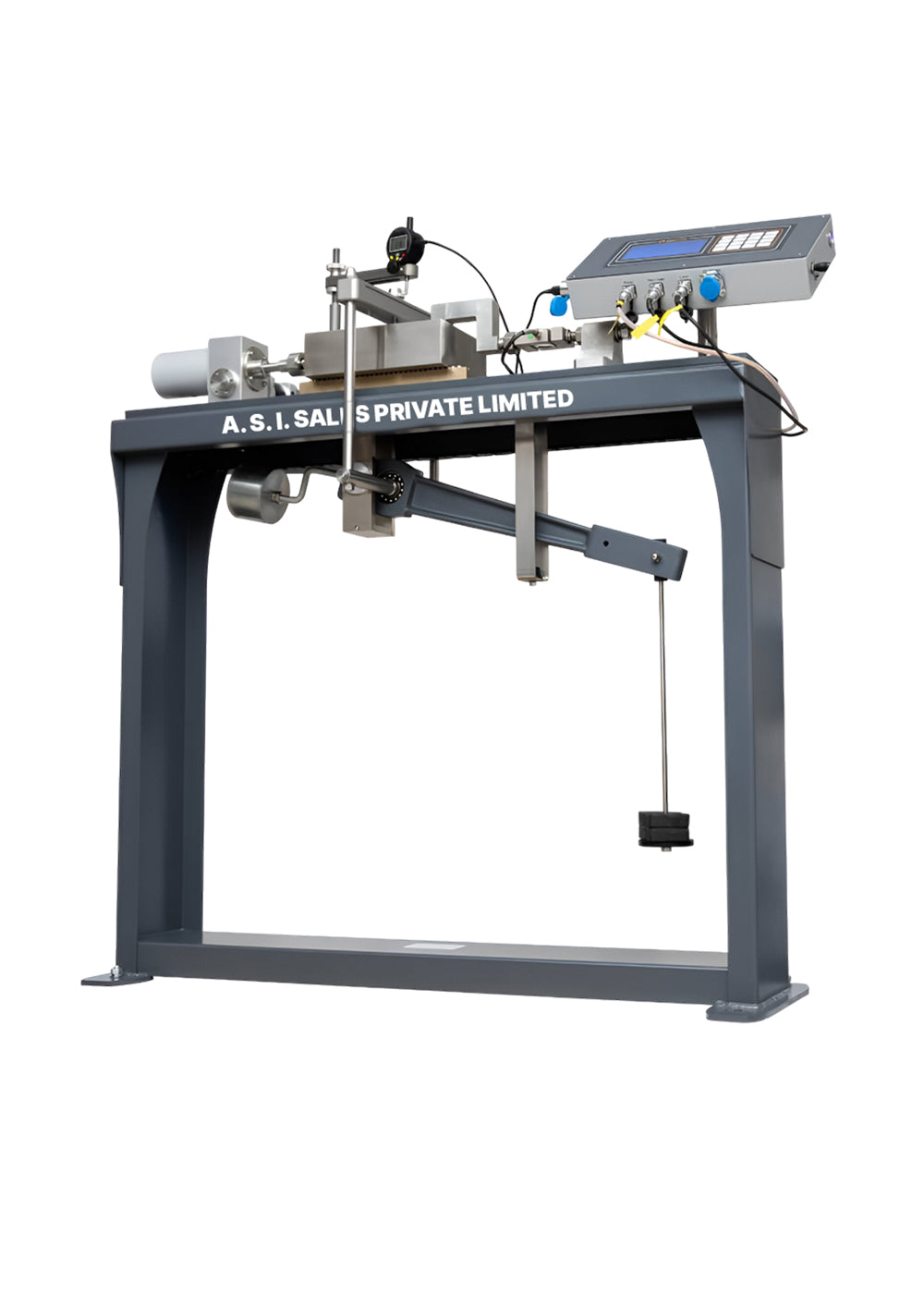

Technical Specification
| Max. shear capacity | 5 kN |
|---|---|
| Adjustable shear speed | 0.00001 to 9.99999 mm/min |
| Max. shear travel | 45 mm |
| Load beam ratio | 11:1, 10:1, 9:1 |
| Shear box assembly | One piece 60×60 mm & one piece 100×100 mm |
| Load sensor assembly | 5 kN capacity, fitted with 4 pin DIN plug |
| Vertical displacement transducer assembly |
12.7 mm travel, Accuracy: 0.003 mm, Resolution: 0.001 mm, 4 pin DIN plug, Mounting pillar and bracket for shear box |
| Horizontal displacement transducer assembly |
25.4 mm travel, Accuracy: 0.003 mm, Resolution: 0.001 mm, 4 pin DIN plug, Mounting pillar and bracket for shear box |
| 50 kg American standard slotted steel weight set | 2×0.25 kg, 1×0.5 kg, 2×1 kg, 1×2 kg, 1×5 kg, 4×10 kg |
| Dimension (L×W×H) | Around 1300×400×1250 mm |
| Power supply | 220V, 50/60 Hz |
| Weight | Around 165 kg |
