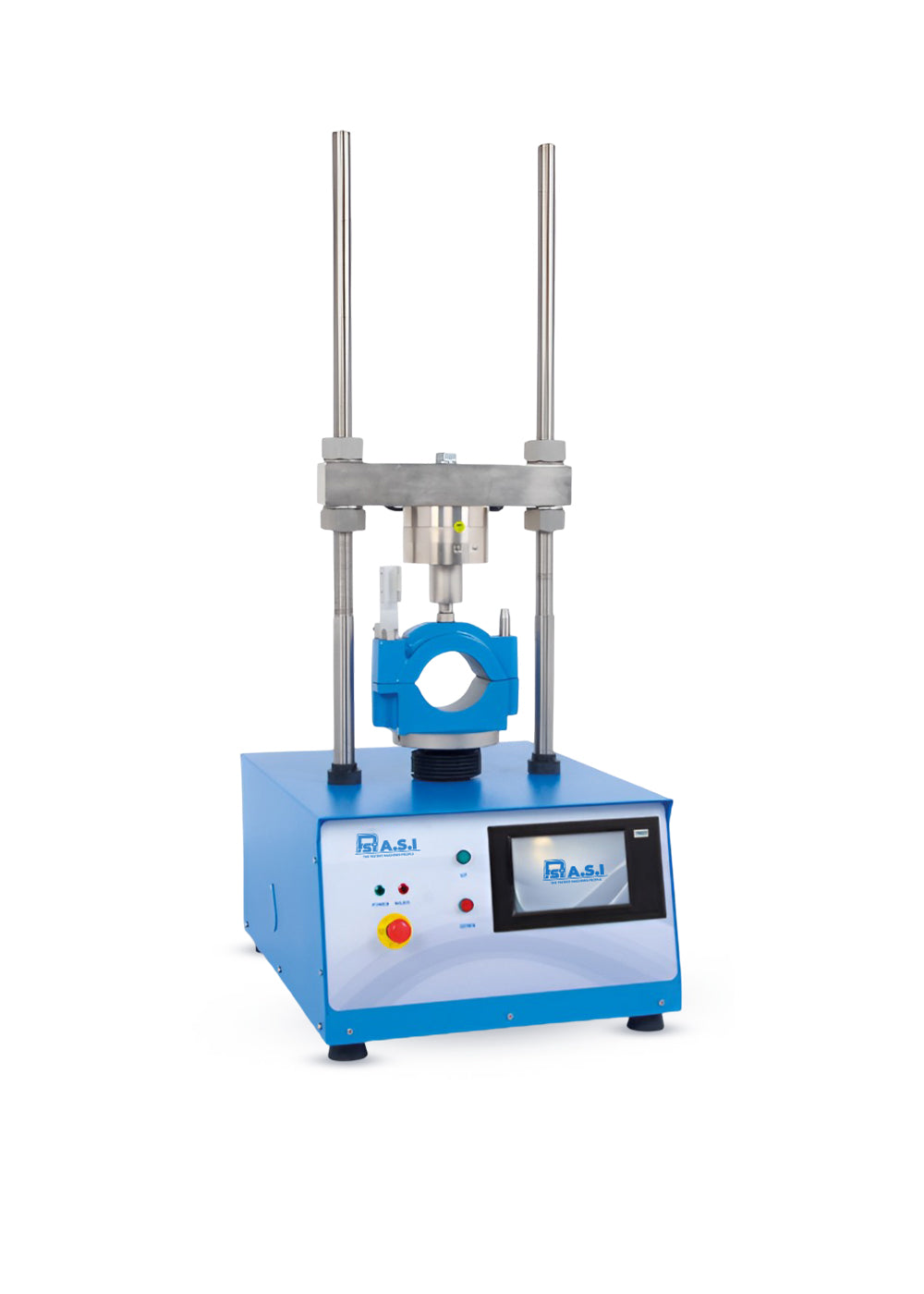

ASI Digital Computerized Marshall Stability Testing Machine With Software, ASI-MSM60D

ASI Digital Computerized Marshall Stability Testing Machine With Software, ASI-MSM60D

Product Overview

The ASI-MSM60D is a digital computerized Marshall Stability testing machine equipped with advanced software for precise evaluation of bituminous mixes. Featuring a compact tabletop load frame with touch screen controls, it simplifies the Marshall Stability test method for scientific design of asphalt mixtures.

Key Features

·         Touch Screen Interface: 10-inch touch screen displays load, displacement, status, and peak values for flow and load, with hassle-free operation and no need for TARE.



·         Automated Functions: Auto reverse on test completion, peak hold facility, safety cutoffs for lower/upper limits, and auto internal calibration.

·         Precise Measurement: Digital display measures load up to 50 kN with 0.1 kN least count; supports kN and Kg units; backlight for visibility in low light.

·         Software Integration: RS-232 interface enables direct analytical reports, auto load/time graphs, average calculations for 3 readings, two-way PC communication, and customizable lab/customer details with auto date/time stamping.

·         No Additional Tools Needed: Eliminates the requirement for flow meters and proving rings; calibratable using standard proving rings.

·         Versatile Accessories: Includes molds, base plates, collars, compaction hammers, extractors, pedestals, breaking heads, and load transfer bars for 4” and 6” diameters.

Read more

View full details
ASI-MSM60D Specifications

Applications

Ideal for civil engineering labs, road construction, and asphalt research, the ASI-MSM60D facilitates rapid and accurate stability testing of bituminous mixtures, ensuring compliance with design standards for pavement materials.

Technical Specifications

Parameter Specification
Load Capacity Up to 50 kN
Least Count 0.1 kN
Display 10-inch touch screen
Interface RS-232 for software connectivity
Calibration Auto internal and manual with proving ring
Power Supply Standard AC (details available on request)
