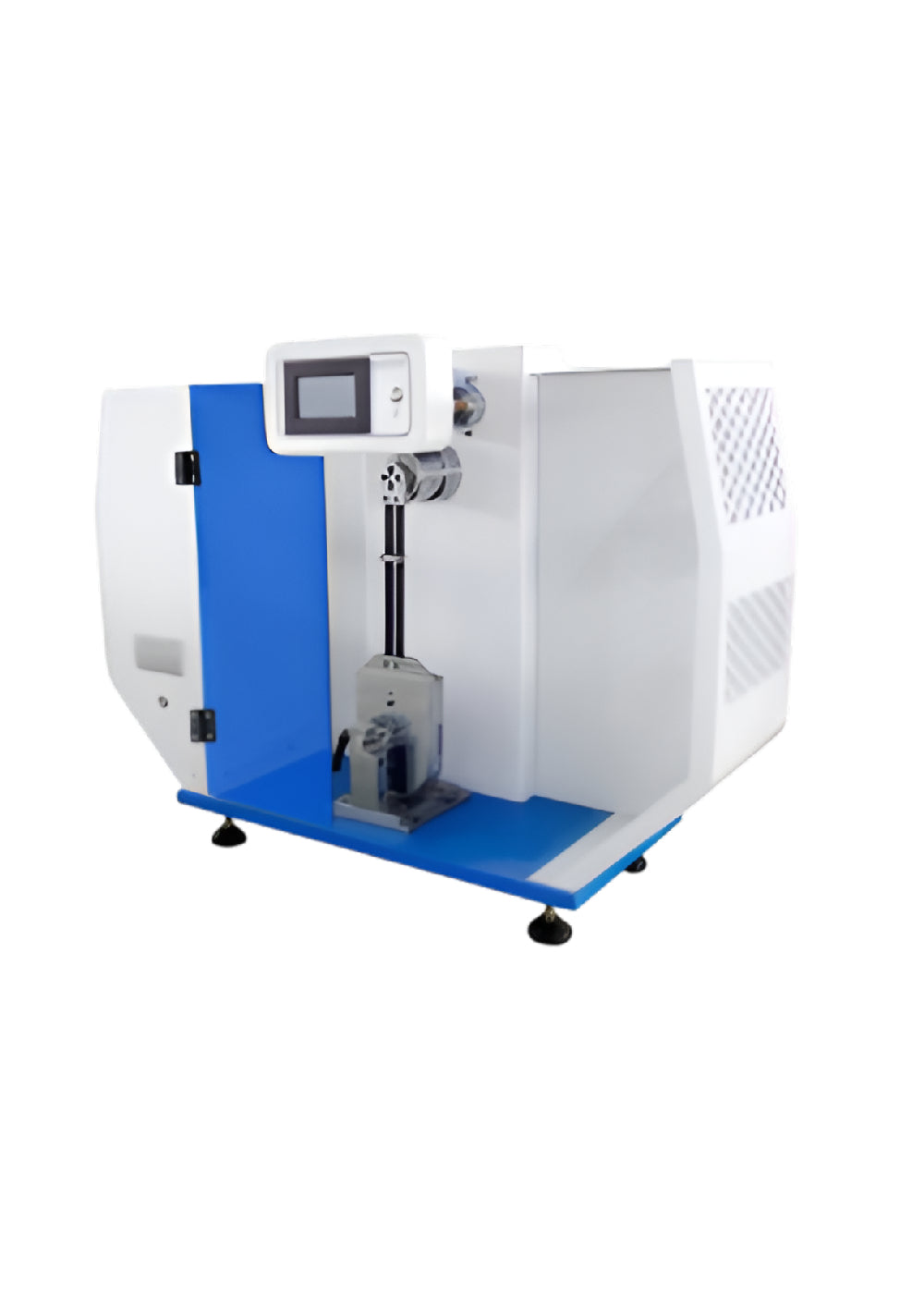

ASI-Digital Charpy Impact Test Machine - ASI-JZL-5D / ASI-JZL-15D / ASI-JZL-50D

Product Introduction: The Digital Charpy Impact Tester is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stones, and electrical insulating materials. It is an ideal test equipment for chemical industry, scientific institutions, colleges and universities, quality inspection and other departments.

Test Standards:

1. ISO179-2000 "Plastics - Determination of Impact Strength of Charpy of Hard Materials"
2. GB/T1043—2008 "Impact Test Method for Charpy of Rigid Plastics"
3. JB/T8762—1998 "Plastic Charpy impact testing machine"
4. GB/T 18743-2002 " Thermoplastic pipes for fluid transportation - supported beam impact test method" (applicable to pipe parts)

Features:

1. High-precision intelligent controller, equipped with LCD display, can read data intuitively and accurately.
2. The use of carbon fiber pendulum rods improves the rigidity of the material in the impact direction and maximizes the impact mass on the center of mass of the pendulum, truly achieving a vibration-free impact test and extending the service life.
3. Using imported high-resolution digital encoders, the angle measurement accuracy is higher and more stable.
4. The aerodynamic impact hammer and imported ball bearings greatly reduce the friction loss caused by the machine.

5. Automatically calculate the final result, the test data can save 24 sets of data and calculate the average.
6. The IZOD impact testing machine can choose Chinese and English operation interfaces, and the test results can be chosen in J/m, KJ/m², kg-cm/cm, ft-ib/in and other units.
7. Built-in micro printer. 24 test data values can be printed one by one, and the average value can also be printed.
