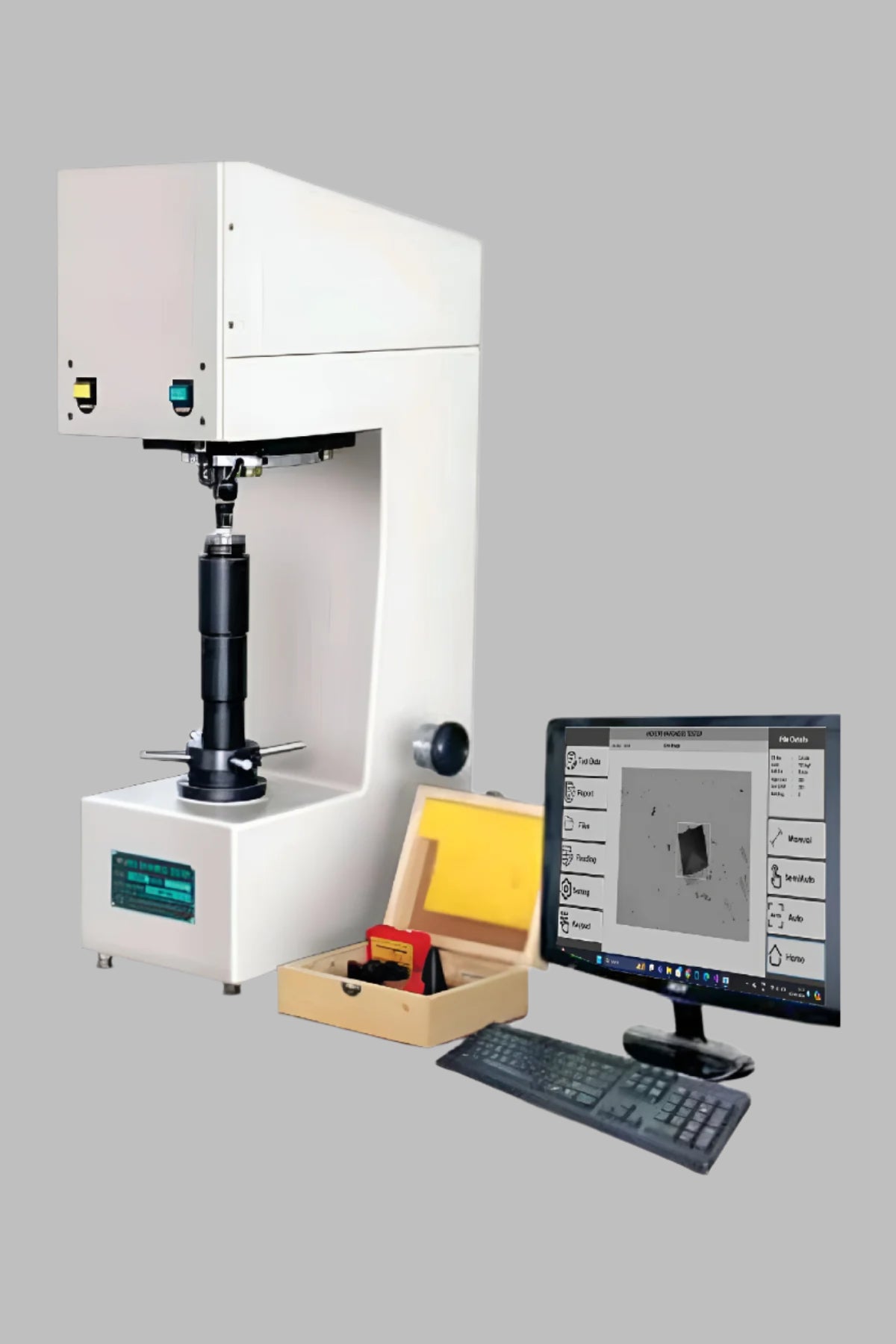

ASI Computerized Vickers Hardness Testing Machine - ASI-VM 50-PC

Features :

Computerized (PC-based) Vickers Hardness Testing Machine

Direct & accurate measurement of Vickers hardness number using "State of the art" image processing technology.
Wide testing range – from soft metals to the hardest alloys
High accuracy and repeatability of measurements across all load levels
Fast measurement cycle, resulting in increased productivity for finished components.
Small size of indentation makes it a non destructive testing on finished components.
Motorized loading and unloading for ease of operation
Small loads allow testing on thin sheet metals.

View full details

Application :

The ASI Computerized Hardness Tester provides a simple and highly accurate method for producing and automatically measuring diamond impressions to determine the Vickers Hardness Number (VHN). These testers are ideal for assessing the hardness of precision metallic components across a wide testing range—from soft to hard materials. Their accuracy and reliability have earned them broad recognition and acclaim.

The testers are designed in strict compliance with IS 1501-2:2013 standards.

Technical Specifications :

Test Loads	5,10,20,30,50 kgf.
Maximum test height (mm)	200
Scale least count (mm)	0.001
Diagonal measuring range (mm)	0.05 to 0.4
Throat Depth (mm)	135
Machine dimension (mm)	L 585 x W 290 x H 860
Weight (approx)	70 kg.
Power supply	220 VAC, 50 Hz, 1-Ph.

Standard Accessories :

Item	Qty.
Standard Test Block	1 No.
Diamond indenter	1 No.
Weights	1 Set
Flat Anvil	1 No.
Vee-type anvil (Small & Big)	1 No. each
Spanners	1 Set
Electric Cord & PC interface cord	1 No. each
USB device for Video	1 No.
Vicksys software CD	1 No.
Instruction Manual	1 Book
