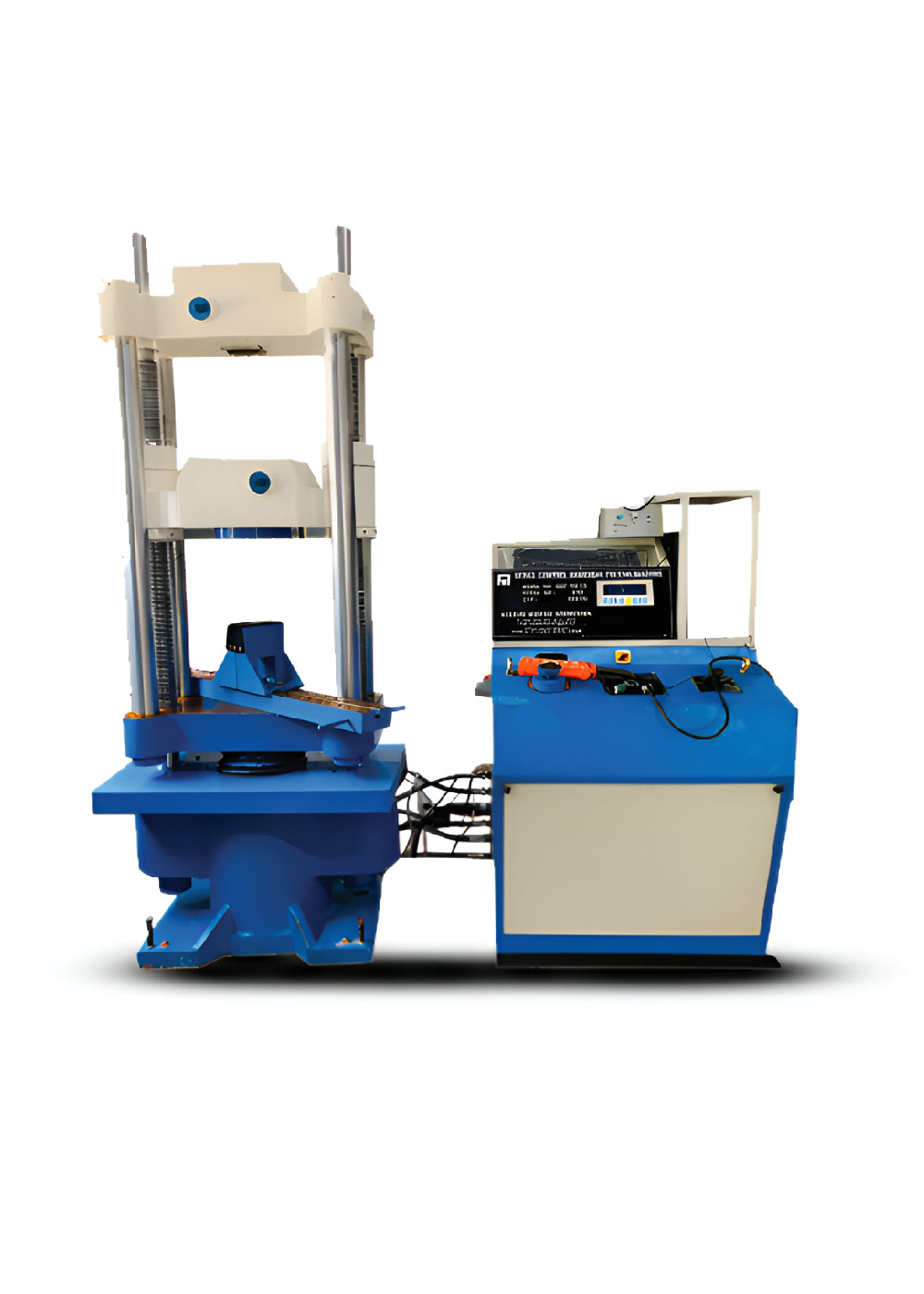

ASI Computerized Universal Testing Machine Capacity-200 Kn - AMT-20E

DESCRIPTION:

The ASI Model AMT-20E is the latest and highly sought-after computerised version of the
Universal Testing Machine (UTM), engineered for precision testing of metals and various other materials under Tension, Compression, and Bending/Transverse loads. The machine operates conveniently through a Mouse and Keyboard, displaying vital test results such as Breaking Load and Displacement on the monitor. The integrated software offers clear, step-by-step on-screen instructions for easy operation. (Standard accessories included in the mechanical version are also supplied with this model.)

Power Requirement:
Operates on 415 Volts, Three Phase, 50 Hz AC Supply.

TESTING CAPABILITIES ACCESSORIES:

For Tension Tests:
• Clamping jaws for round and flat specimens.
For Compression Tests:
• Pair of hardened, ground, and polished compression platens (120 mm Ø).
 • Bottom platen marked with guidelines to ensure accurate specimen alignment.
For Bending/Transverse Tests:
 • Adjustable roller table with mandrel.
 • Includes multiple punch radii for versatile testing.
