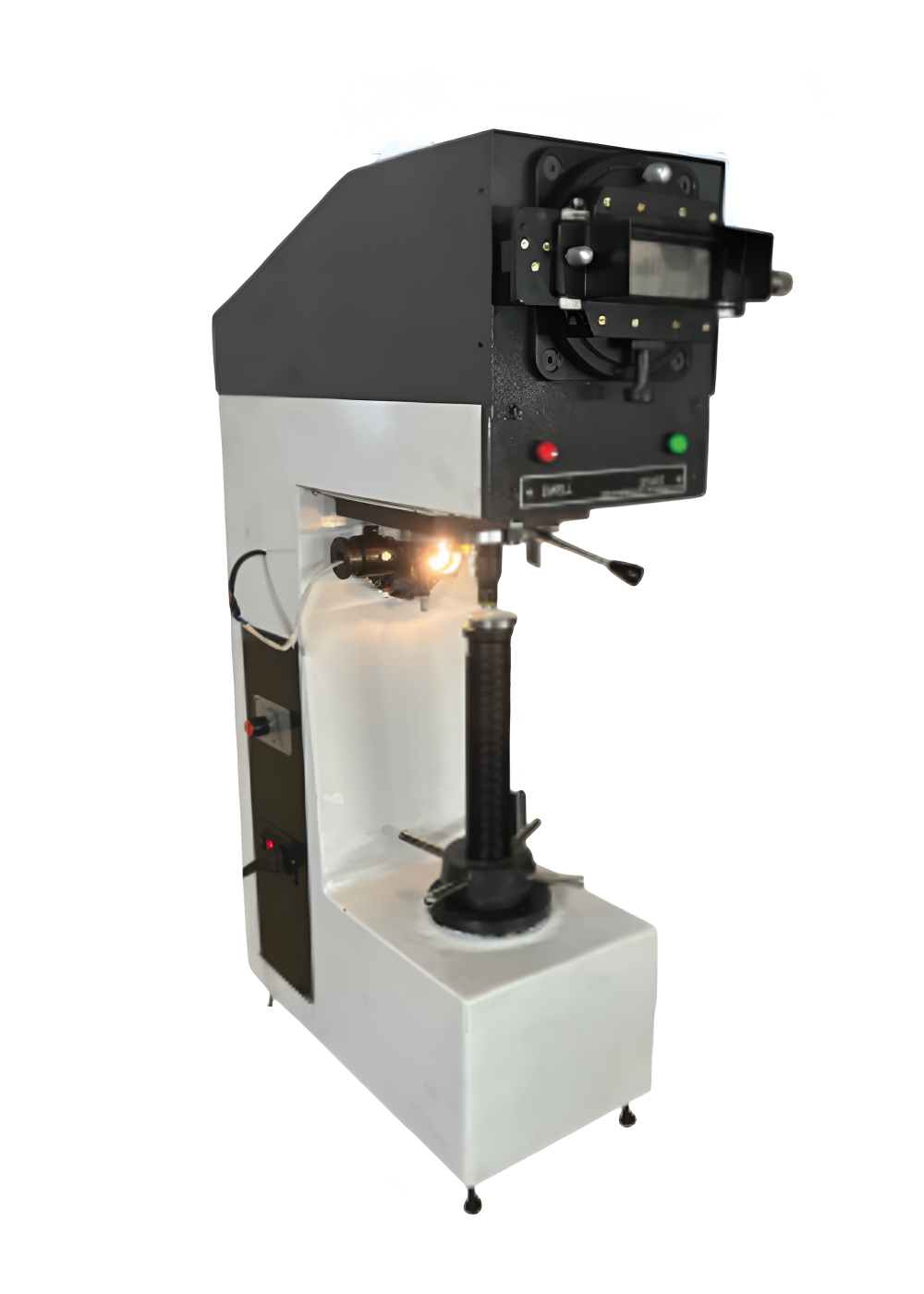

ASI Combined Vickers / Brinell Hardness Testing Machine - ASI-BV-250

ASI Combined Vickers / Brinell Hardness Testing Machine - ASI-BV-250

Features

Vickers Hardness Tester Model ASI-BV-250, are suitable for Vickers and Brinell Hardness of steel and other metals. These machines are designed and manufactured for very high accuracy, reliability and ease of operation. The selection of load is effected with the push button control system. The measurement of diagonal/diameter of indentation is done with the help of built-in option system with graduated readout with Micrometer. After taking indentation on the work piece, the objective lens is automatically swiveled into position and image of indention appears on the focusing screen fitted of the machine. A push button is through hand lever. This machine conforms to IS 1754- 1986 for Vickers and is 2281-1983, BS-240 for Brinell Test.

Read more
View Catalogue Get Latest Price

View full details
Technical Data - ASI-BV-250
Loads (kgf.) 5, 10, 15, 20, 30, 40, 50, 60, 100 & 120
(Loads for Vickers): 15.625, 31.25, 62.5, 187.5, 250
(Loads for Brinell)
Optical Magnification 35X, 70X, 140X
Maximum Test Height (mm) 250
Sweep of Machine Frame (mm) 150
Weight Approx. (kgs) 180
Dimensions (L × W × H mm) 660 × 320 × 990
Connected Load 0.1 KVA, 1 Phase AC, 220V, 50Hz
• Loads can be supplied in Newtons also
• Least count of optional system 0.0005mm
Measuring Range w.r.t Selected Optical Magnification
35X 0 – 3.2 mm
70X 0 – 1.6 mm
140X 0 – 0.8 mm
Included Accessories
Flat Table of 100mm Dia. 1 No.
Vee Table for Specimen 6 to 80mm Dia 1 No.
Vicker Diamond Indentor 1 No.
2.5 mm Ball Indentor 1 No.
5 mm Ball Indentor 1 No.
Vicker Hardness Test Block 1 No.
Brinell Hardness Test Block 1 No.
Electric Cord 1 No.
Instruction Manual 1 Book
2.5 mm Steel Balls 5 Nos.
0.5 mm Steel Balls 5 Nos.
