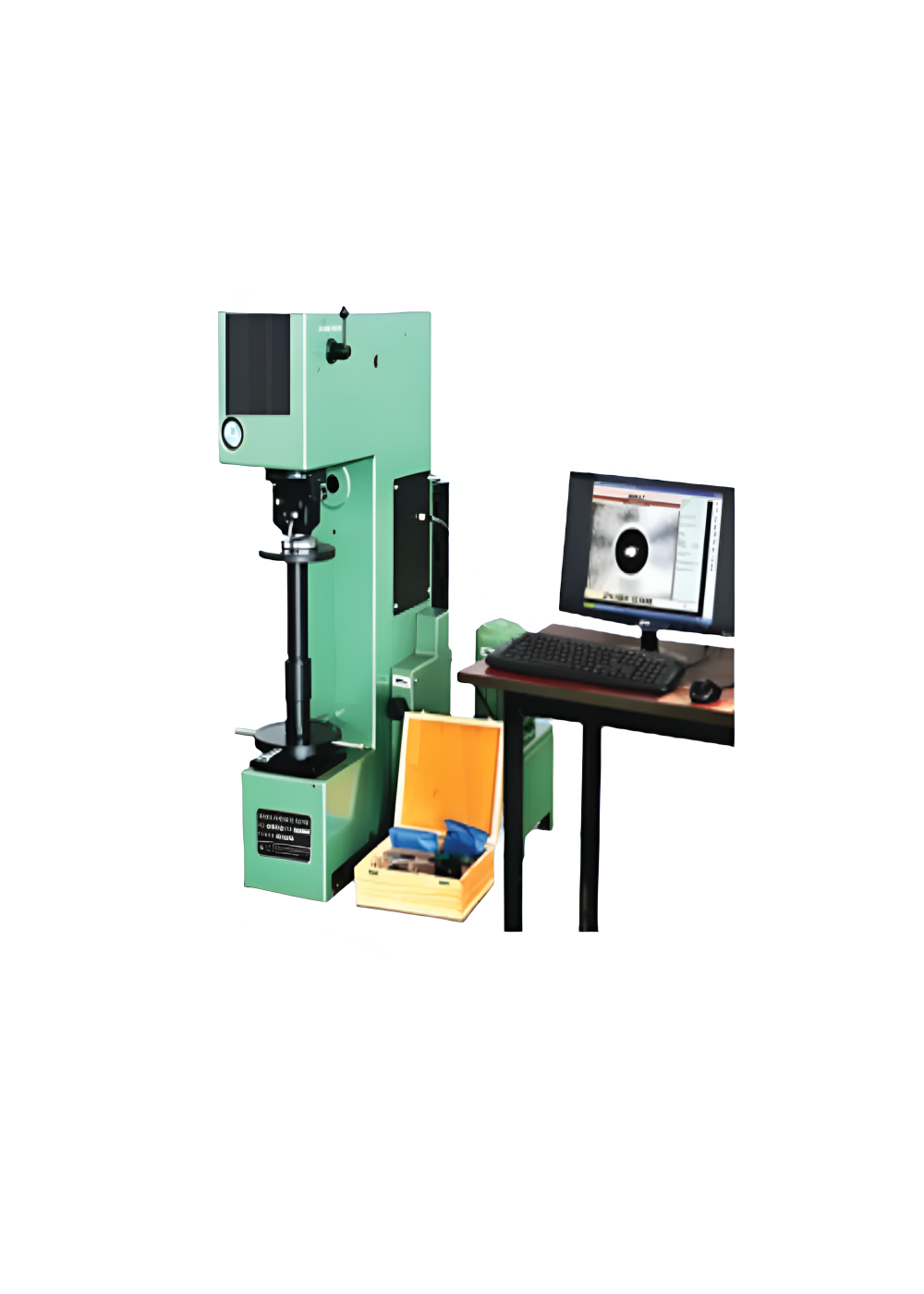

ASI Brinell Hardness Tester Cap.3000 Kgf (Computerized) - AMT-B-3000 PC

ASI Brinell Hardness Tester Cap.3000 Kgf (Computerized) - AMT-B-3000 PC

Features

B-3000 PC computerized Brinell Hardness Tester has a C Type frame. The job is
positioned o the test table and lifted by the wheel to touch the support plate.
Required load is applied on the and removed by operating Load/Unload knob
provided on machine at the bottom side of load frame. The timely indexing of
Indentor is automatic.
On removal of load the optics will transfer the image of indentation to CCD, The image
is further digitalized and processed by PC for measurement. The diameter of the image
be measured automatically/manually to give the Brinell Hardness Value.

THE TEST REPORT CONSISTS OF MACHINE, SAMPLE AND TEST DETAIL ALONGWITH.

  1. Mean diameter
  2. Brinell Hardness Value
  3. Bitmap image
  4. Low/High limits of acceptance and accept or reject status.

Read more
View Catalogue Get Latest Price

View full details
Standard Accessories and Features
STANDARD ACCESSORIES
Item Description
Testing Machine dia 200 mm – 1 no.
Testing Table dia 70 mm with V groove for round jobs, 10 mm to 80 mm dia – 1 no.
Ball holder 5 mm – 1 no.
Ball holder 10 mm – 1 no.
Test Block HB 5/750 – 1 no.
Test Block HB 10/3000 – 1 no.
Steel balls 5 mm and 10 mm dia. – 5 nos. each
Allen Spanner – 1 Set.
Instruction Manual – 1 Book.
Printer (Extra Accessories)
FEATURES
Feature Description
Fully computerized system for indentation measurement and display
Accurate measurements of Brinell hardness through matched Optics, CCD Camera, Hardware and Software using advanced image processing technology.
Wide range of testing to IS 2281-1983.
Hydraulically loading/unloading system provided with load/unload button for operation.
Windows based software system.
Three modes of measurement, Manual, Auto & Semi-auto.
In auto mode the image is scanned for measurement and hardness is displayed automatically.
In semiautomatic mode user can click on indentation image & hardness is automatically displayed.
In manual mode user can measure diameter directly from the image.
Macro and Micro adjustment facility provided in manual mode for fact accurate encircling of the image to be measured.
Calibration mode is provided with password protection.
Batch testing facility is provided
