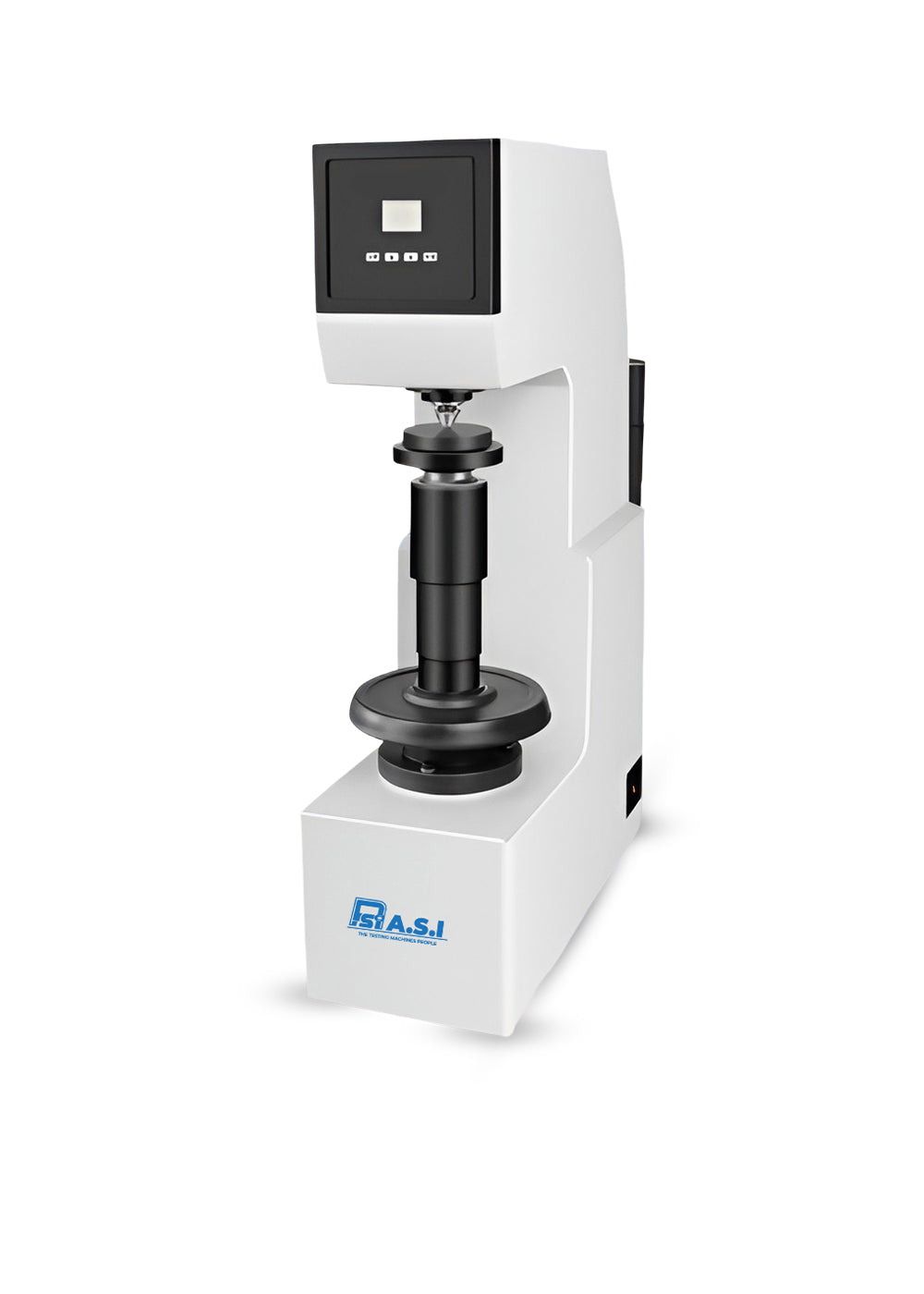

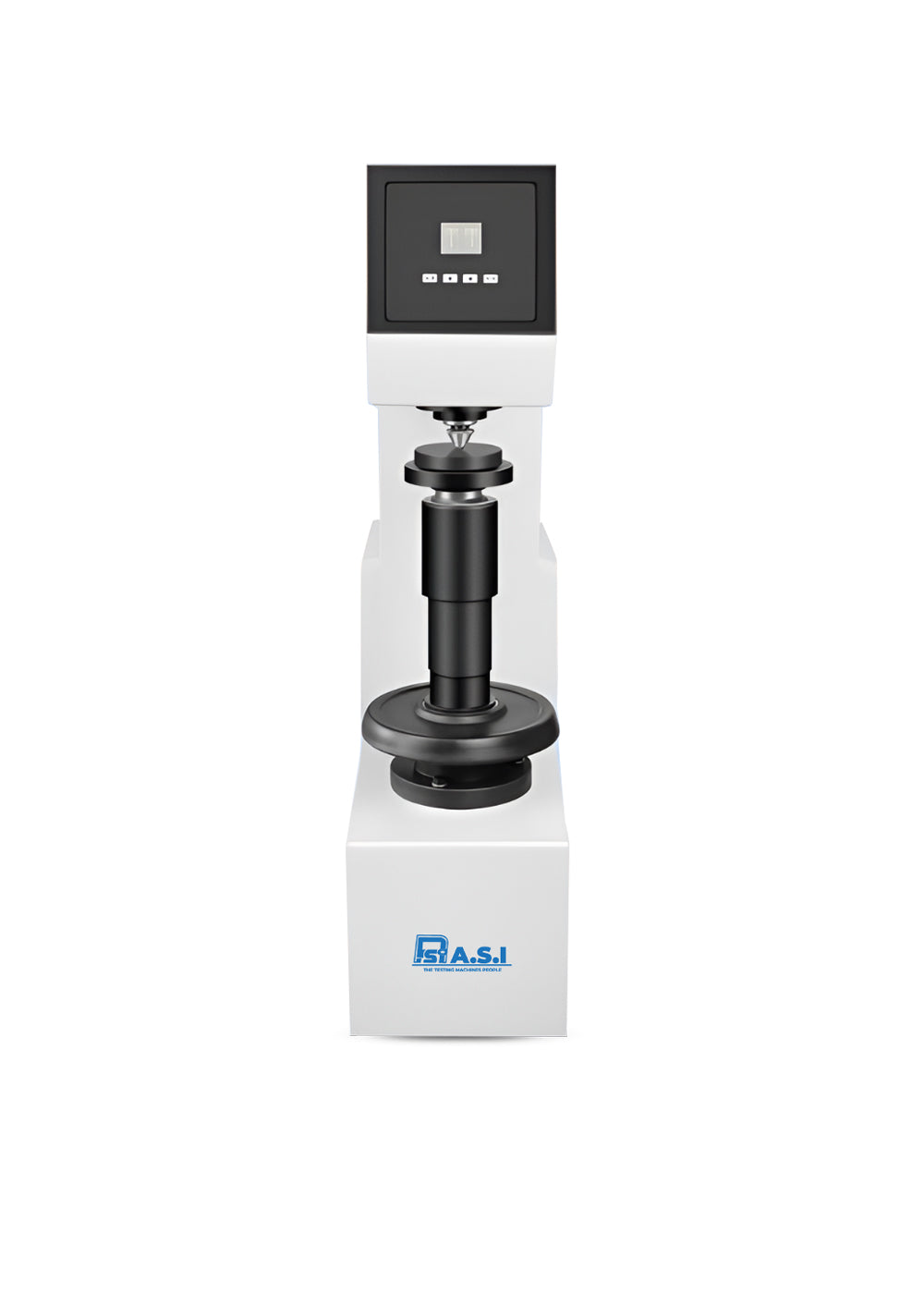

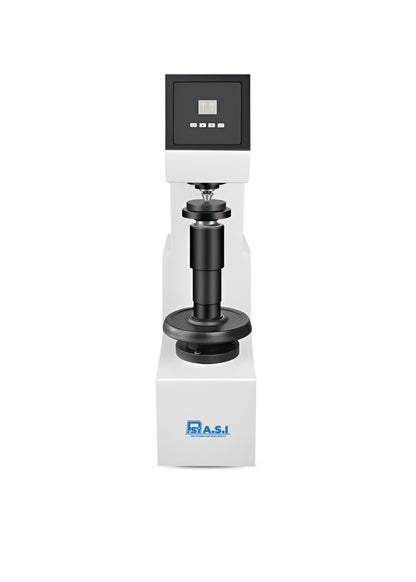

ASI Brinell Hardness Tester ASI-HB-3000F

Advantages:

1. Traditional dead weights structure, can work in more harsher environments.
2. Automatic load - dwell - unload main test force.
3. With 6 grades test force, test force from 187.5kgf to 3000kgf
4. One time casting shell, not metal sheet welding one by one, structure more stable, ensure test result with more higher accuracy;
5. Can work with Brinell Indentation Image Measurement software system, support on PC do auto measurement or manual measurement, and generate test report automatically.
6. Operation steps: 1) Put specimen on working table, then manual load pre-load, then machine automatic load main force (load - dwell - unload automatically), make an indentation on specimen; 2) Put the specimen under portable measuring microscope to measure D1, D2 value; 3) Check hardness table to get hardness value.

Application Fields:

1. Quality control of Industrial production (machinery manufacturing, metallurgy plants, etc.)
2. Research & Inspection of Inspection Institution and universities laboratories.
3. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, etc.
