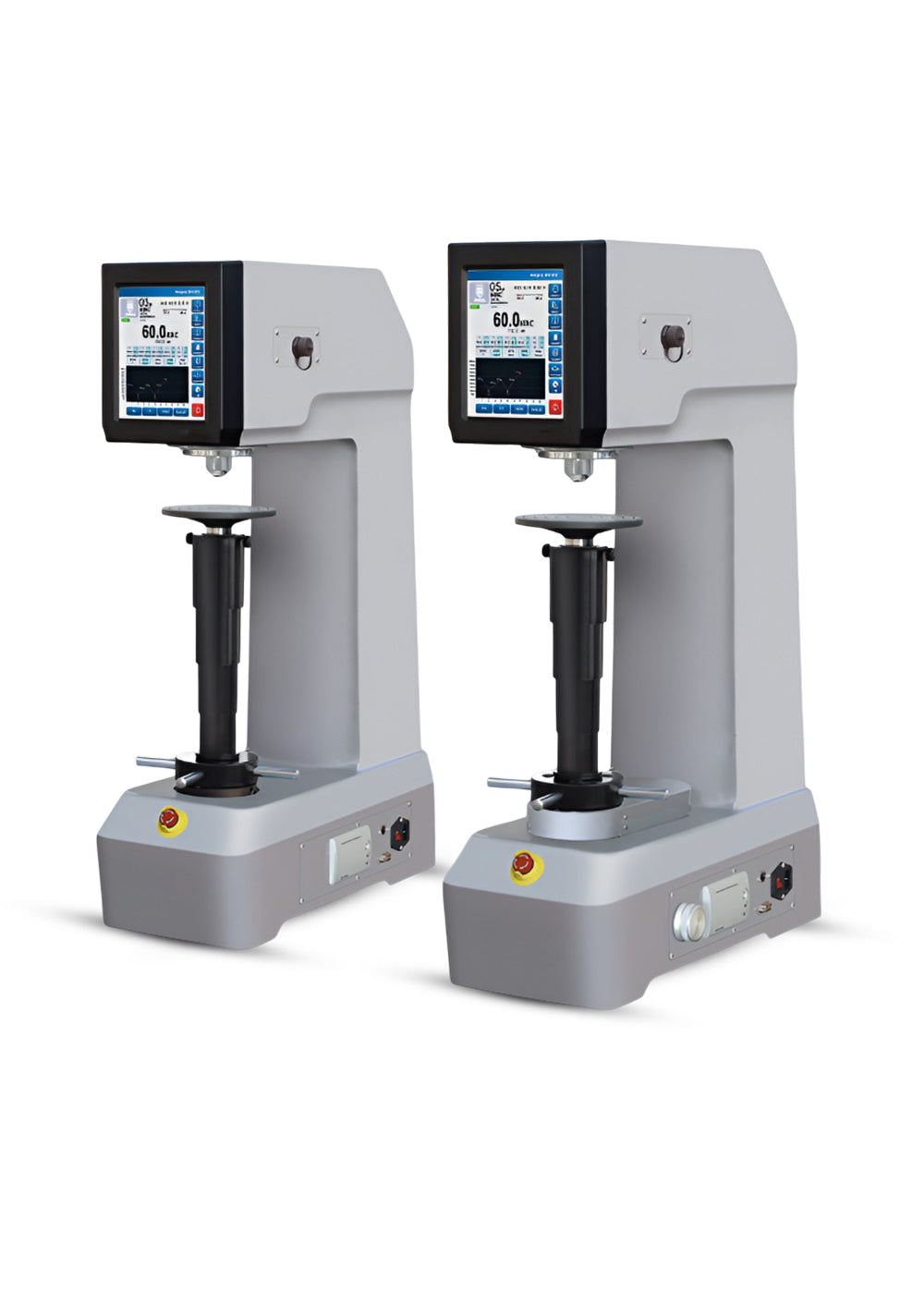

ASI Automatic Full Scale Rockwell Hardness Tester, AMT-5D

ASI Automatic Full Scale Rockwell Hardness Tester, AMT-5D

Product Overview

The ASI AMT-5D is an advanced automatic Rockwell hardness tester designed for precise and efficient testing of metallic materials. Supporting both ordinary and superficial Rockwell scales, it offers automated operation for reliable hardness measurements in metallurgical applications.

Key Features

·         Comprehensive Testing: Supports 15 ordinary Rockwell scales (60, 100, 150 kgf) and 15 superficial Rockwell scales (15, 30, 45 kgf) for versatile testing.

·         Multiple Indenters: Includes diamond cone indenter and ball indenters (1.5875 mm, 3.175 mm, 6.35 mm, 12.7 mm) for diverse material types.

·         Automated Operation: Features automatic loading, dwelling, and unloading with a high-precision loading system for consistent results.

·         High Accuracy: Measuring range of 20–88 HRA, 20–100 HRB, 20–70 HRC, and 70–94 HR15N, with 0.1 HR resolution.

·         Digital Interface: LCD display for real-time hardness values, scale selection, and data output via RS-232 or USB for analysis.

·         Robust Design: Stable cast iron frame with max test height of 400 mm and throat depth of 160 mm, suitable for large and small samples.

Applications

Ideal for quality control and research in industries like automotive, aerospace, and metallurgy, testing the hardness of metals, alloys, and heat-treated surfaces.





Read more

View full details
AMT-5D Main Parameters

Main Parameters

Specification AMT-5D
Testing force Ordinary Rockwell test force: 60, 100, 150kgf (588.4, 980.7, 1471N)
Surface Rockwell test force: 15, 30, 45kgf (147.1, 294.2, 441.3N)
Indenter specifications Diamond cone indenter, 1.5875mm ball indenter,
3.175mm ball indenter, 6.35mm ball indenter,
12.7mm ball indenter
Number of rulers 15 types of ordinary Rockwell hardness scales,
15 types of surface Rockwell hardness scales.
Test force application method Automatic loading, holding and unloading test force
Test force holding time 0~999
Hardness value resolution 0.1HR
Maximum height of test piece 320mm (protective cover needs to be removed, 225mm before removal)
Distance from center of indenter to machine wall 200mm
Hardness value conversion standard ASTM_E140-12BE, ISO_18265-2013, GB/T1172
Language type 12 languages
Equipped with test bench Large flat test bench, small flat test bench, V-shaped test bench
Power supply AC220V/50Hz
Net weight 105kg
Dimensions (length × width × height) 580 × 270 × 870mm
