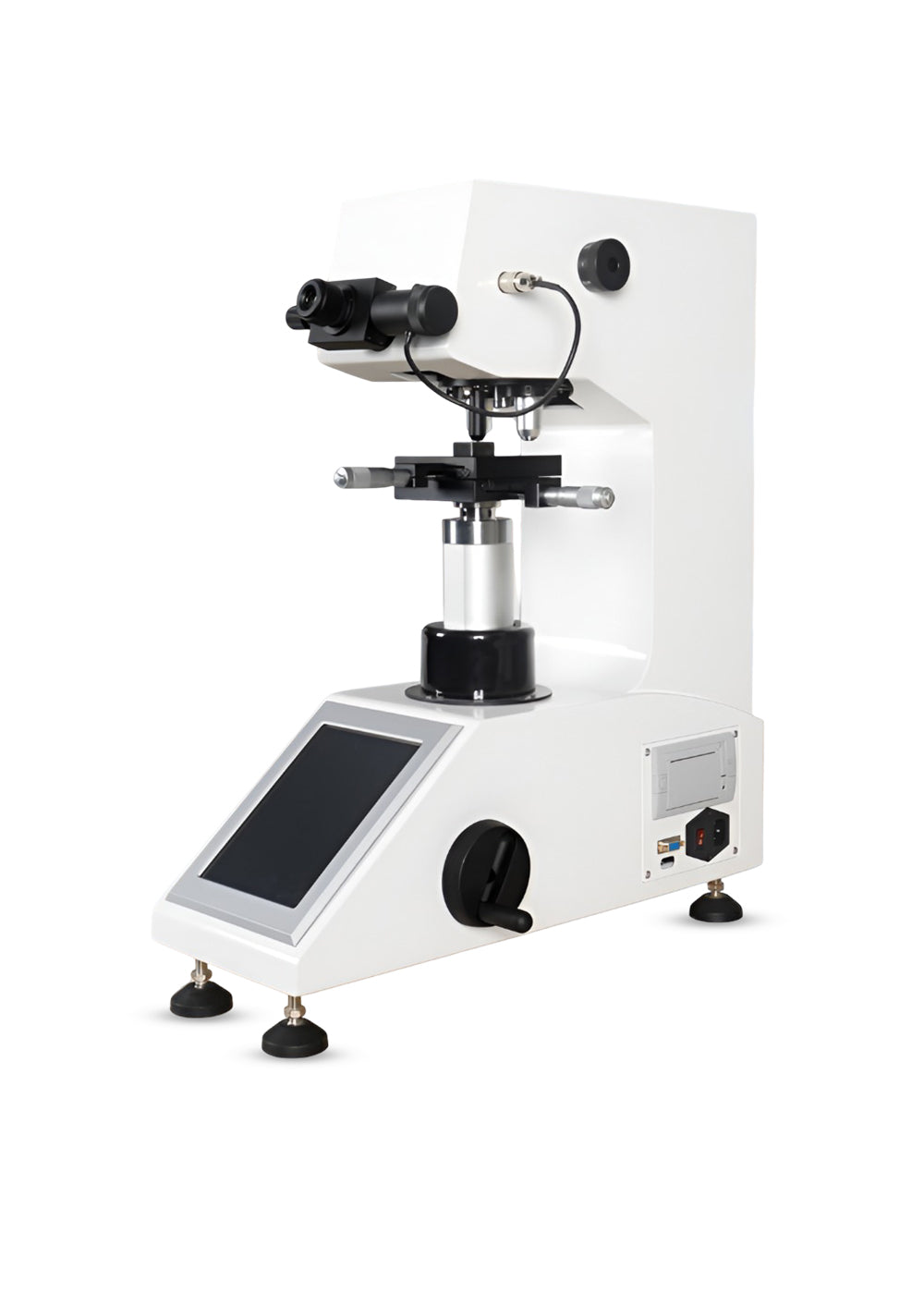

| Model No. | ASI-DVK-1AT |
|---|---|
| Turret | Automatic Turret |
| Test mode | HV / HK |
| Testing force | 10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N), 200g (1.96N), Testing force 300g (2.94N), 500g (4.9N), 1000g (9.8N) |
| Hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Conversion scale | HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW |
| Test range | 8HV~2900HV |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Objective | 10X (measure); 40X (measure) |
| Eyepiece | 10X digital eyepiece with built-in encoder |
| Total Magnification | 100X (measure); 400X (measure) |
| Hardness reading | 8″ touch screen, data can be saved |
| Data output | Inbuilt printer |
| Data statistic function | Testing data, max-min data, average data, etc., all can display on screen |
| RS 232 port | Used for software (transfer test data to computer or software control machine); Software for optional purchase |
| Loading speed | ≤50μm/sec |
| Min. measuring unit | 0.01μm |
| Duration time | 1–99s (each step is 1 second) |
| Objective lens center and indenter center | Coincidence accuracy error < 1μm (objective lens center position can be adjusted) |
| X–Y Testing Table | Dim.: 100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm |
| Test space | Maximum height: 100mm (vertical); Throat depth: 130mm (horizontal) |
| Data statistic function | LED Cold light source (continuous use for 24 hours, no heat generated on screen; stable working; lifespan up to 100,000 hours) |
| Machine size and N/W | 540×260×650mm / 50kg |
| Packing size and G/W | 710×420×627mm / 68kg |
| Power Supply | 220V ± 5%, 50/60Hz (110V available) |
| Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734 |
