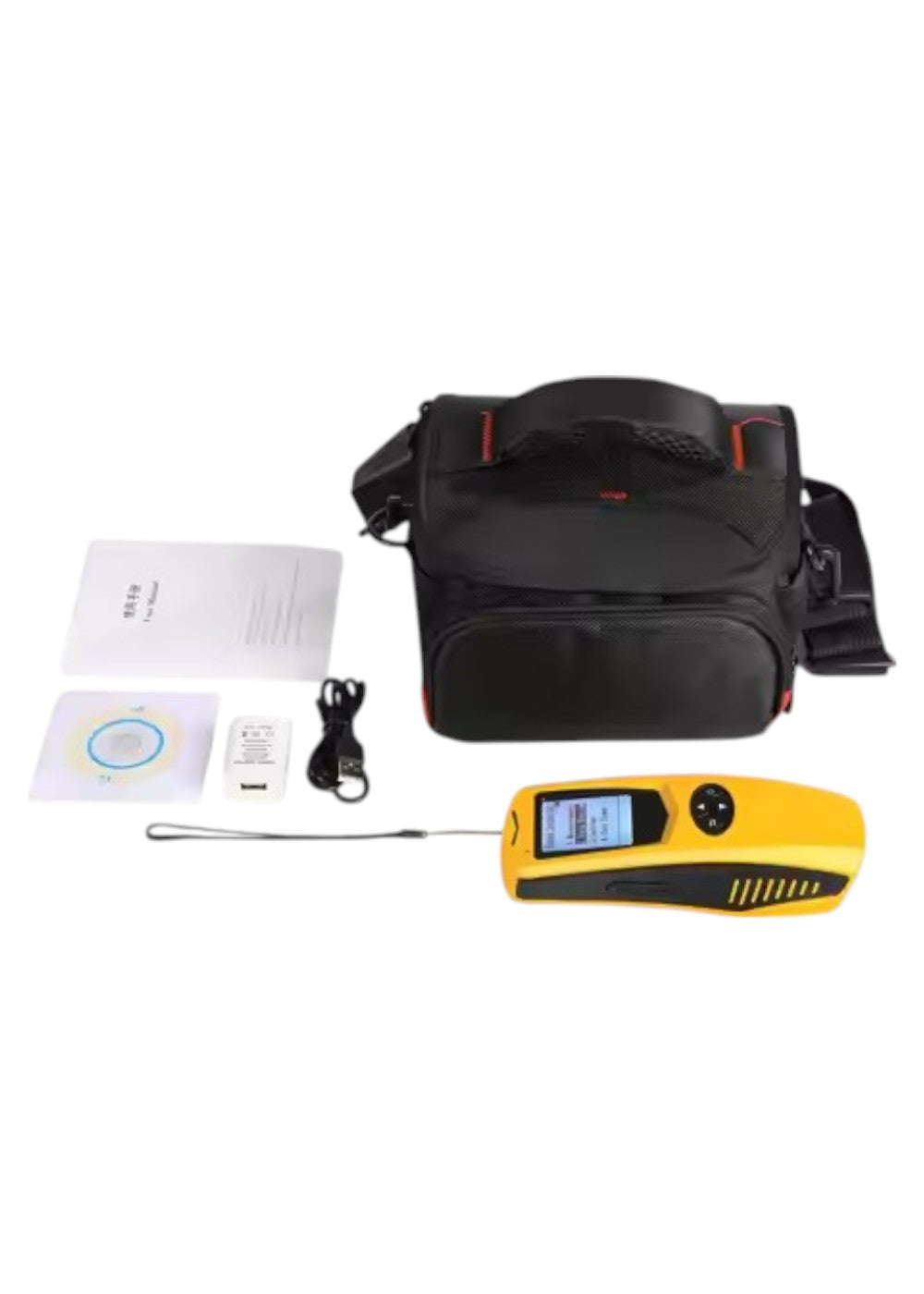

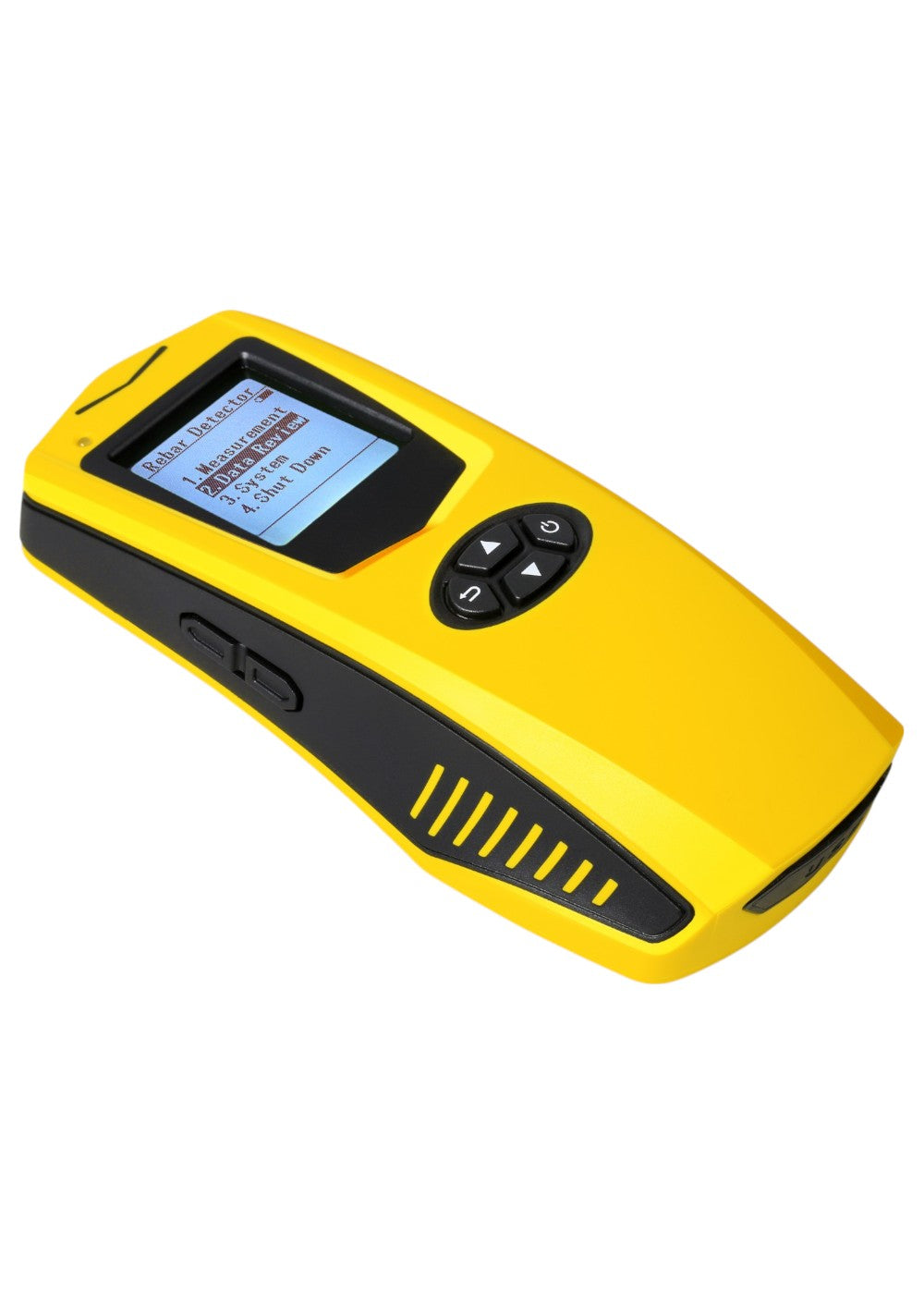

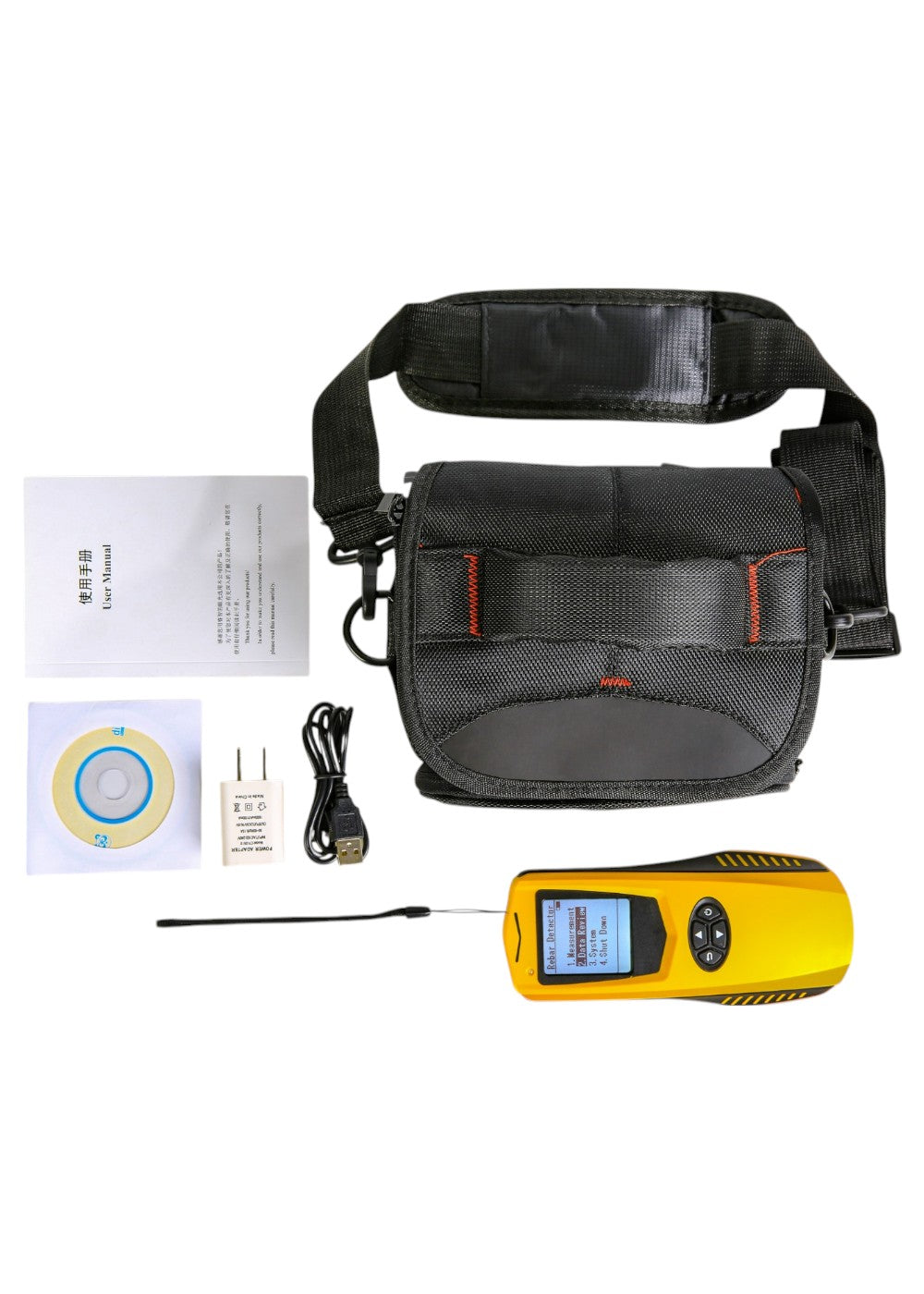

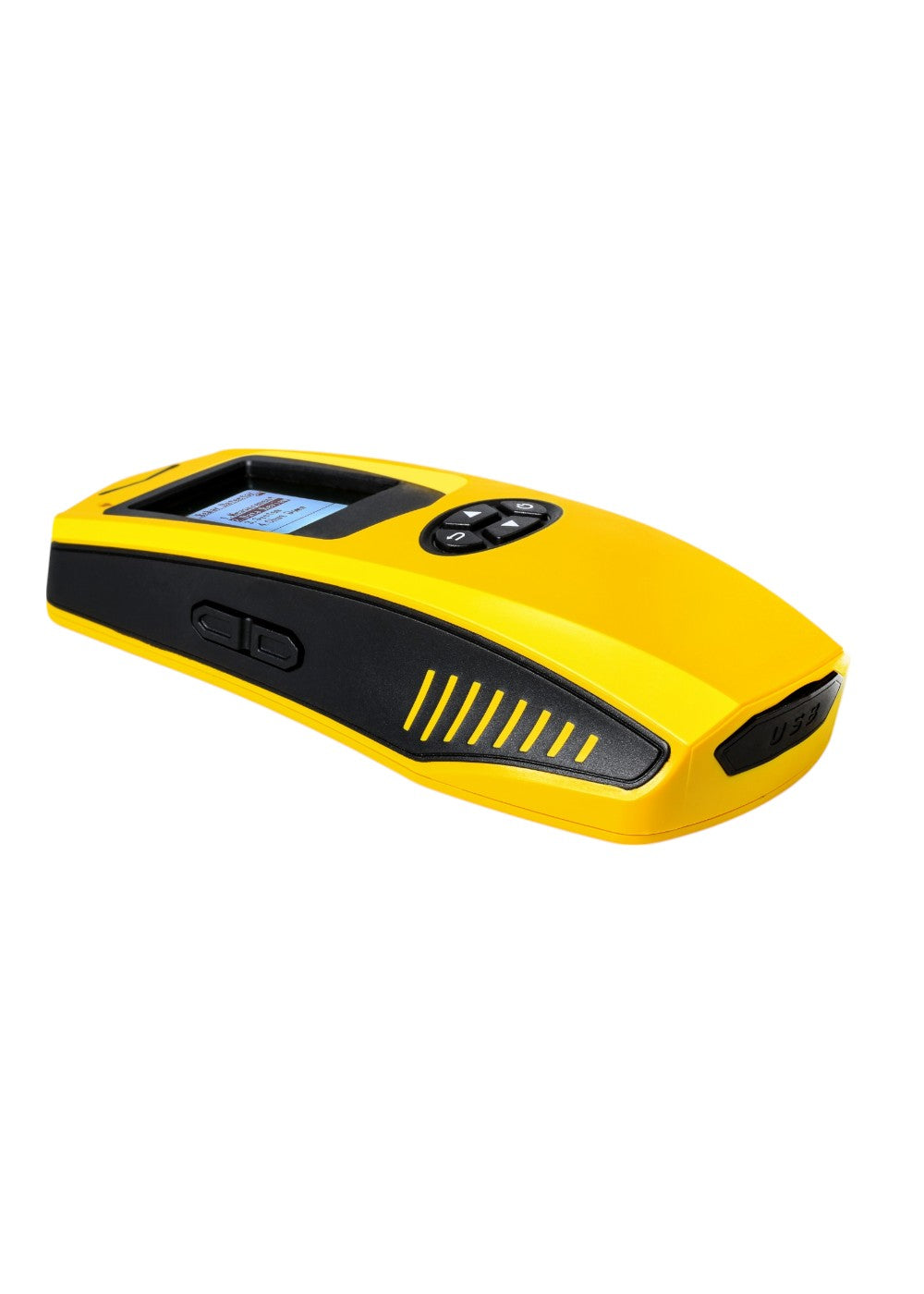

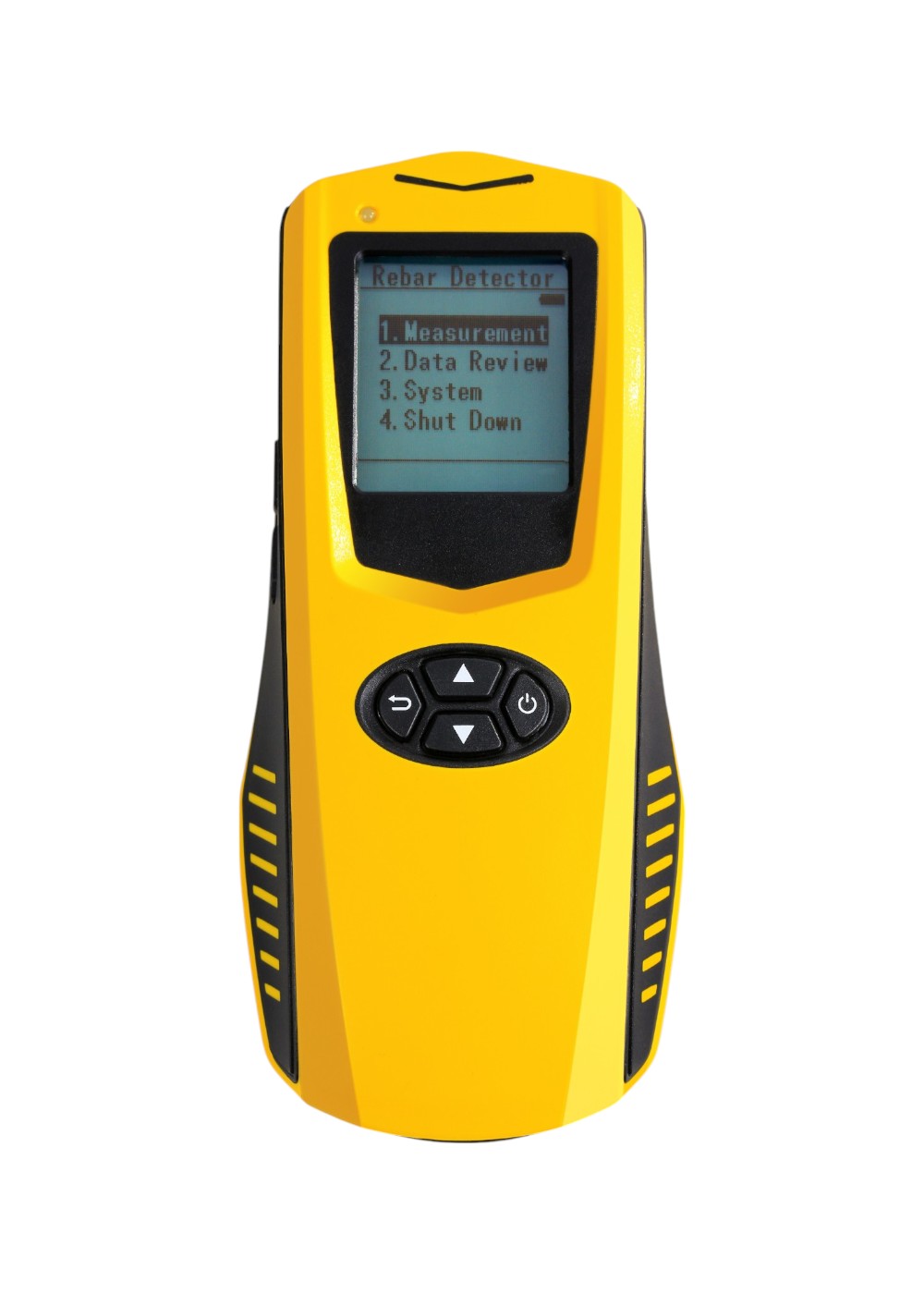

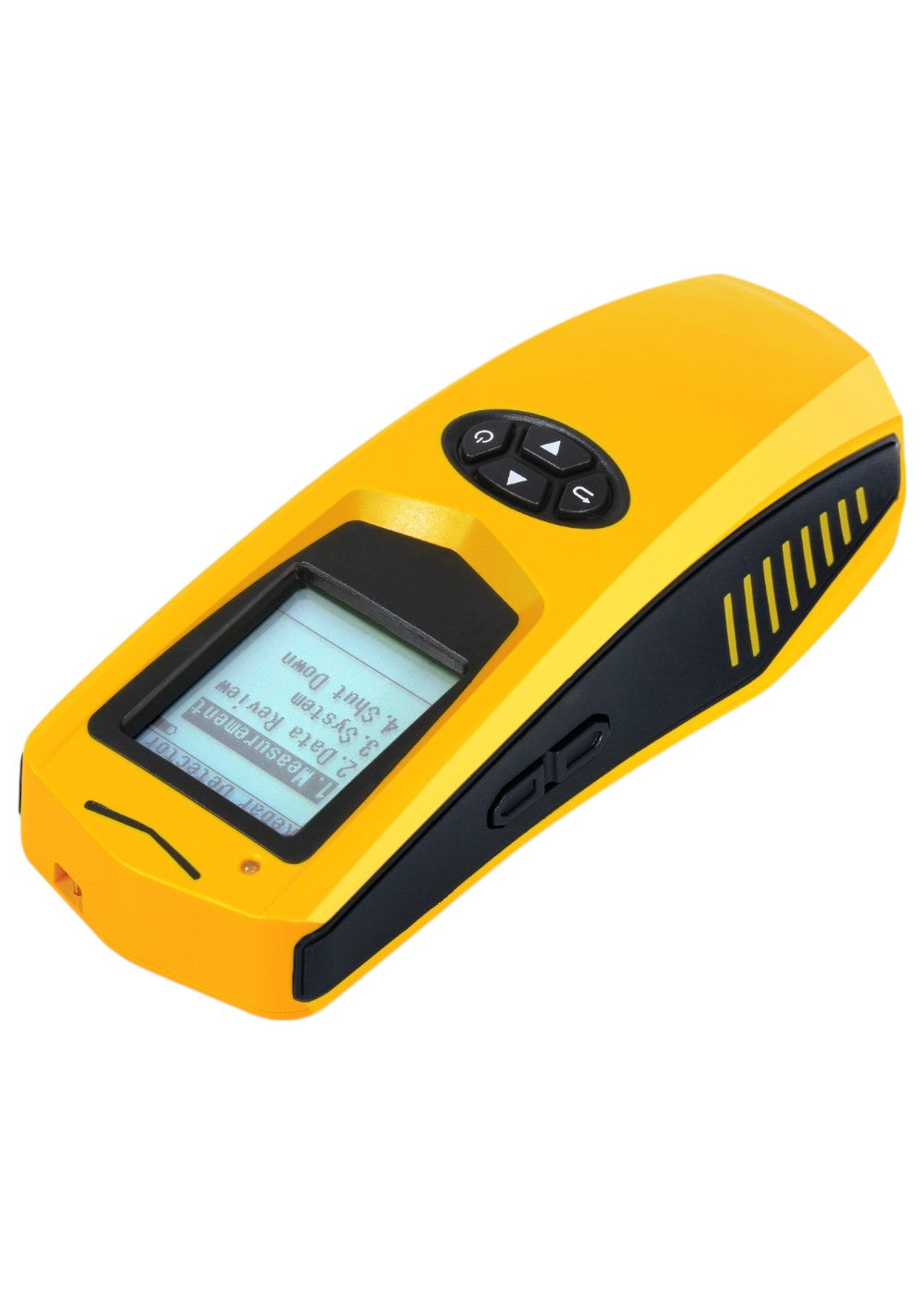

ASI-620XH Rebar Scanner

Rs. 35,000.00

Sale Sold out

Testing the location, distribution, direction, and diameter of the rebar and the thickness of cover in concrete structure projects.
Inspecting and accepting concrete structural construction quality.
Evaluating the quality of construction.
Establishing the location of rebar before drilling, cutting and coring operations.
Testing the distribution and direction of electric cables, pipelines and metalwork inside walls and floors.
Testing the quantity of rebar when evaluating and developing the old structure, such as installation of furniture and air-condition.


Model	ASI-620XH Rebar Scanner
Diameter Measuring Range(mm)	φ6~φ50
Measuring Range (mm)	5~100
Thickness Measuring Accuracy(mm)	5~40 ±1
	41~60 ±2
	61~80 ±4
	81~90 ±5
	91~100 ±6
Diameter Measuring Modes	✓
JGJ Measurement	✓
Data Storage	USB transfer
Off Time	✓
Working Temperature	-10℃~42℃
