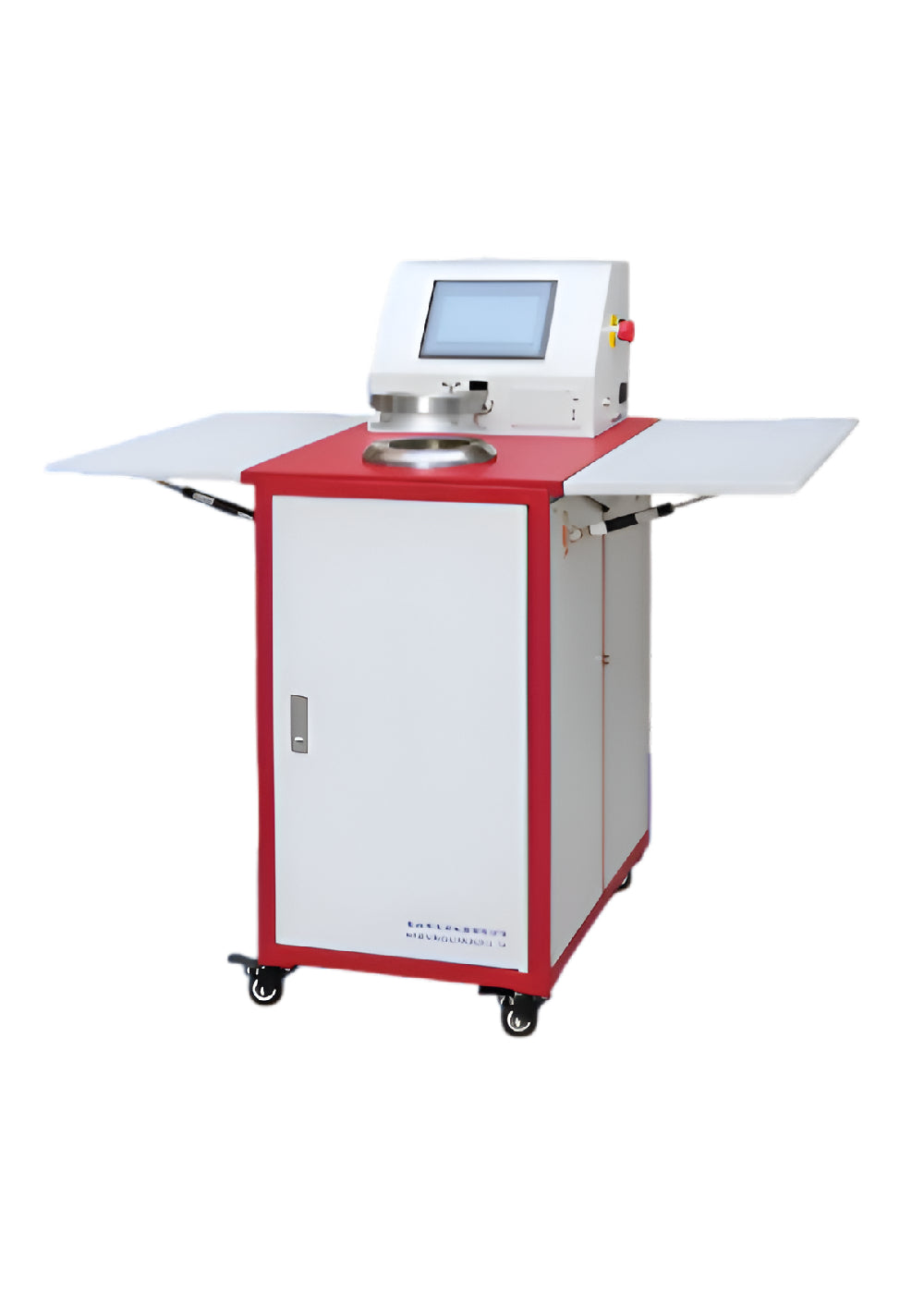

Air Permeability Tester - ASI-YG461E

Features

Touch screen control, Chinese and English menu, man-machine dialogue mode,
easy to operate.
Built in thermal printer, easy to quickly print test results on site.
Professional computer analysis software can realize two-way operation with computer, and can carry out report statistics, data analysis, etc.
High precision differential pressure sensor is adopted, with high precision and goop
repeatability.
The test parameters can be set directly by numbers, and the parameter units can be set according to the needs.
The flow cylinder is welded with seamless steel pipe, which is durable and equipped with door cover and lock device, which ensures the convenience of replacing nozzle and good air tightness.
The sample fixing device is controlled by the air cylinder, which can clamp the sample
automatically to ensure the tightness of the sample clamp.

Technical Specifications

Test pressure

1 ~ 4000 Pa (nozzle), 1 ~ 1000 Pa (sample), customizable up to 4000 Pa

Measurable air permeability

1 - 99999 mm/s

Measurement error

Measurable fabric thickness

≤ 12 mm

Suction volume regulation

Data feedback dynamic regulation

Test area fixture

Standard: 20 cm², 38.3 cm²
Optional: 5 cm², 50 cm², 100 cm², 50 mm (≈ 19.6 cm²)

Nozzle parameters

Code	0	1	2	3	4	5	6	7	8	9	10
Diameter (φ mm)	0.8	1.2	2	3	4	6	8	10	12	16	20

Data processing capacity

≤ 20 × 30 tests

Printer

Thermal micro printer

Data port

RS232 (upper computer communication)
