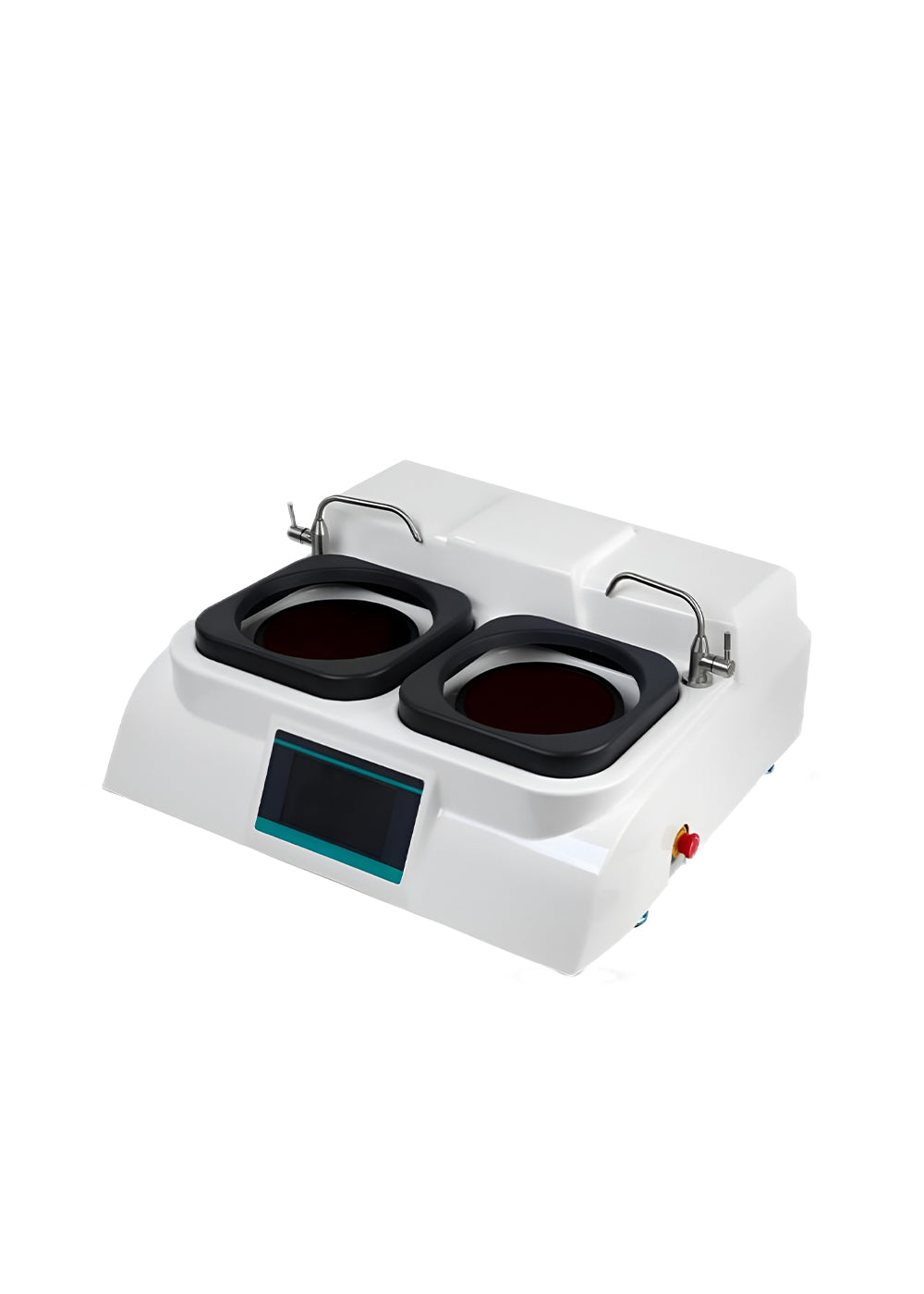

ADVANCED METALLOGRAPHIC GRINDING-POLISHING MACHINE ASI- eGP-2MT

ADVANCED METALLOGRAPHIC GRINDING-POLISHING MACHINE ASI- eGP-2MT

Work table and Indenter:
1. 7’’ Color Touch screen with menu stucture, operate vey easy;
2. Double independent work discs, in same time can do different ginding polishing work by ight and left disc, one eGP•2BMT is equivalent to two single disc machine, high working efficiency;
3. Multi-usage, metallographic specimen of coarse ginding, fine ginding, coarse and fine polishing, one machine to complete
4. Step less speed 50•1000rpm ˆ 8 constant speed design, setting more easier.
5. Easily manual replace magnetic anti-sticking disc, can make all kinds of sample of coarse and fine ginding, coarse and fine polishing all process (optional purchase)
6. Suppot different rotating direction: counterclockwise and clockwise
7. Low noise, stable working pefomance and beautiful outlook. The faucet adopts stainless steel 304 mateial, which has good corosion resistance

Read more

View full details

Technical Specifications:

Model AS1-eGP-2MT AS1-eGP-2BT
Screen 4.3" touch screen 7" touch screen
Working disc size Standard φ203mm / 8-inch (option:φ250mm) Two independent disc control
Disc control Two independent disc control -
Speed Stepless: 50-1000rpm (Constant speed: 300/min, 400/min, 500/min, 600/min, 700/min, 800/min, 900/min, 1000/min) (Constant speed can be set by clients) -
Rotate direction Clockwise - Anticlockwise (reversible) -
Speed control Touch screen -
Working mode Manual -
Motor power 0.55KW (0.25KW + 0.25KW) -
Power supply AC220V, 50Hz -
Dimension 860x810x470mm -
Weight 45kg -

Standard Accessories:

Item Quantity Item Quantity
Grinding ring φ203 2 pieces Water outlet pipe φ32 1 piece
Abrasive paper 2 pieces Water retaining ring 2 pieces
Polishing cloth 2 pieces Water inlet pipe 1 piece
Manual 1 piece Certificate 1 piece
```
