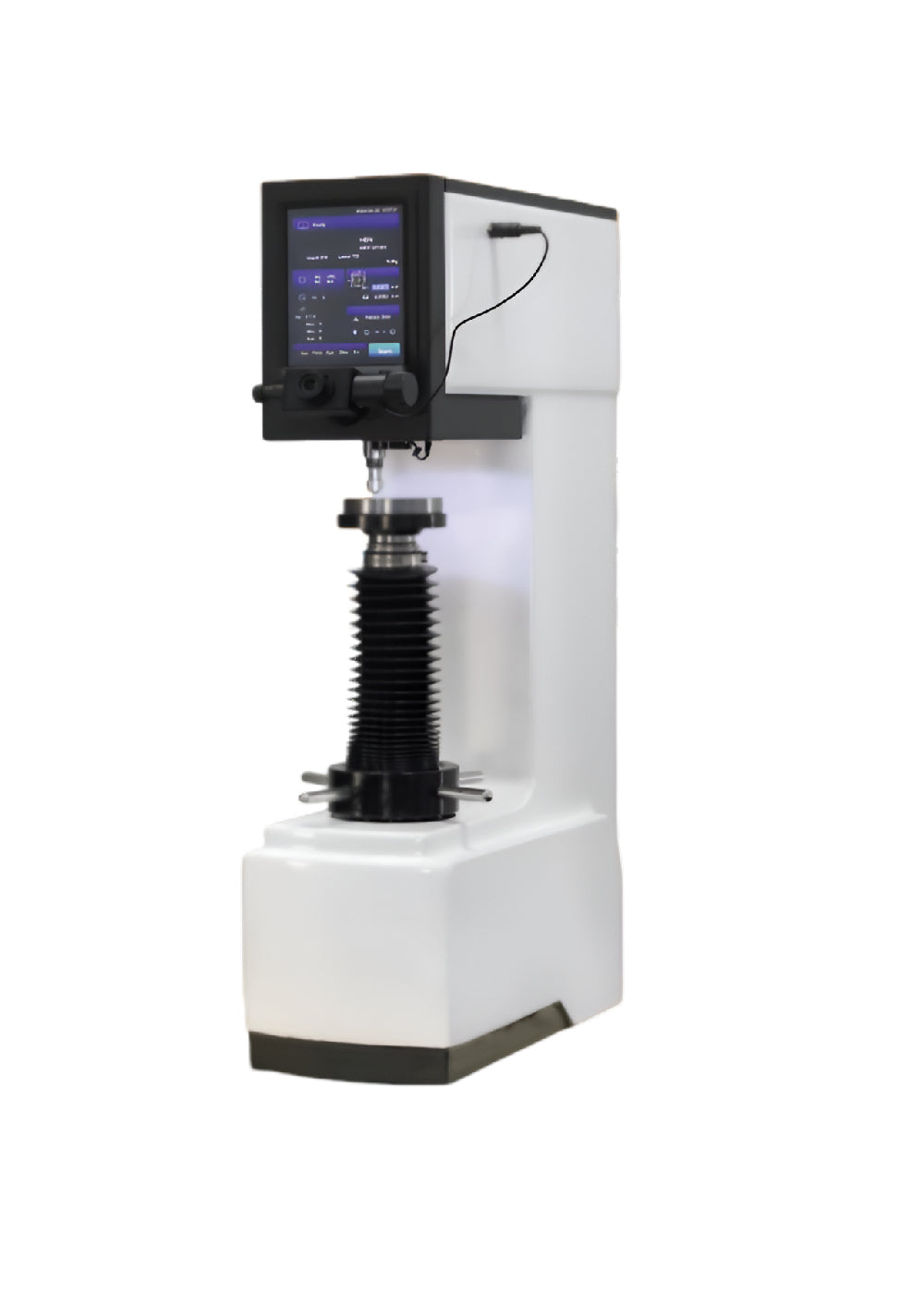

Advanced Automatic Turret Digital Brinell Hardness Tester - ASI-HB-501

Features:

1. Large test force range: 62.5Kgf to 3000Kgf

2. With 10 kinds of measurement scale

3. Closed-loop control, with high accuracy load cell, no need installs weights, easy installation and calibration.

4. Indenter can move down after press start key, no need manual give initial load. For batch inspection of the same size sample will very easily, just put sample on the work table, then press start key machine will automatic test, no need manual adjust screw rod. Makes testingwork more easier and high efficiency.

5.  Measuring indentation automatically, no need to focus

6. Hardness value display on screen, and with hardness conversion function

7.  One-time casting machine body with car painting design, structure more stable and looking more beautiful

8. Digital eyepiece with built-in encoder, just click the encoder button indentation length will input to machine automatically, and machine automatically calculate the hardness value.

9. Large test space: 150mm Depth (170mm depth for optional)

10. Touch screen interface, menu structure interface, more information display

11.  Modular design, easy maintenance

12.  Low noise test process, suitable work at in research labs, school, Industrial plant, etc.
