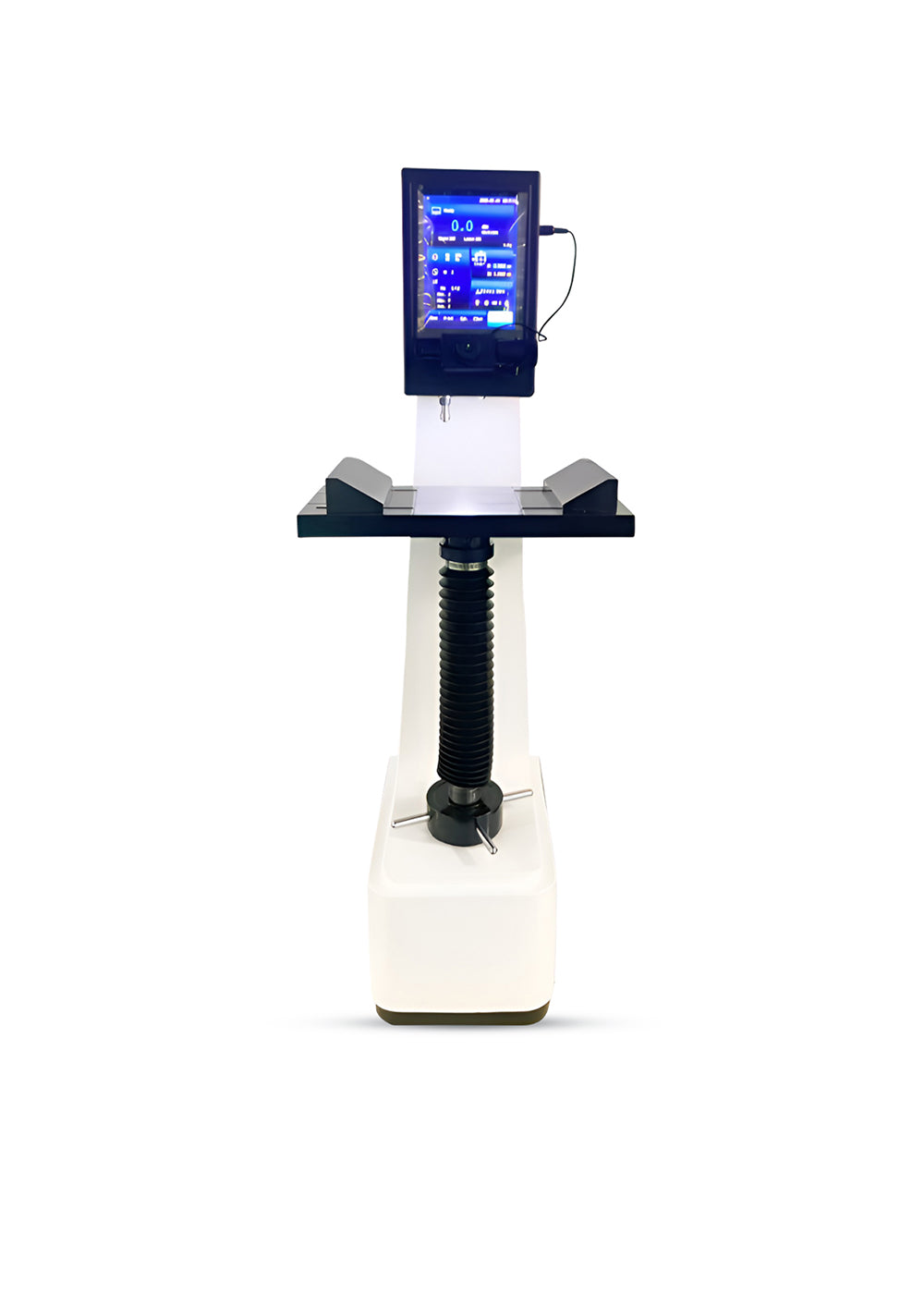

Advanced Automatic Turret Digital Brinell Hardness Tester ASI-HB-503

Features:
1. Large test force range: 62.5Kgf to 3000Kgf
2. With 10 kinds of measurement scale
3. Allowed sample height 500mm, indenter to machine body distance is 165mm.
4. Closed-loop control, with high accuracy load cell, no need installs weights,
easy installation and calibration.
5. Indenter can move down after press start key, no need manual give initial load. For batch inspection of the same size sample will very easily, just put sample on the work table, then press start key machine will automatic test, no need manual adjust screw rod. Makes  testing work more easier and high efficiency.

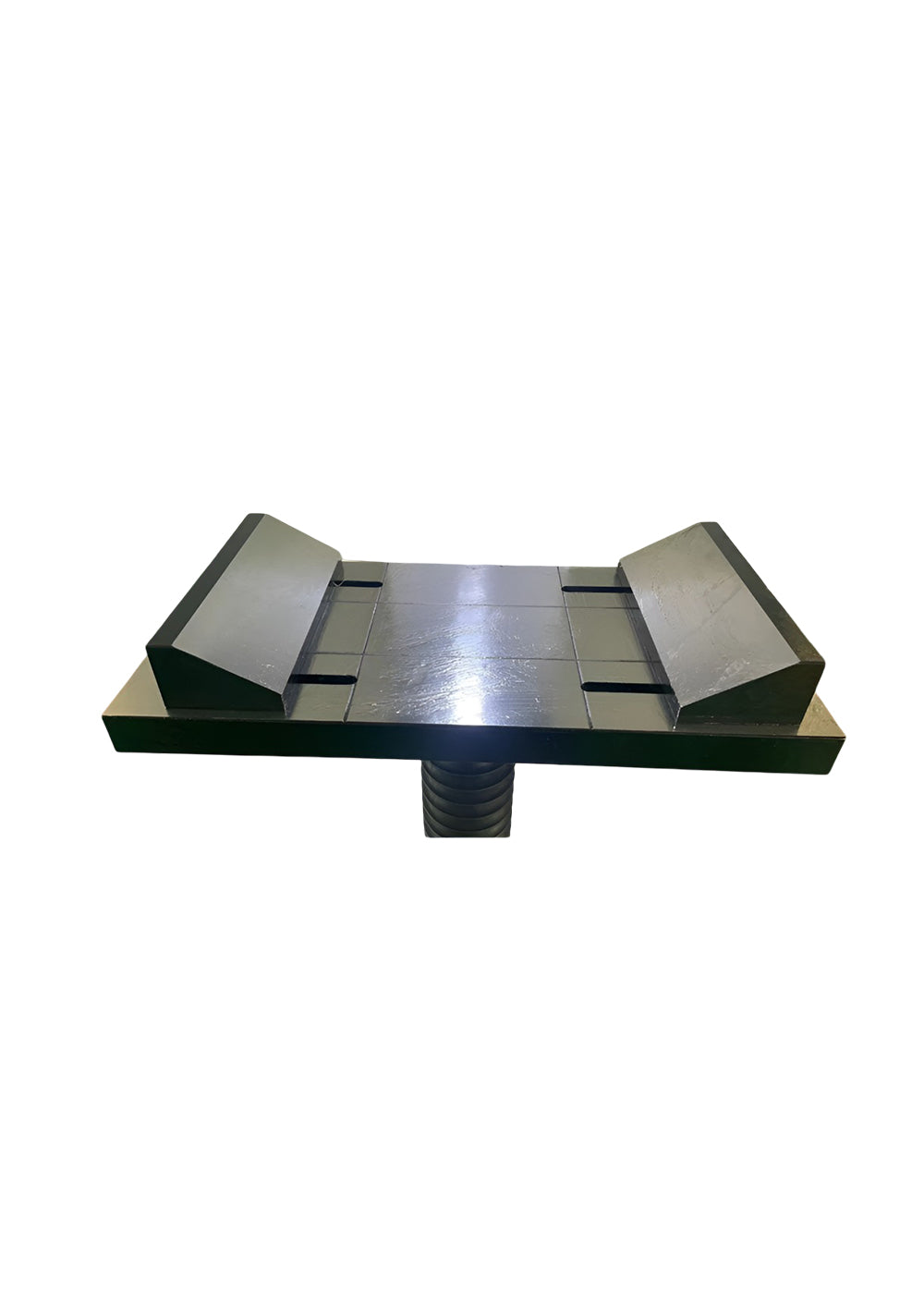

6. Table vice can be adjust distance for hole different size samples (Optional).
7. Measuring indentation automatically, no need to focus
8. Hardness value display on screen, and with hardness conversion function
9. One-time casting machine body with car painting design, structure more
stable and looking more beautiful
10. Digital eyepiece with built-in encoder, just click the encoder button
indentation length will input to machine automatically, and machine
automatically calculate the hardness value.

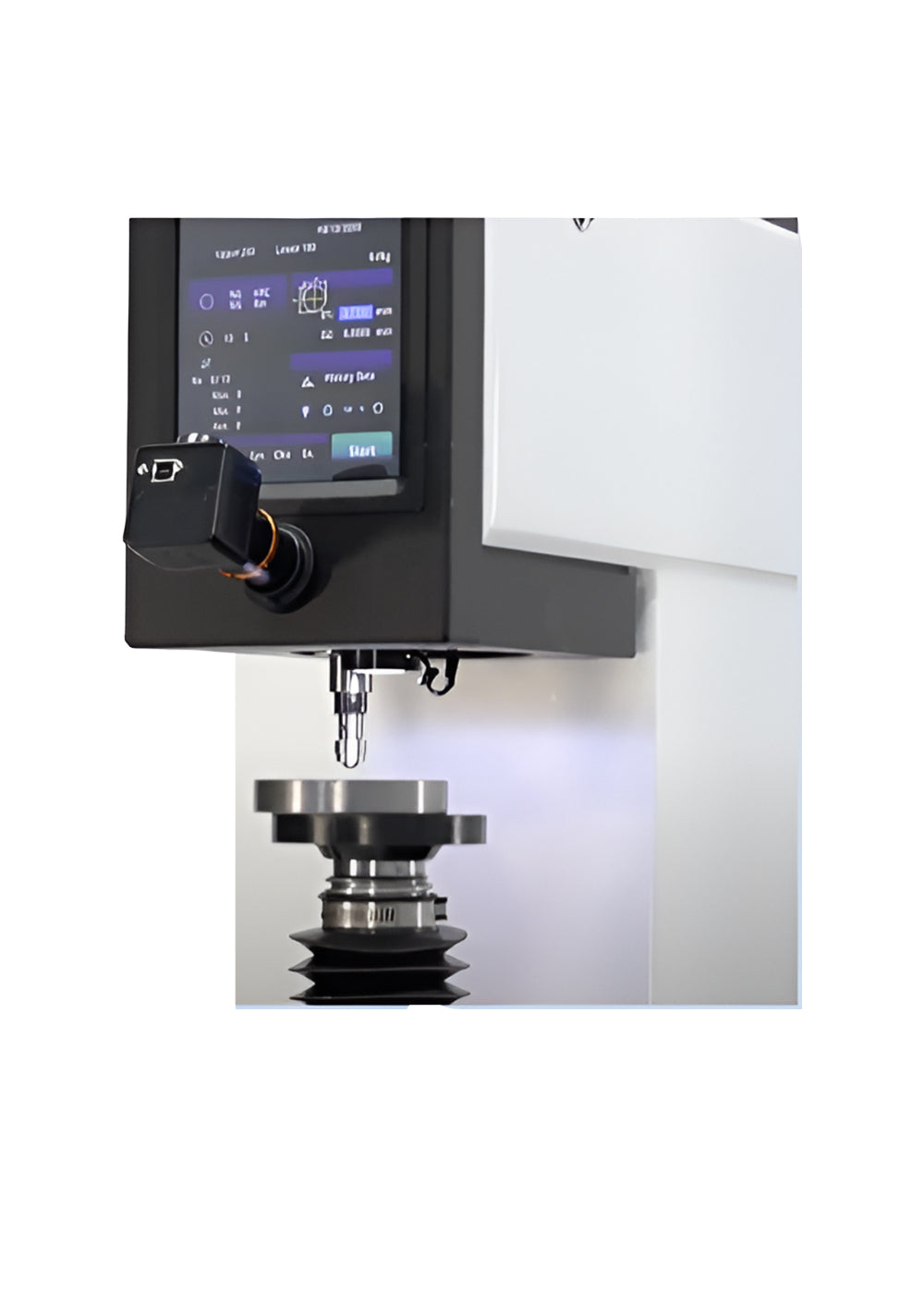

11. Touch screen interface, menu structure interface, more information display
12. Modular design, easy maintenance
13. Low noise test process, suitable work at in research labs, school, Industrial plant, etc.

Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
