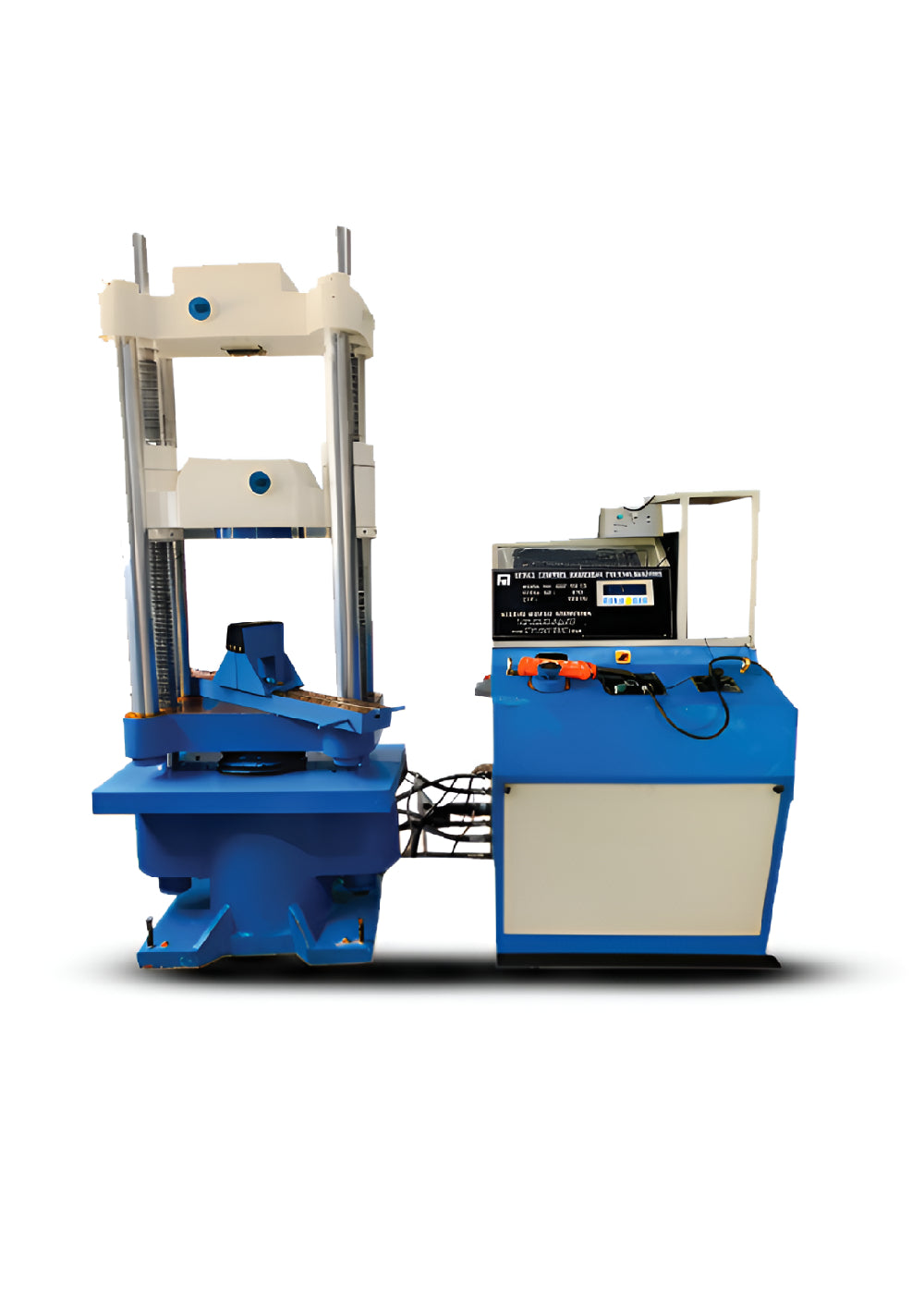

ASI Computerized Universal Testing Machine Capacity-400 KN - AMT-40E

DESCRIPTION:

The ASI Model AMT-40E is the latest, advanced computerized version of the Universal Testing Machine (UTM), designed to perform precise testing on metals and various
materials under Tension, Compression, and Bending/Transverse loads. This system operates through a Mouse and Keyboard, and all test results, such as Breaking Load and Displacement, are displayed directly on the monitor. The machine is integrated with an imported, user-friendly software offering simple on-screen instructions to guide the operator. (Standard accessories included in the mechanical version are also supplied with this model.) (Standard accessories provided in the mechanical version are also included in this model.)

Power Requirement:
Operates on 415 Volts, Three Phase, 50 Hz AC Supply.

TESTING CAPABILITIES & ACCESSORIES:

For Tension Tests:
 • Clamping jaws for round and flat specimens.
For Compression Tests:
 • Pair of hardened, ground, and polished compression platens (120 mm Ø).
 • Bottom platen with guidelines for precise specimen positioning.
For Bending/Transverse Tests:
 • Adjustable roller table with mandrel.
 • Supports various punch radii for flexibility in testing.
