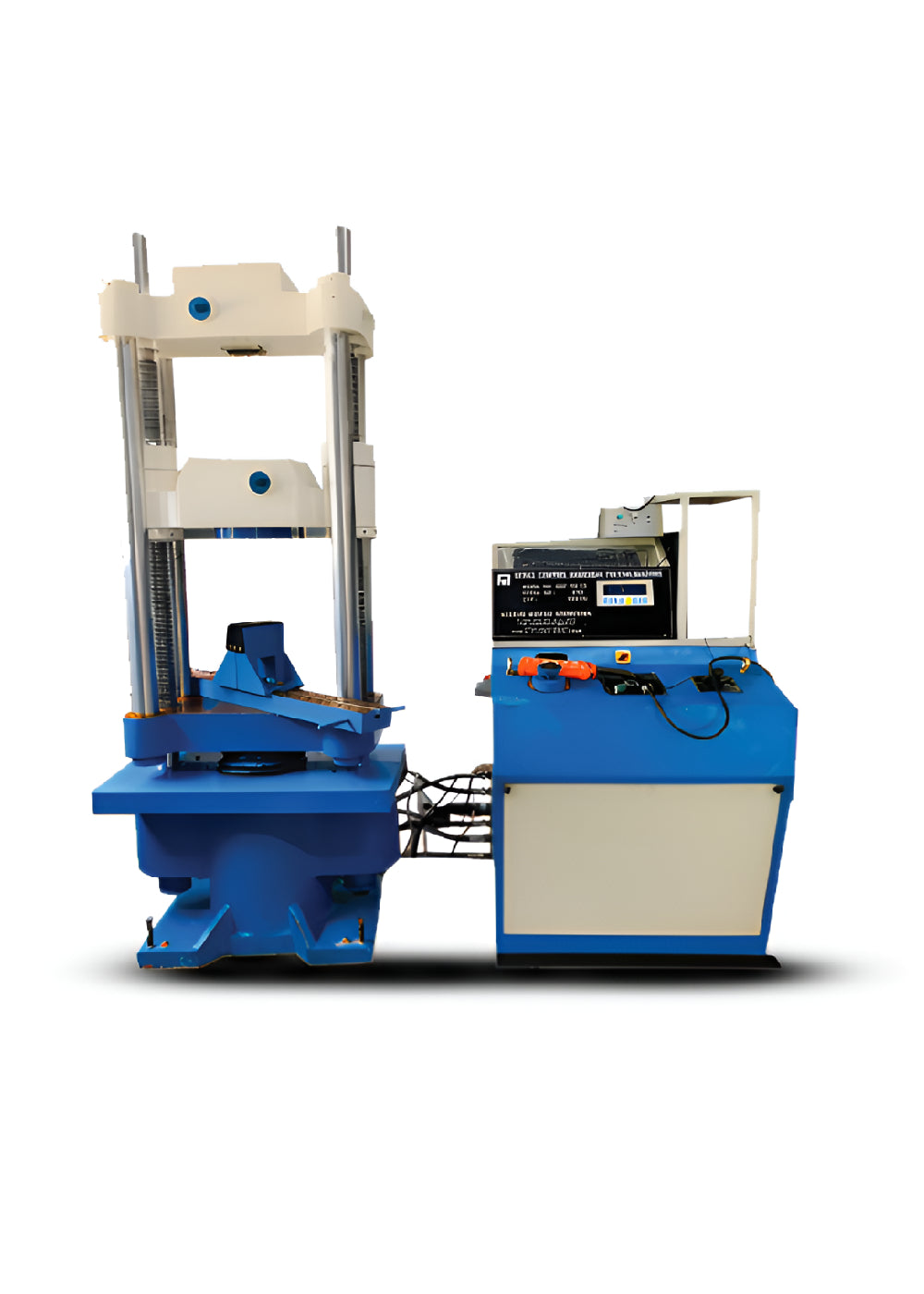

ASI Computerized Universal Testing Machine Capacity-1000 Kn - AMT-100E

DESCRIPTION:

The ASI AMT-100E is the most advanced and highly sought-after computerized Universal
Testing Machine, designed for the precise testing of metals and various other materials under Tension, Compression, and Bending/Transverse loads. The machine operates via Mouse and Keyboard, with test results such as Breaking Load and Displacement displayed directly on the monitor. The system is integrated with an imported, user-friendly software featuring easy-to-follow on-screen instructions (PC not included). This model comes complete with all standard accessories as provided in the mechanical version.

Power Requirement:
Operates on 415 Volts, Three Phase, 50 Hz AC Supply

TESTING CAPABILITIES & ACCESSORIES:

For Tension Tests:
 • Clamping jaws for round and flat specimens.
For Compression Tests:
 • Pair of hardened, ground, and polished compression platens (160 mm Ø).
 • Bottom platen marked with guidelines to ensure precise specimen alignment.
For Bending/Transverse Tests:
 • Adjustable roller table complete with mandrel.
 • Includes multiple punch radii for diverse testing applications
